Gunjet SSCAA2-60 Spray Gun 24"

Gunjet SSCAA2-60 Spray Gun 24"

Brand:
TeeJet
Weight:
2.5 lb
Item #
AA260
Skip to product information
1 of 1

Gunjet SSCAA2-60 Spray Gun 24"

Gunjet SSCAA2-60 Spray Gun 24"

Brand:
TeeJet
Weight:
2.5 lb
Item #
AA260

Regular price $163.40
Sale price $163.40 Regular price List Price: $272.33

Earn 490 points with this purchase.

View full details

Collapsible content

Product Overview

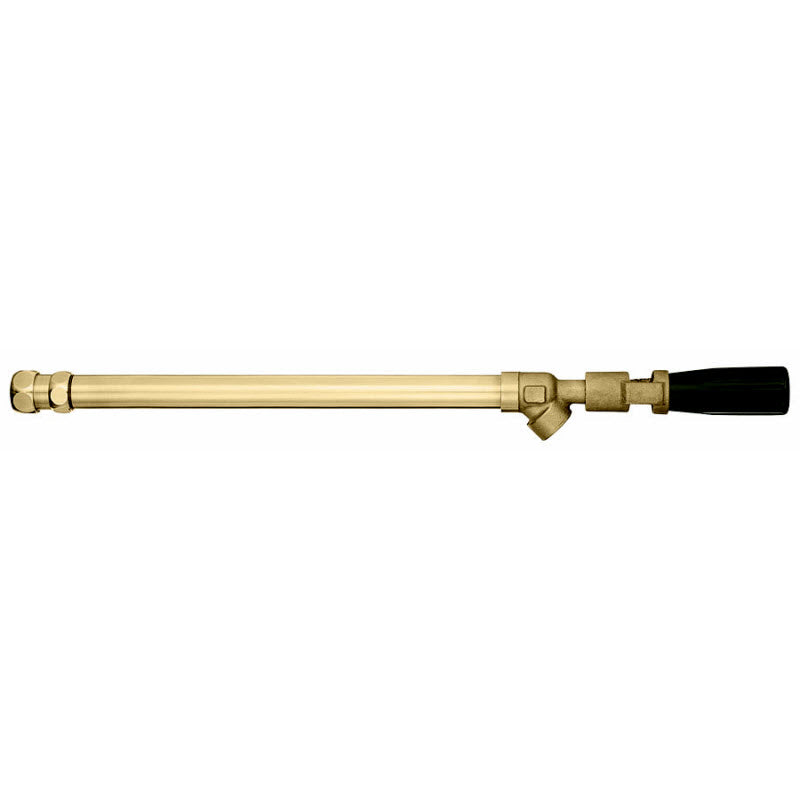

Spraying Systems Co. Gunjet SSCAA2 Spray Gun.

Length 24", weight 3.5lbs, brass, 3/4" garden hose thread (F) inlet connection. Also available in aluminum, part number SSCAA2-AL.

For spot spraying, tree spraying, livestock spraying and power washing at pressures from 30 to 800 psi. To operate spray gun, handle is rotated 360º from shutoff to maximum flow position. As handle is turned, spray changes from initial cone spray through intermediate cone spray to straight stream. Spray tips are interchangeable orifice discs made of corrosion and erosion-resistant stainless steel.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: CP5804
    • Qty Req: 1
    Our price: $8.99 List price: $14.98
  • Disc Adapter
    • Ref No: 2
    • Part No: CP6106
    • Qty Req: 1
    Our price: $2.35 List price: $3.91
  • Gasket, Buna-N
    • Ref No: 3
    • Part No: CP5805BU
    • Qty Req: 1
    Our price: $3.38 List price: $5.63
  • Orifice Insert, Stainless Steel
    • Ref No: 4
    • Part No: AYSS60
    • Qty Req: 1
    Our price: $7.93 List price: $13.21
  • Pressure Plate, Nylon (Black)
    • Ref No: 5
    • Part No: CP5800NYB
    • Qty Req: 1
    Our price: $5.89 List price: $9.82
  • Coil Spring, Stainless Steel
    • Ref No: 6
    • Part No: CP5735SS
    • Qty Req: 1
    Our price: $4.60 List price: $7.67
  • Adjusting Stem End
    • Ref No: 7
    • Part No: CP5797
    • Qty Req: 1
    Our price: $7.04 List price: $11.74
  • Spray Housing
    • Ref No: 8
    • Part No: CP5801
    • Qty Req: 1
    Our price: $8.62 List price: $14.36
  • Seat Sub-Assembly
    • Ref No: 9
    • Part No: CP5833
    • Qty Req: 1
    Our price: $3.16 List price: $5.27
  • Gasket, Nylon
    • Ref No: 10
    • Part No: CP45198NYB
    • Qty Req: 2
    Our price: $1.47 List price: $2.45
  • Guide Washer
    • Ref No: 11
    • Part No: CP5802
    • Qty Req: 1
    Our price: $4.72 List price: $7.87
  • Snap Ring, Stainless Steel
    • Ref No: 12
    • Part No: CP5814SS
    • Qty Req: 1
    Our price: $3.26 List price: $5.44
  • Adjusting Stem (AA2 Versions)
    • Ref No: 13
    • Part No: CP5796
    • Qty Req: 1
    Our price: $14.57 List price: $24.28
  • Brass Tubing (AA2 Versions)
    • Ref No: 14
    • Part No: CP5795
    • Qty Req: 1
    Our price: $24.14 List price: $40.24
  • Retaining Ring, Type 302 S.S.
    • Ref No: 15
    • Part No: CP17833302SS
    • Qty Req: 1
    Our price: $1.74 List price: $2.90
  • Inlet Body
    • Ref No: 16
    • Part No: CP5792GH
    • Qty Req: 1
    Our price: $90.60 List price: $151.00
  • Packing
    • Ref No: 17
    • Part No: CP5809LEA
    • Qty Req: 4
    Our price: $1.47 List price: $2.45
  • Screw
    • Ref No: 18
    • Part No: CP6157
    • Qty Req: 1
    Our price: $2.98 List price: $4.96
  • Adjusting Sleeve
    • Ref No: 19
    • Part No: CP5794
    • Qty Req: 1
    Our price: $38.56 List price: $64.26
  • Adjusting Sleeve Collar
    • Ref No: 20
    • Part No: CP5812INP
    • Qty Req: 1
    Our price: $5.30 List price: $8.83
  • Hand Grip Washer
    • Ref No: 21
    • Part No: CP5815IZP
    • Qty Req: 1
    Our price: $3.38 List price: $5.63
  • Hand Grip, Nylon (Black)
    • Ref No: 22
    • Part No: CP5994NY
    • Qty Req: 1
    Our price: $8.68 List price: $14.47
  • Hand Grip Nut
    • Ref No: 23
    • Part No: CP5813
    • Qty Req: 1
    Our price: $2.41 List price: $4.02
  • Garden Hose Gasket, Polyethylene
    • Ref No: 24
    • Part No: CP5808POL
    • Qty Req: 1
    Our price: $3.83 List price: $6.38
