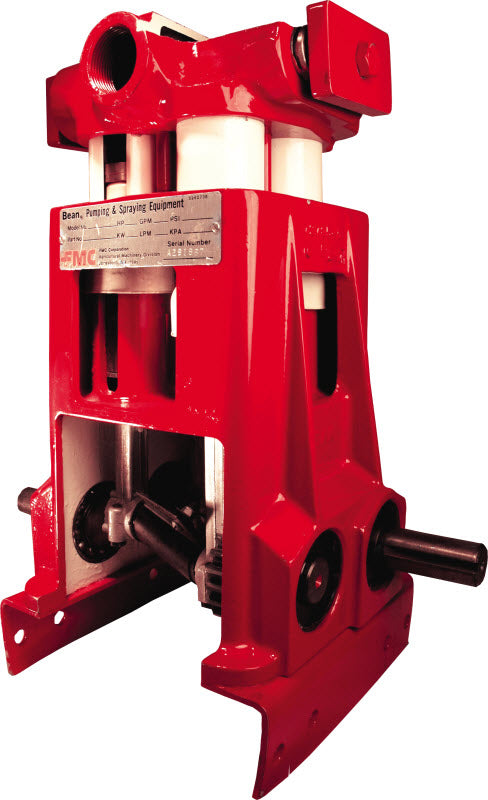

FMC John Bean R20/20 Single Shaft Pump

FMC John Bean R20/20 Single Shaft Pump

Brand:
FMC/John Bean
Weight:
95.2 lb
Item #
5284464

Regular price $3,998.00
Sale price $3,998.00 Regular price List Price: $4,248.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 11,994 points with this purchase.

View full details

Collapsible content

Product Overview

Choose this FMC John Bean R20 Single Shaft Pump for use in your sprayer assemblies. This product features a cast iron case, and you get extra durability and performance because of its non-wearing ceramic cylinders. Count on reliable functionality with its positive-action disc-type hardened stainless steel valves and oversized ball bearings. Finally, its spring-loaded seals work to ensure that oil stays in and dirt stays out of the mechanism.

Manufacturer description

All FMC pumps have cast iron cases; positive-action disc-type hardened stainless steel valves; non-wearing ceramic cylinders for long life and corrosion resistance; heavy-duty, oversized ball bearings; spring-loaded seals to keep oil in and dirt out and all working parts are totally enclosed and lubricated in an oil bath.

Features

  • Max flow: 20 gpm
  • Max pressure: 500 psi
  • Max rpm: 580
  • Port sizes: 1-1/4" FNPT inlet, 3/4" FNPT outlet
  • Pistons: 4
  • Cylinder: Ceramic, 1-5/8" ID
  • Housing: Cast iron
  • Recommended pressure regulator: 1207620
  • Recommended gas engine: 13 hp
  • Weight: 86 pounds
  • Shaft size: 1.125"

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap Screw (John Bean R5B, R10, R20-20)
    • Ref No: 1
    • Part No: 00513
    • Qty Req: 2
    Our price: $2.37 List price: $2.49
  • Valve Cover Clamp
    • Ref No: 2
    • Part No: 1255887
    • Qty Req: 2
    Our price: $28.50 List price: $30.00
  • Valve Cover
    • Ref No: 3
    • Part No: 1219614
    • Qty Req: 4
    Our price: $12.11 List price: $12.75
  • O-Ring
    • Ref No: 4
    • Part No: 1177394
    • Qty Req: 12
    Our price: $1.90 List price: $2.00
  • Valve Cage
    • Ref No: 5
    • Part No: 1219610
    • Qty Req: 8
    Our price: $11.48 List price: $12.08
  • Valve Spring & Disc Assembly
    • Ref No: 6
    • Part No: 5253499
    • Qty Req: 8
    Our price: $11.38 List price: $11.98
  • Valve Seat
    • Ref No: 7
    • Part No: 1219615
    • Qty Req: 8
    Our price: $15.87 List price: $16.70
  • Plug 1/4" Std. Galv.
    • Ref No: 8
    • Part No: 11465
    • Qty Req: 7
    Our price: $3.47 List price: $3.86

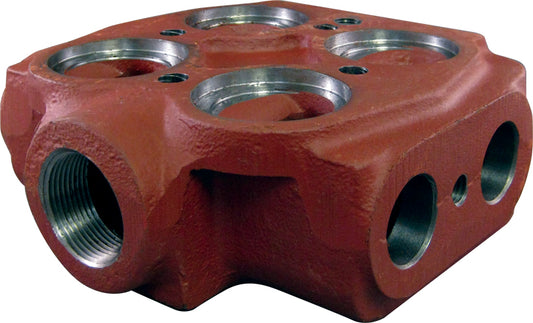

  • Valve Chamber (Bare)
    • Ref No: 9
    • Part No: 1247208
    • Qty Req: 1
    Our price: $422.75 List price: $445.00

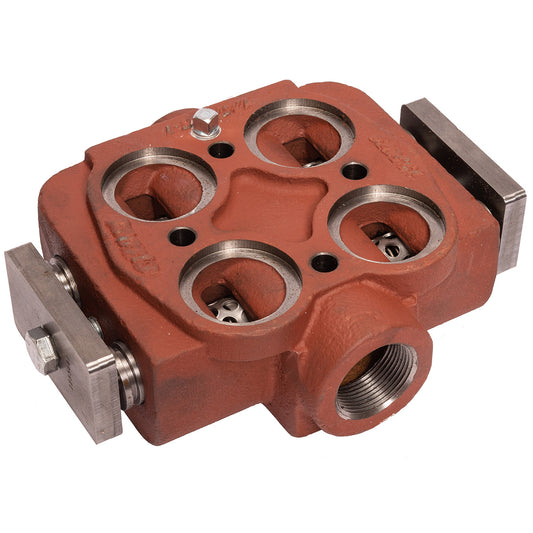

  • Valve Chamber Assembly (Loaded)
    • Ref No: 9
    • Part No: 1247235
    • Qty Req: 1
    Our price: $717.25 List price: $755.00
  • Head Bolt
    • Ref No: 10
    • Part No: 1101262
    • Qty Req: 4
    Our price: $2.25 List price: $2.49
  • Cylinder Gasket
    • Ref No: 11
    • Part No: A91684
    • Qty Req: 8
    Our price: $4.28 List price: $4.50
  • Cylinder 1-5/8"
    • Ref No: 12
    • Part No: 1241364
    • Qty Req: 4
    Our price: $104.46 List price: $109.96
  • Cup Bolt
    • Ref No: 13
    • Part No: 1284516
    • Qty Req: 4
    Our price: $3.33 List price: $3.50
  • Packing Washer
    • Ref No: 14
    • Part No: 5257218
    • Qty Req: 2
    Our price: $34.96 List price: $36.80
  • Packing (Std.)
    • Ref No: 15
    • Part No: 1251925
    • Qty Req: 2
    Our price: $27.79 List price: $46.80
  • Packing Cup Holder
    • Ref No: 16
    • Part No: 1282557
    • Qty Req: 4
    Our price: $20.00 List price: $22.43
  • O-Ring
    • Ref No: 17
    • Part No: 1101339
    • Qty Req: 4
    Our price: $1.36 List price: $1.43
  • Umbrella
    • Ref No: 18
    • Part No: 1279148
    • Qty Req: 4
    Our price: $3.33 List price: $3.50
  • Umbrella Washer
    • Ref No: 19
    • Part No: 1269388
    • Qty Req: 4
    Our price: $15.20 List price: $16.00
  • Sleeve
    • Ref No: 20
    • Part No: 1218743
    • Qty Req: 4
    Our price: $3.09 List price: $3.25
  • R20/20 Pump Case
    • Ref No: 21
    • Part No: 1273545
    • Qty Req: 1
    Our price: $878.75 List price: $925.00
  • Plug 3/4 Blk. Std.
    • Ref No: 21
    • Part No: 11471
    • Qty Req: 2
    Our price: $3.80 List price: $4.00
  • Crosshead
    • Ref No: 22
    • Part No: 1216823
    • Qty Req: 4
    Our price: $68.40 List price: $72.00
  • Wrist Pin
    • Ref No: 23
    • Part No: 1219650
    • Qty Req: 4
    Our price: $13.78 List price: $14.50
  • Connecting Rod Assembly
    • Ref No: 24
    • Part No: 68118
    • Qty Req: 4
    Our price: $156.75 List price: $165.00
  • HHCS _ - 20 x 1 lock
    • Ref No: 24
    • Part No: 1278439
    • Qty Req: 8
    Our price: $2.37 List price: $2.49
  • Bearing Insert (Pair)
    • Ref No: 25
    • Part No: 68119
    • Qty Req: 4
    Our price: $47.50 List price: $50.00
  • Crankshaft Assembly, Driven
    • Ref No: 26
    • Part No: 68117
    • Qty Req: 1
    Our price: $366.46 List price: $385.75
  • Crankshaft Assembly, Drive
    • Ref No: 27
    • Part No: 68116
    • Qty Req: 1
    Our price: $674.50 List price: $710.00
  • Snap Ring
    • Ref No: 28
    • Part No: 1118553
    • Qty Req: 4
    Our price: $19.00 List price: $20.00
  • Oil Seal
    • Ref No: 29
    • Part No: 1101095
    • Qty Req: 4
    Our price: $8.55 List price: $10.10
  • Bearing (Double-Fafnir)
    • Ref No: 30
    • Part No: 1104508
    • Qty Req: 1
    Our price: $118.75 List price: $125.00
  • Bearing (Single-Fafnir)
    • Ref No: 31
    • Part No: 1104444
    • Qty Req: 3
    Our price: $80.28 List price: $84.50
  • Oil Slinger Kit
    • Ref No: 32
    • Part No: 5283846
    • Qty Req: 2
    Our price: $62.50 List price: $62.50
  • HHCS 10-24 x 3/4
    • Ref No: 32
    • Part No: 320502
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
  • Strip Bolt
    • Ref No: 32
    • Part No: 5261980
    • Qty Req: 1
    Our price: $2.94 List price: $3.09
  • Pump Base Gasket
    • Ref No: 33
    • Part No: 1273559
    • Qty Req: 1
    Our price: $9.50 List price: $10.00
  • Pump Mounting Base
    • Ref No: 34
    • Part No: 1280633
    • Qty Req: 1
    Our price: $85.50 List price: $90.00
  • Spring Washer 3/8
    • Ref No: 35
    • Part No: 1177455
    • Qty Req: 12
    Our price: $3.80 List price: $4.00
  • Cap Screw (John Bean R10, R5B, R20-20, 130VS, 125VS)
    • Ref No: 36
    • Part No: 00286
    • Qty Req: 12
    Our price: $1.66 List price: $1.75
  • Magnetic drain plug, 1/4î pipe
    • Ref No: 37
    • Part No: 1101305
    • Qty Req: 1
    Our price: $17.10 List price: $18.00
  • Valve Repair Tool
    • Ref No: 39
    • Part No: 1250638
    • Qty Req: 1
    Our price: $65.10 List price: $68.53
