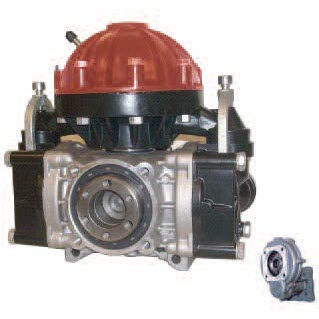

Comet P48GR Diaphragm Pump

Comet P48GR Diaphragm Pump

Brand:
Comet
Weight:
34.0 lb
Item #
P48GR
Skip to product information
1 of 1

Comet P48GR Diaphragm Pump

Comet P48GR Diaphragm Pump

Brand:
Comet
Weight:
34.0 lb
Item #
P48GR

Regular price $1,571.30
Sale price $1,571.30 Regular price List Price: $2,417.38

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,714 points with this purchase.

View full details

Collapsible content

Product Overview

13.5 gpm, 435 psi.

Twin diaphragm pump with gear reduction for gas engines with 3/4" shaft. Includes pressure regulator with manual dump lever.

Plastic (P36) or plastic coated aluminum (P48) heads with plastic manifolds for premium corrosion resistance. Great for mild acids and mold removal agents, as well as agriculture, lawn care and pest control.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Wing Nut
    • Ref No: 1
    • Part No: 12000009
    • Qty Req: 1
    Our price: $7.98 List price: $9.39
  • Wing Nut
    • Ref No: 2
    • Part No: 28000010
    • Qty Req: 1
    Our price: $35.48 List price: $41.74
  • HANDLE
    • Ref No: 2
    • Part No: 28000010h
    • Qty Req: 1
    Our price: $156.69 List price: $193.44
  • O-Ring
    • Ref No: 3
    • Part No: 12100096
    • Qty Req: 1
    Our price: $1.07 List price: $1.26
  • Manifold Tube
    • Ref No: 4
    • Part No: 32120014
    • Qty Req: 1
    Our price: $31.52 List price: $37.08
  • O-Ring
    • Ref No: 5
    • Part No: 12100045
    • Qty Req: 2
    Our price: $4.56 List price: $5.37
  • Hose Clamp
    • Ref No: 6
    • Part No: 10030036
    • Qty Req: 2
    Our price: $11.28 List price: $13.27
  • Diaphragm
    • Ref No: 7
    • Part No: 18000017
    • Qty Req: 2
    Our price: $5.81 List price: $6.83
  • 1804 1805 2257B-C RET. RING
    • Ref No: 7
    • Part No: 18000017h
    • Qty Req: 2
    Our price: $12.69 List price: $12.69
  • Manifold Fitting
    • Ref No: 8
    • Part No: 28040009
    • Qty Req: 2
    Our price: $47.21 List price: $55.54
  • Manifold Fitting
    • Ref No: 9
    • Part No: 12100027
    • Qty Req: 4
    Our price: $2.05 List price: $2.41
  • Manifold Fitting
    • Ref No: 10
    • Part No: 30090015
    • Qty Req: 4
    Our price: $41.49 List price: $48.81
  • Valve Plunger
    • Ref No: 11
    • Part No: 36040009
    • Qty Req: 4
    Our price: $6.41 List price: $7.54
  • Valve Spring
    • Ref No: 12
    • Part No: 18020015
    • Qty Req: 4
    Our price: $1.82 List price: $2.14
  • Valve Cage
    • Ref No: 13
    • Part No: 12050004
    • Qty Req: 4
    Our price: $3.04 List price: $3.58
  • Valve Assembly
    • Ref No: 14
    • Part No: 12200004
    • Qty Req: 4
    Our price: $55.34 List price: $65.11
  • Screw
    • Ref No: 15
    • Part No: 36090022
    • Qty Req: 4
    Our price: $2.27 List price: $2.67
  • U-Bolt
    • Ref No: 16
    • Part No: 04180027
    • Qty Req: 4
    Our price: $59.80 List price: $70.35
  • Pump Manifold
    • Ref No: 17
    • Part No: 32180068
    • Qty Req: 1
    Our price: $137.77 List price: $162.08
  • Gasket
    • Ref No: 18
    • Part No: 12090033
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Air Valve
    • Ref No: 19
    • Part No: 36100003
    • Qty Req: 1
    Our price: $16.16 List price: $19.01
  • Screw
    • Ref No: 20
    • Part No: 36070056
    • Qty Req: 8
    Our price: $2.51 List price: $2.95
  • Washer
    • Ref No: 21
    • Part No: 28110016
    • Qty Req: 8
    Our price: $1.49 List price: $1.75
  • Pulsation Dampner Body
    • Ref No: 22
    • Part No: 00030016
    • Qty Req: 1
    Our price: $128.25 List price: $150.88
  • Diaphragm
    • Ref No: 23
    • Part No: 18000035
    • Qty Req: 1
    Our price: $40.55 List price: $47.70
  • Diaphragm Support Cap
    • Ref No: 24
    • Part No: 04600007
    • Qty Req: 1
    Our price: $28.27 List price: $33.26
  • Pulsation Dampner Body
    • Ref No: 25
    • Part No: 00020020
    • Qty Req: 1
    Our price: $247.42 List price: $291.08
  • Pump Manifold
    • Ref No: 27
    • Part No: 32180066
    • Qty Req: 1
    Our price: $137.77 List price: $162.08
  • Washer
    • Ref No: 28
    • Part No: 28110098
    • Qty Req: 8
    Our price: $0.48 List price: $0.57
  • Screw
    • Ref No: 29
    • Part No: 36070223
    • Qty Req: 8
    Our price: $2.88 List price: $3.39
  • Oil Viewer
    • Ref No: 30
    • Part No: 32010027
    • Qty Req: 1
    Our price: $4.71 List price: $5.54
  • O-Ring
    • Ref No: 31
    • Part No: 12100048
    • Qty Req: 1
    Our price: $0.90 List price: $1.06
  • Pump Crankcase
    • Ref No: 32
    • Part No: 04030023
    • Qty Req: 1
    Our price: $391.20 List price: $460.23
  • Connecting Rod Set
    • Ref No: 33
    • Part No: 02050018
    • Qty Req: 1
    Our price: $121.40 List price: $142.82
  • Piston
    • Ref No: 34
    • Part No: 24090015
    • Qty Req: 2
    Our price: $87.93 List price: $103.45
  • Piston Sleeve
    • Ref No: 35
    • Part No: 04000021
    • Qty Req: 2
    Our price: $151.50 List price: $178.23
  • Diaphragm (Buna)
    • Ref No: 36
    • Part No: 18000002
    • Qty Req: 2
    Our price: $27.93 List price: $32.86
  • Diaphragm (Desmopan)
    • Ref No: 36
    • Part No: 18000059
    • Qty Req: 2
    Our price: $29.16 List price: $34.30
  • Diaphragm (Viton)
    • Ref No: 36
    • Part No: 18000032
    • Qty Req: 2
    Our price: $273.43 List price: $321.68
  • Washer
    • Ref No: 37
    • Part No: 06020010
    • Qty Req: 2
    Our price: $5.65 List price: $6.65
  • Diaphragm Holder Screw
    • Ref No: 38
    • Part No: 36050005
    • Qty Req: 2
    Our price: $26.73 List price: $31.45
  • Connecting Rod Pin
    • Ref No: 39
    • Part No: 30110001
    • Qty Req: 2
    Our price: $19.03 List price: $22.39
  • Retaining Clip
    • Ref No: 40
    • Part No: 30200001
    • Qty Req: 4
    Our price: $0.44 List price: $0.52
  • 5300X ALLEN WRENCH(OPT)
    • Ref No: 40
    • Part No: 30200001h
    • Qty Req: 4
    Our price: $1.10 List price: $1.36
  • Ball Bearing
    • Ref No: 41
    • Part No: 04380023
    • Qty Req: 1
    Our price: $244.74 List price: $287.93
  • Connecting Rod Washer
    • Ref No: 42
    • Part No: 28130017
    • Qty Req: 1
    Our price: $20.95 List price: $24.65
  • Spacer
    • Ref No: 43
    • Part No: 06010211
    • Qty Req: 1
    Our price: $29.50 List price: $34.70
  • Connecting Rod Ring
    • Ref No: 44
    • Part No: 00100008
    • Qty Req: 2
    Our price: $26.47 List price: $31.14
  • Roller Bearing
    • Ref No: 45
    • Part No: 04370027
    • Qty Req: 2
    Our price: $69.78 List price: $82.09
  • Connecting Rod Washer
    • Ref No: 46
    • Part No: 28130019
    • Qty Req: 1
    Our price: $29.55 List price: $34.77
  • Snap Ring
    • Ref No: 47
    • Part No: 30190001
    • Qty Req: 1
    Our price: $4.53 List price: $5.33
  • Ball Bearing
    • Ref No: 48
    • Part No: 04380001
    • Qty Req: 1
    Our price: $179.27 List price: $210.91
  • Non-Throughshaft
    • Ref No: 49
    • Part No: 00010017
    • Qty Req: 1
    Our price: $456.35 List price: $536.88
  • Oil Seal
    • Ref No: 50
    • Part No: 00190001
    • Qty Req: 1
    Our price: $28.73 List price: $33.80
  • Pulsation Dampner
    • Ref No: 53
    • Part No: 01020004
    • Qty Req: 1
    Our price: $492.95 List price: $579.94
