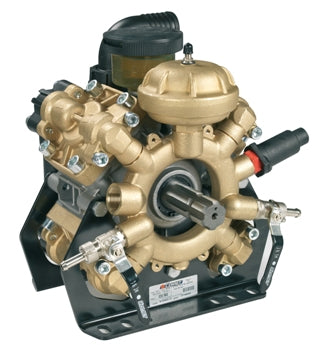

Comet IDS960 Diaphragm Pump

Comet IDS960 Diaphragm Pump

Brand:
Comet
Weight:
67.0 lb
Item #
IDS960
Skip to product information
1 of 1

Comet IDS960 Diaphragm Pump

Comet IDS960 Diaphragm Pump

Brand:
Comet
Weight:
67.0 lb
Item #
IDS960

Regular price $2,572.39
Sale price $2,572.39 Regular price List Price: $4,287.32

Earn 7,717 points with this purchase.

View full details

Collapsible content

Product Overview

24 gpm, 725 psi.

Four diaphragm pump with 1 3/8" male 6 spline PTO shaft on front and universal drive face on back. Includes mounting rails.

High pressure pumps with brass heads and bronze external manifolds for excellent corrosion resistance in high pressure applications such as orchard, vegetable and vineyard spraying, de-icing and circuit board washing.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: 04020143
    • Qty Req: 1
    Our price: $11.29 List price: $13.28
  • O-Ring
    • Ref No: 2
    • Part No: 12100373
    • Qty Req: 1
    Our price: $2.04 List price: $2.40
  • Oil Bowl
    • Ref No: 3
    • Part No: 04210012
    • Qty Req: 1
    Our price: $62.13 List price: $73.09
  • O-Ring
    • Ref No: 4
    • Part No: 12100002
    • Qty Req: 2
    Our price: $0.92 List price: $1.08
  • Oil Sight Glass
    • Ref No: 5
    • Part No: 12080015
    • Qty Req: 1
    Our price: $72.10 List price: $84.82
  • Snap Ring
    • Ref No: 6
    • Part No: 30200002
    • Qty Req: 1
    Our price: $6.39 List price: $7.52
  • O-Ring
    • Ref No: 7
    • Part No: 00090345
    • Qty Req: 1
    Our price: $16.38 List price: $19.27
  • Oil Seal
    • Ref No: 8
    • Part No: 00190125
    • Qty Req: 1
    Our price: $29.20 List price: $34.35
  • O-Ring
    • Ref No: 9
    • Part No: 12100225
    • Qty Req: 1
    Our price: $3.88 List price: $4.57
  • Shaft, 1-3/8" M-M
    • Ref No: 11
    • Part No: 00010558
    • Qty Req: 1
    Our price: $507.06 List price: $596.54
  • Ball Bearing
    • Ref No: 10
    • Part No: 04380041
    • Qty Req: 1
    Our price: $428.27 List price: $503.85
  • Connecting Rod Ring
    • Ref No: 12
    • Part No: 00100021
    • Qty Req: 2
    Our price: $40.35 List price: $47.47
  • Ball Bearing
    • Ref No: 13
    • Part No: 04380012
    • Qty Req: 1
    Our price: $153.37 List price: $180.44
  • Oil Seal
    • Ref No: 15
    • Part No: 00190073
    • Qty Req: 1
    Our price: $22.42 List price: $26.38
  • Pump Crankcase
    • Ref No: 14
    • Part No: 04030171
    • Qty Req: 1
    Our price: $383.22 List price: $450.85
  • Retaining Ring
    • Ref No: 16
    • Part No: 30200013
    • Qty Req: 1
    Our price: $3.70 List price: $4.35
  • Connecting Rod Assembly (Set of 4)
    • Ref No: 17
    • Part No: 02050073
    • Qty Req: 1
    Our price: $580.37 List price: $682.79
  • Piston
    • Ref No: 18
    • Part No: 24090067
    • Qty Req: 4
    Our price: $87.93 List price: $103.45
  • Pin
    • Ref No: 19
    • Part No: 30110021
    • Qty Req: 4
    Our price: $14.96 List price: $17.60
  • Snap Ring
    • Ref No: 20
    • Part No: 30200029
    • Qty Req: 8
    Our price: $0.44 List price: $0.52
  • Compression Ring
    • Ref No: 21
    • Part No: 00200008
    • Qty Req: 4
    Our price: $11.75 List price: $13.82
  • Piston Sleeve
    • Ref No: 22
    • Part No: 04000090
    • Qty Req: 4
    Our price: $168.77 List price: $198.55
  • Diaphragm, Buna
    • Ref No: 23
    • Part No: 18000088
    • Qty Req: 4
    Our price: $26.65 List price: $31.35
  • Diaphragm, Desmopan
    • Ref No: 23
    • Part No: 18000096
    • Qty Req: 4
    Our price: $37.32 List price: $43.91
  • Diaphragm, Viton
    • Ref No: 23
    • Part No: 18000095
    • Qty Req: 4
    Our price: $154.79 List price: $182.10
  • Washer
    • Ref No: 24
    • Part No: 06020010
    • Qty Req: 4
    Our price: $5.65 List price: $6.65
  • Diaphragm Holder Screw
    • Ref No: 25
    • Part No: 36050005
    • Qty Req: 4
    Our price: $26.73 List price: $31.45
  • Pump Head
    • Ref No: 26
    • Part No: 32180378
    • Qty Req: 4
    Our price: $522.16 List price: $614.31
  • Screw
    • Ref No: 27
    • Part No: 36090189
    • Qty Req: 0
    Our price: $4.92 List price: $5.79
  • O-Ring
    • Ref No: 28
    • Part No: 12100044
    • Qty Req: 1
    Our price: $0.60 List price: $0.70
  • Plug
    • Ref No: 29
    • Part No: 32000010
    • Qty Req: 1
    Our price: $20.74 List price: $24.40
  • Pump Mounting Bracket
    • Ref No: 30
    • Part No: 24000109
    • Qty Req: 2
    Our price: $116.08 List price: $136.57
  • Screw
    • Ref No: 31
    • Part No: 36070220
    • Qty Req: 6
    Our price: $1.84 List price: $2.16
  • Gasket
    • Ref No: 34
    • Part No: 12090033
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Air Valve
    • Ref No: 35
    • Part No: 36100003
    • Qty Req: 1
    Our price: $16.16 List price: $19.01
  • Pressure Accumulator
    • Ref No: 36
    • Part No: 00030038
    • Qty Req: 1
    Our price: $287.11 List price: $337.78
  • Accumulator Diaphragm, Comet Diaphragm Pump MC25 / MP20/30
    • Ref No: 37
    • Part No: 18000033
    • Qty Req: 1
    Our price: $19.58 List price: $23.03
  • Diaphragm Support Cap
    • Ref No: 38
    • Part No: 04600040
    • Qty Req: 1
    Our price: $11.65 List price: $13.70
  • Pressure Accumulator
    • Ref No: 39
    • Part No: 00020038
    • Qty Req: 1
    Our price: $226.16 List price: $266.07
  • O-Ring
    • Ref No: 40
    • Part No: 12100599
    • Qty Req: 1
    Our price: $4.31 List price: $5.07
  • Pressure Accumulator Kit
    • Ref No: 41
    • Part No: 12250029
    • Qty Req: 1
    Our price: $497.94 List price: $585.81
  • Manifold
    • Ref No: 42
    • Part No: 04150063
    • Qty Req: 1
    Our price: $816.14 List price: $960.16
  • Safety Valve
    • Ref No: 43
    • Part No: 12190041
    • Qty Req: 1
    Our price: $65.78 List price: $77.39
  • Hose Barb
    • Ref No: 44
    • Part No: 28020018
    • Qty Req: 1
    Our price: $7.61 List price: $8.95
  • Wing Nut
    • Ref No: 45
    • Part No: 12000038
    • Qty Req: 1
    Our price: $8.11 List price: $9.54
  • Gasket
    • Ref No: 46
    • Part No: 12090013
    • Qty Req: 1
    Our price: $0.90 List price: $1.06
  • Left Tap
    • Ref No: 47
    • Part No: 28260031
    • Qty Req: 1
    Our price: $82.39 List price: $96.93
  • Left Tap
    • Ref No: 48
    • Part No: 12140019
    • Qty Req: 1
    Our price: $93.42 List price: $109.90
  • O-Ring
    • Ref No: 54
    • Part No: 12100441
    • Qty Req: 1
    Our price: $0.40 List price: $0.47
  • Complete Right Tap
    • Ref No: 53
    • Part No: 12140018
    • Qty Req: 1
    Our price: $80.87 List price: $95.14
  • Right Tap
    • Ref No: 52
    • Part No: 28260032
    • Qty Req: 1
    Our price: $74.89 List price: $88.11
  • O-Ring
    • Ref No: 56
    • Part No: 12100003
    • Qty Req: 4
    Our price: $1.00 List price: $1.18
  • Screw
    • Ref No: 57
    • Part No: 36090021
    • Qty Req: 8
    Our price: $2.84 List price: $3.34
  • Fitting
    • Ref No: 58
    • Part No: 28060032
    • Qty Req: 4
    Our price: $122.45 List price: $144.06
  • Valve Cage
    • Ref No: 59
    • Part No: 12050029
    • Qty Req: 8
    Our price: $2.20 List price: $2.59
  • Valve Spring
    • Ref No: 60
    • Part No: 18020015
    • Qty Req: 8
    Our price: $1.82 List price: $2.14
  • Valve Plate
    • Ref No: 61
    • Part No: 36040023
    • Qty Req: 8
    Our price: $3.21 List price: $3.78
  • Valve Seat
    • Ref No: 62
    • Part No: 30090115
    • Qty Req: 8
    Our price: $18.65 List price: $21.94
  • O-Ring
    • Ref No: 63
    • Part No: 12100487
    • Qty Req: 8
    Our price: $1.70 List price: $2.00
  • Check Valve Assembly
    • Ref No: 64
    • Part No: 12200076
    • Qty Req: 8
    Our price: $51.21 List price: $60.25
  • Elbow
    • Ref No: 65
    • Part No: 28010055
    • Qty Req: 1
    Our price: $32.52 List price: $38.26
  • Wing Nut
    • Ref No: 66
    • Part No: 12000054
    • Qty Req: 1
    Our price: $14.14 List price: $16.63
  • O-Ring
    • Ref No: 67
    • Part No: 12100180
    • Qty Req: 1
    Our price: $0.77 List price: $0.90
  • Manifold Tube
    • Ref No: 68
    • Part No: 32120040
    • Qty Req: 1
    Our price: $16.62 List price: $19.55
  • Suction Hose Tail
    • Ref No: 69
    • Part No: 28060031
    • Qty Req: 4
    Our price: $24.61 List price: $28.95
  • Washer
    • Ref No: 70
    • Part No: 28110002
    • Qty Req: 8
    Our price: $0.60 List price: $0.71
  • Screw
    • Ref No: 71
    • Part No: 36090050
    • Qty Req: 8
    Our price: $3.42 List price: $4.02
  • O-Ring
    • Ref No: 72
    • Part No: 12100101
    • Qty Req: 16
    Our price: $1.58 List price: $1.86
  • Suction Tube
    • Ref No: 73
    • Part No: 32130026
    • Qty Req: 3
    Our price: $85.72 List price: $100.85
