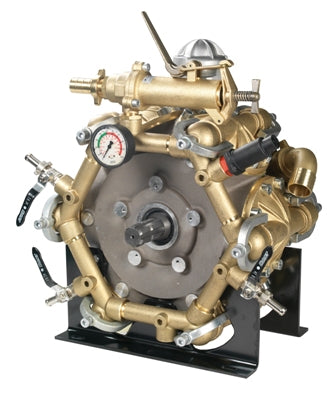

Comet IDS2200 Diaphragm Pump (Brass)

Comet IDS2200 Diaphragm Pump (Brass)

Brand:
Comet
Weight:
168.0 lb
Item #
IDS2200
1 1

Comet IDS2200 Diaphragm Pump (Brass)

Comet IDS2200 Diaphragm Pump (Brass)

Brand:
Comet
Weight:
168.0 lb
Item #
IDS2200

$6,453.39
$6,453.39 List Price: $10,755.65

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 19,360 points with this purchase.

See Details

View full details

Product Overview

55 gpm, 725 psi.

Six diaphragm pump with 1 3/8" male 6 spline PTO shaft on both sides.

High pressure pumps with brass heads and bronze external manifolds for excellent corrosion resistance in high pressure applications such as orchard, vegetable and vineyard spraying, de-icing and circuit board washing.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cover
    • Ref No: 1
    • Part No: 04020001
    • Qty Req: 1
    Our price: $32.60 List price: $38.35
  • Diaphragm
    • Ref No: 2
    • Part No: 18000001
    • Qty Req: 1
    Our price: $6.51 List price: $7.66
  • Oil Cup
    • Ref No: 3
    • Part No: 04210001
    • Qty Req: 1
    Our price: $60.90 List price: $71.65
  • O-Ring
    • Ref No: 4
    • Part No: 12100067
    • Qty Req: 1
    Our price: $2.98 List price: $3.50
  • Oil Bowl
    • Ref No: 5
    • Part No: 18090006
    • Qty Req: 1
    Our price: $26.56 List price: $31.25
  • O-Ring
    • Ref No: 6
    • Part No: 12100213
    • Qty Req: 1
    Our price: $3.87 List price: $4.55
  • Cover
    • Ref No: 7
    • Part No: 04020288
    • Qty Req: 1
    Our price: $97.99 List price: $115.28
  • O-Ring
    • Ref No: 8
    • Part No: 12100002
    • Qty Req: 1
    Our price: $0.92 List price: $1.08
  • Oil Cup Assembly
    • Ref No: 9
    • Part No: 12080019
    • Qty Req: 1
    Our price: $191.80 List price: $225.65
  • Reducer
    • Ref No: 10
    • Part No: 28250009
    • Qty Req: 1
    Our price: $55.96 List price: $65.84
  • B&G Aerosol Delivery Unit Kit (Blue)
    • Ref No: 12
    • Part No: 24000050
    • Qty Req: 2
    Our price: $145.42 List price: $171.08
  • Oil Seal (IDS-2200, IDS-2600)
    • Ref No: 13
    • Part No: 00190025
    • Qty Req: 1
    Our price: $15.81 List price: $18.60
  • Snap Ring
    • Ref No: 14
    • Part No: 30200011
    • Qty Req: 1
    Our price: $4.36 List price: $5.13
  • Screw
    • Ref No: 15
    • Part No: 36070220
    • Qty Req: 6
    Our price: $1.84 List price: $2.16
  • Washer
    • Ref No: 16
    • Part No: 28190001
    • Qty Req: 6
    Our price: $0.91 List price: $1.07
  • Hinge Bearing
    • Ref No: 17
    • Part No: 04400026
    • Qty Req: 1
    Our price: $636.28 List price: $748.57
  • Connecting Rod Washer
    • Ref No: 18
    • Part No: 28130077
    • Qty Req: 1
    Our price: $129.64 List price: $152.52
  • Connecting Rod Ring
    • Ref No: 19
    • Part No: 00100004
    • Qty Req: 2
    Our price: $94.75 List price: $111.47
  • Roller Bearing
    • Ref No: 20
    • Part No: 04370006
    • Qty Req: 2
    Our price: $820.23 List price: $964.98
  • Shaft
    • Ref No: 21
    • Part No: 00010108
    • Qty Req: 1
    Our price: $1,118.18 List price: $1,315.51
  • Connecting Rod Washer
    • Ref No: 22
    • Part No: 28130076
    • Qty Req: 1
    Our price: $129.64 List price: $152.52
  • Ball Bearing
    • Ref No: 23
    • Part No: 04380008
    • Qty Req: 1
    Our price: $620.75 List price: $730.29
  • Oil Seal (IDS-2200, IDS-2600)
    • Ref No: 24
    • Part No: 00190028
    • Qty Req: 1
    Our price: $17.00 List price: $20.00
  • O-Ring
    • Ref No: 25
    • Part No: 12100092
    • Qty Req: 1
    Our price: $8.59 List price: $10.10
  • Flange
    • Ref No: 26
    • Part No: 10040007
    • Qty Req: 1
    Our price: $321.24 List price: $377.93
  • Washer
    • Ref No: 27
    • Part No: 28110098
    • Qty Req: 6
    Our price: $0.48 List price: $0.57
  • Screw
    • Ref No: 28
    • Part No: 36070226
    • Qty Req: 6
    Our price: $3.11 List price: $3.66
  • Pump Crankcase
    • Ref No: 30
    • Part No: 04030143
    • Qty Req: 1
    Our price: $3,785.87 List price: $4,453.97
  • Connecting Rod Assembly (Set)
    • Ref No: 31
    • Part No: 02050010
    • Qty Req: 1
    Our price: $1,977.30 List price: $2,326.24
  • Piston
    • Ref No: 32
    • Part No: 24090068
    • Qty Req: 6
    Our price: $88.70 List price: $104.35
  • Piston Ring
    • Ref No: 33
    • Part No: 00200001
    • Qty Req: 6
    Our price: $13.90 List price: $16.35
  • Piston Sleeve
    • Ref No: 34
    • Part No: 04000017
    • Qty Req: 6
    Our price: $226.11 List price: $266.01
  • Diaphragm (Buna)
    • Ref No: 35
    • Part No: 18000012
    • Qty Req: 6
    Our price: $40.55 List price: $47.70
  • Diaphragm (Desmopan)
    • Ref No: 35
    • Part No: 18000098
    • Qty Req: 6
    Our price: $49.87 List price: $58.67
  • Diaphragm (Viton)
    • Ref No: 35
    • Part No: 18000031
    • Qty Req: 6
    Our price: $419.43 List price: $493.45
  • Pump Head
    • Ref No: 38
    • Part No: 32180009
    • Qty Req: 6
    Our price: $758.78 List price: $892.68
  • Screw
    • Ref No: 39
    • Part No: 36090015
    • Qty Req: 48
    Our price: $4.05 List price: $4.76
  • Connecting Rod Pin
    • Ref No: 40
    • Part No: 30110003
    • Qty Req: 6
    Our price: $24.62 List price: $28.96
  • Snap Ring
    • Ref No: 41
    • Part No: 30200006
    • Qty Req: 12
    Our price: $0.60 List price: $0.70
  • Valve Cage
    • Ref No: 67
    • Part No: 12050005
    • Qty Req: 12
    Our price: $3.62 List price: $4.26
  • Valve Spring
    • Ref No: 68
    • Part No: 18020015
    • Qty Req: 12
    Our price: $1.82 List price: $2.14
  • Valve Plunger
    • Ref No: 69
    • Part No: 36040009
    • Qty Req: 12
    Our price: $6.41 List price: $7.54
  • Valve Seat
    • Ref No: 70
    • Part No: 30090123
    • Qty Req: 12
    Our price: $69.51 List price: $81.78
  • Gasket
    • Ref No: 71
    • Part No: 12090043
    • Qty Req: 12
    Our price: $2.87 List price: $3.38
  • Valve Assembly
    • Ref No: 72
    • Part No: 12200010
    • Qty Req: 12
    Our price: $70.51 List price: $82.95
  • Fitting
    • Ref No: 73
    • Part No: 28040008
    • Qty Req: 6
    Our price: $188.44 List price: $221.69
  • O-Ring
    • Ref No: 74
    • Part No: 12100096
    • Qty Req: 12
    Our price: $1.07 List price: $1.26
  • Manifold Tube
    • Ref No: 75
    • Part No: 32130004
    • Qty Req: 4
    Our price: $81.58 List price: $95.98
  • Manifold Tube
    • Ref No: 76
    • Part No: 32120036
    • Qty Req: 2
    Our price: $764.12 List price: $898.96
  • Gasket
    • Ref No: 77
    • Part No: 12090126
    • Qty Req: 2
    Our price: $3.09 List price: $3.63
  • Wing Nut
    • Ref No: 78
    • Part No: 12000058
    • Qty Req: 2
    Our price: $36.65 List price: $43.12
  • Elbow
    • Ref No: 79
    • Part No: 28010071
    • Qty Req: 2
    Our price: $150.98 List price: $177.62
  • U-Bolt
    • Ref No: 80
    • Part No: 04180004
    • Qty Req: 12
    Our price: $63.04 List price: $74.16
  • Screw
    • Ref No: 81
    • Part No: 36090160
    • Qty Req: 12
    Our price: $2.52 List price: $2.97
  • Hose Adapter
    • Ref No: 82
    • Part No: 28030442
    • Qty Req: 1
    Our price: $32.30 List price: $38.00
  • O-Ring
    • Ref No: 83
    • Part No: 12100030
    • Qty Req: 2
    Our price: $1.84 List price: $2.17
  • Wing Nut
    • Ref No: 85
    • Part No: 12000033
    • Qty Req: 1
    Our price: $16.87 List price: $19.85
  • Hose Barb
    • Ref No: 86
    • Part No: 28020020
    • Qty Req: 2
    Our price: $8.10 List price: $9.53
  • Wing Nut
    • Ref No: 87
    • Part No: 12000038
    • Qty Req: 2
    Our price: $8.11 List price: $9.54
  • Gasket
    • Ref No: 88
    • Part No: 12090013
    • Qty Req: 2
    Our price: $0.90 List price: $1.06
  • Left Tap
    • Ref No: 89
    • Part No: 28260031
    • Qty Req: 2
    Our price: $82.39 List price: $96.93
  • Complete Tap/Ball Valve
    • Ref No: 90
    • Part No: 12140016
    • Qty Req: 2
    Our price: $95.23 List price: $112.03
  • Right Tap
    • Ref No: 94
    • Part No: 28260032
    • Qty Req: 1
    Our price: $74.89 List price: $88.11
  • Complete Right Tap
    • Ref No: 95
    • Part No: 12140017
    • Qty Req: 1
    Our price: $95.23 List price: $112.03
  • Pressure Gauge
    • Ref No: 96
    • Part No: 18160122
    • Qty Req: 1
    Our price: $205.27 List price: $241.49
  • Manifold Tube
    • Ref No: 97
    • Part No: 32140037
    • Qty Req: 1
    Our price: $579.21 List price: $681.42
  • O-Ring
    • Ref No: 98
    • Part No: 12100020
    • Qty Req: 6
    Our price: $1.03 List price: $1.21
  • Manifold Tube
    • Ref No: 99
    • Part No: 32140020
    • Qty Req: 5
    Our price: $527.99 List price: $621.17
  • Safety Valve
    • Ref No: 100
    • Part No: 12190041
    • Qty Req: 1
    Our price: $65.78 List price: $77.39
  • Plug
    • Ref No: 101
    • Part No: 32000011
    • Qty Req: 1
    Our price: $19.13 List price: $22.51
  • O-Ring
    • Ref No: 104
    • Part No: 12100209
    • Qty Req: 1
    Our price: $1.23 List price: $1.45
  • Plug
    • Ref No: 105
    • Part No: 32000001
    • Qty Req: 1
    Our price: $8.25 List price: $9.70
  • Disc
    • Ref No: 106
    • Part No: 06020011
    • Qty Req: 6
    Our price: $68.96 List price: $81.13
  • Bolt
    • Ref No: 107
    • Part No: 24190042
    • Qty Req: 6
    Our price: $5.12 List price: $6.02
