Comet APS96 Diaphragm Pump

Comet APS96 Diaphragm Pump

Brand:
Comet
Weight:
50.0 lb
Item #
APS96

Regular price $1,675.50
Sale price $1,675.50 Regular price List Price: $2,577.69

Earn 5,027 points with this purchase.

View full details

Collapsible content

Product Overview

Right in the middle of Comet's ISO 9001 certified line of high-pressure diaphragm pumps is the APS96. This premium pump can be used in just about any type of outdoor spraying application. Regular maintenance according to the manufacturer's instructions can extend the life of the entire assembly. Replacement parts are available for individual purchase.

Manufacturer description

Four diaphragm pump with pulsation dampener. High pressure internal manifold pumps with anodized aluminum heads for less leak points. Great for lawn care, pest control, hydrostatic testing and agricultural spraying.

Features

  • Max flow: 24 gpm
  • Max pressure: 725 psi
  • Max rpm: 550
  • Port sizes: 1-1/2" HB inlet, 1/2" HB outlet
  • Shaft: Universal drive face to attach gearbox or shaft kit
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Buna standard Desmopan® and Viton® available
  • Housing: Anodized aluminum
  • Recommended pressure regulator: 1204/205 or 1215/315

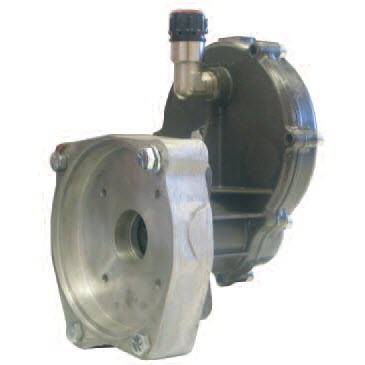

  • Recommended gearbox: 5005/221 with 1" hollow shaft for mounting on 8-13 hp gas engines
  • Max fluid temperature: 140°F
  • Weight: 50 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Oil Seal
    • Ref No: 1
    • Part No: 00190083
    • Qty Req: 1
    Our price: $13.90 List price: $16.35
  • O-Ring
    • Ref No: 2
    • Part No: 12100347
    • Qty Req: 1
    Our price: $1.84 List price: $2.17
  • O-Ring
    • Ref No: 3
    • Part No: 12100345
    • Qty Req: 1
    Our price: $4.80 List price: $5.65
  • O-Ring
    • Ref No: 4
    • Part No: 12100349
    • Qty Req: 1
    Our price: $4.52 List price: $5.32
  • Screw
    • Ref No: 5
    • Part No: 36090006
    • Qty Req: 6
    Our price: $1.79 List price: $2.10
  • Manifold Flange
    • Ref No: 6
    • Part No: 10090095
    • Qty Req: 1
    Our price: $199.88 List price: $266.50
  • Plug
    • Ref No: 7
    • Part No: 32000019
    • Qty Req: 1
    Our price: $9.77 List price: $11.49
  • Safety Valve
    • Ref No: 8
    • Part No: 121934
    • Qty Req: 1
    Our price: $67.48 List price: $79.39
  • Ball Valve
    • Ref No: 9
    • Part No: 121415
    • Qty Req: 1
    Our price: $89.08 List price: $104.80
  • Wing Nut
    • Ref No: 10
    • Part No: 12000038
    • Qty Req: 1
    Our price: $8.11 List price: $9.54
  • Hose Barb
    • Ref No: 11
    • Part No: 28020018
    • Qty Req: 1
    Our price: $7.61 List price: $8.95
  • Gasket
    • Ref No: 12
    • Part No: 12090013
    • Qty Req: 12
    Our price: $0.90 List price: $1.06
  • Tap
    • Ref No: 13
    • Part No: 282629
    • Qty Req: 1
    Our price: $68.19 List price: $80.22
  • Hose Adapter
    • Ref No: 14
    • Part No: 2803370
    • Qty Req: 1
    Our price: $41.26 List price: $48.54
  • O-Ring
    • Ref No: 15
    • Part No: 12100032
    • Qty Req: 1
    Our price: $1.24 List price: $1.46
  • Nipple
    • Ref No: 16
    • Part No: 200086
    • Qty Req: 1
    Our price: $10.96 List price: $12.89
  • O-Ring
    • Ref No: 17
    • Part No: 12100180
    • Qty Req: 1
    Our price: $0.77 List price: $0.90
  • Wing Nut
    • Ref No: 18
    • Part No: 12000054
    • Qty Req: 1
    Our price: $14.14 List price: $16.63
  • Elbow
    • Ref No: 19
    • Part No: 28010055
    • Qty Req: 1
    Our price: $32.52 List price: $38.26
  • Screw
    • Ref No: 20
    • Part No: 36090078
    • Qty Req: 16
    Our price: $4.23 List price: $4.98
  • Washer
    • Ref No: 21
    • Part No: 28110098
    • Qty Req: 7
    Our price: $0.48 List price: $0.57
  • Pump Manifold
    • Ref No: 22
    • Part No: 32180103
    • Qty Req: 2
    Our price: $130.94 List price: $154.05
  • O-Ring
    • Ref No: 23
    • Part No: 12100047
    • Qty Req: 8
    Our price: $1.03 List price: $1.21
  • O-Ring
    • Ref No: 24
    • Part No: 12100443
    • Qty Req: 8
    Our price: $1.26 List price: $1.48
  • Valve Seat
    • Ref No: 25
    • Part No: 30090115
    • Qty Req: 8
    Our price: $18.65 List price: $21.94
  • Valve Plate
    • Ref No: 26
    • Part No: 36040023
    • Qty Req: 8
    Our price: $3.21 List price: $3.78
  • Valve Spring
    • Ref No: 27
    • Part No: 18020015
    • Qty Req: 8
    Our price: $1.82 List price: $2.14
  • Valve Cage
    • Ref No: 28
    • Part No: 12050029
    • Qty Req: 8
    Our price: $2.20 List price: $2.59
  • Valve Assembly
    • Ref No: 29
    • Part No: 12200035
    • Qty Req: 8
    Our price: $27.27 List price: $32.08
  • Plug
    • Ref No: 31
    • Part No: 32020197
    • Qty Req: 2
    Our price: $42.62 List price: $50.14
  • Air Valve
    • Ref No: 33
    • Part No: 36100003
    • Qty Req: 1
    Our price: $16.16 List price: $19.01
  • Gasket
    • Ref No: 34
    • Part No: 12090033
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Pressure Accumulator
    • Ref No: 35
    • Part No: 326
    • Qty Req: 1
    Our price: $77.66 List price: $91.36
  • Viton O-Ring
    • Ref No: 36
    • Part No: 1210165
    • Qty Req: 1
    Our price: $21.20 List price: $24.94
  • O-Ring
    • Ref No: 37
    • Part No: 1210132
    • Qty Req: 1
    Our price: $4.37 List price: $5.14
  • Diaphragm
    • Ref No: 38
    • Part No: 180094
    • Qty Req: 1
    Our price: $40.55 List price: $47.70
  • Support
    • Ref No: 39
    • Part No: 46028
    • Qty Req: 1
    Our price: $20.33 List price: $23.92
  • Pulsation Dampner Body
    • Ref No: 40
    • Part No: 00020029
    • Qty Req: 1
    Our price: $172.45 List price: $202.88
  • Pressure Accumulator Assembly
    • Ref No: 41
    • Part No: 122513
    • Qty Req: 1
    Our price: $341.52 List price: $401.79
  • Washer
    • Ref No: 43
    • Part No: 28110004
    • Qty Req: 4
    Our price: $0.48 List price: $0.56
  • O-Ring
    • Ref No: 44
    • Part No: 12100011
    • Qty Req: 1
    Our price: $1.50 List price: $1.76
  • Plug
    • Ref No: 46
    • Part No: 3202217
    • Qty Req: 2
    Our price: $24.80 List price: $29.18
  • Mounting Base
    • Ref No: 47
    • Part No: 240068
    • Qty Req: 2
    Our price: $60.88 List price: $71.62
  • Right Pump Manifold
    • Ref No: 48
    • Part No: 3218102
    • Qty Req: 2
    Our price: $130.14 List price: $153.11
  • Cap
    • Ref No: 49
    • Part No: 04020143
    • Qty Req: 1
    Our price: $11.29 List price: $13.28
  • O-Ring
    • Ref No: 50
    • Part No: 12100373
    • Qty Req: 1
    Our price: $2.04 List price: $2.40
  • Oil Bowl
    • Ref No: 51
    • Part No: 04210012
    • Qty Req: 1
    Our price: $62.13 List price: $73.09
  • O-Ring
    • Ref No: 52
    • Part No: 12100002
    • Qty Req: 2
    Our price: $0.92 List price: $1.08
  • Pump Crankcase
    • Ref No: 53
    • Part No: 403127
    • Qty Req: 1
    Our price: $1,084.37 List price: $1,275.73
  • Ball Bearing
    • Ref No: 54
    • Part No: 43810
    • Qty Req: 1
    Our price: $113.82 List price: $133.90
  • Connecting Rod Ring
    • Ref No: 55
    • Part No: 00100021
    • Qty Req: 2
    Our price: $40.35 List price: $47.47
  • Snap Ring
    • Ref No: 56
    • Part No: 30190001
    • Qty Req: 1
    Our price: $4.53 List price: $5.33
  • Ball Bearing
    • Ref No: 57
    • Part No: 04380001
    • Qty Req: 1
    Our price: $179.27 List price: $210.91
  • Shaft
    • Ref No: 58
    • Part No: 1320
    • Qty Req: 1
    Our price: $809.36 List price: $952.19
  • O-Ring
    • Ref No: 59
    • Part No: 12100225
    • Qty Req: 1
    Our price: $3.88 List price: $4.57
  • Ring
    • Ref No: 60
    • Part No: 9192
    • Qty Req: 1
    Our price: $36.41 List price: $42.84
  • Oil Seal (APS-96)
    • Ref No: 61
    • Part No: 001993
    • Qty Req: 1
    Our price: $15.65 List price: $18.41
  • Snap Ring
    • Ref No: 62
    • Part No: 30200002
    • Qty Req: 1
    Our price: $6.39 List price: $7.52
  • Snap Ring
    • Ref No: 63
    • Part No: 30200029
    • Qty Req: 8
    Our price: $0.44 List price: $0.52
  • Pin
    • Ref No: 64
    • Part No: 30110021
    • Qty Req: 4
    Our price: $14.96 List price: $17.60
  • Diaphragm, Buna
    • Ref No: 65
    • Part No: 18000088
    • Qty Req: 4
    Our price: $26.65 List price: $31.35
  • Washer
    • Ref No: 66
    • Part No: 06020010
    • Qty Req: 4
    Our price: $5.65 List price: $6.65
  • Diaphragm Holder Screw
    • Ref No: 67
    • Part No: 36050005
    • Qty Req: 4
    Our price: $26.73 List price: $31.45
  • Piston Sleeve (APS71)
    • Ref No: 68
    • Part No: 04000074
    • Qty Req: 4
    Our price: $138.92 List price: $163.44
  • Compression Ring
    • Ref No: 69
    • Part No: 00200008
    • Qty Req: 4
    Our price: $11.75 List price: $13.82
  • Piston
    • Ref No: 70
    • Part No: 24090067
    • Qty Req: 4
    Our price: $87.93 List price: $103.45
  • Connecting Rod Assembly
    • Ref No: 71
    • Part No: 20560
    • Qty Req: 1
    Our price: $212.55 List price: $250.06
  • O-Ring
    • Ref No: 72
    • Part No: 12100044
    • Qty Req: 1
    Our price: $0.60 List price: $0.70
  • Plug
    • Ref No: 73
    • Part No: 32000010
    • Qty Req: 1
    Our price: $20.74 List price: $24.40
