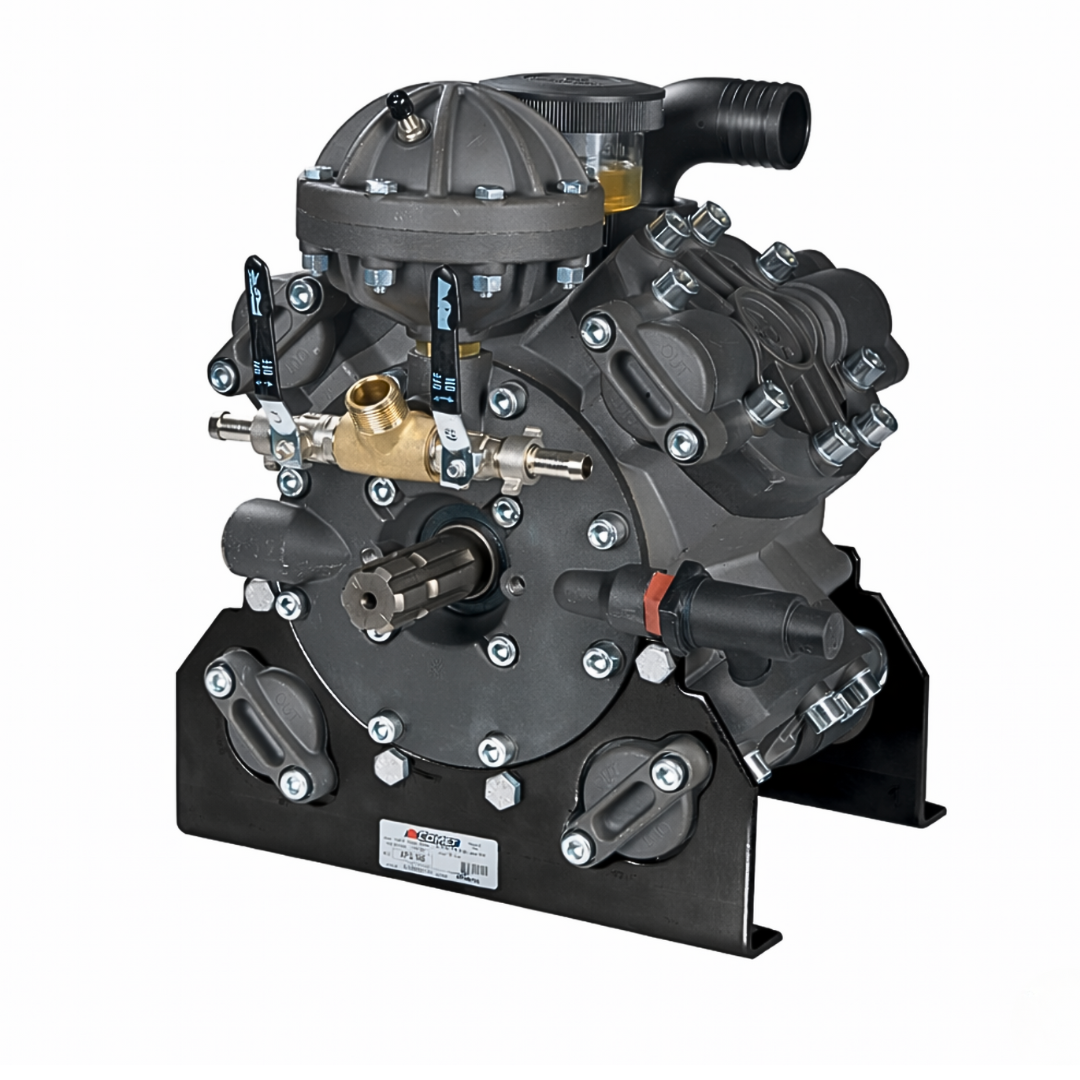

Comet APS145 Diaphragm Pump

Comet APS145 Diaphragm Pump

Brand:
Comet
Weight:
101.0 lb
Item #
APS145
1 1

Comet APS145 Diaphragm Pump

Comet APS145 Diaphragm Pump

Brand:
Comet
Weight:
101.0 lb
Item #
APS145

$2,660.09
$2,660.09 List Price: $4,092.45

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 7,980 points with this purchase.

See Details

View full details

Product Overview

The Comet APS145 diaphragm pump is a four diaphragm pump anodized aluminum heads to handle high pressure jobs with less leakage. This pump can be used in a number of applications including pest control, agricultural spraying, lawn care, and hydrostatic testing. This pump comes standard with a safety valve and a pressure accumulator.

Manufacturer description

Four diaphragm pump with 1-3/8" male 6 spline PTO shaft on both sides. High pressure internal manifold pumps with anodized aluminum heads for less leak points. Great for lawn care, pest control, hydrostatic testing and agricultural spraying.

Resources

Download Product Manual

Features

  • Max flow: 37 gpm
  • Max pressure: 725 psi
  • Max rpm: 550
  • Includes 1215/84 pressure regulator
  • Port sizes: 1-1/2" HB inlet, (2) 1/2" HB outlet with individual shut-off
  • Shaft: Dual 1-3/8" male 6-spline PTO
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Buna standard Desmopan® and Viton® available
  • Housing: Anodized aluminum
  • Recommended pressure regulator: 1215/84
  • Max fluid temperature: 140°F
  • Weight: 101 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: 04020143
    • Qty Req: 1
    Our price: $11.29 List price: $13.28
  • O-Ring
    • Ref No: 2
    • Part No: 12100373
    • Qty Req: 1
    Our price: $2.04 List price: $2.40
  • Oil Bowl
    • Ref No: 3
    • Part No: 04210012
    • Qty Req: 1
    Our price: $62.13 List price: $73.09
  • O-Ring
    • Ref No: 4
    • Part No: 12100002
    • Qty Req: 2
    Our price: $0.92 List price: $1.08
  • Wing Nut
    • Ref No: 5
    • Part No: 12000052
    • Qty Req: 1
    Our price: $16.02 List price: $18.85
  • Suction Elbow
    • Ref No: 6
    • Part No: 28010057
    • Qty Req: 1
    Our price: $27.74 List price: $32.64
  • O-Ring
    • Ref No: 7
    • Part No: 12100197
    • Qty Req: 2
    Our price: $1.59 List price: $1.87
  • Oil Sight Glass
    • Ref No: 8
    • Part No: 12080015
    • Qty Req: 1
    Our price: $72.10 List price: $84.82
  • Nipple
    • Ref No: 9
    • Part No: 20000096
    • Qty Req: 1
    Our price: $16.05 List price: $18.88
  • O-Ring
    • Ref No: 10
    • Part No: 12100113
    • Qty Req: 1
    Our price: $1.84 List price: $2.17
  • Oil Seal
    • Ref No: 11
    • Part No: 00190068
    • Qty Req: 1
    Our price: $19.95 List price: $23.47
  • O-Ring
    • Ref No: 12
    • Part No: 12100351
    • Qty Req: 1
    Our price: $4.69 List price: $5.52
  • O-Ring
    • Ref No: 13
    • Part No: 12100355
    • Qty Req: 1
    Our price: $5.35 List price: $6.29
  • Pump Crankcase
    • Ref No: 14
    • Part No: 04030140
    • Qty Req: 1
    Our price: $1,869.16 List price: $2,199.01
  • Ball Bearing
    • Ref No: 15
    • Part No: 04380078
    • Qty Req: 1
    Our price: $348.33 List price: $409.80
  • Spacer
    • Ref No: 16
    • Part No: 06010264
    • Qty Req: 1
    Our price: $13.16 List price: $15.48
  • Connecting Rod Washer
    • Ref No: 17
    • Part No: 28130030
    • Qty Req: 1
    Our price: $71.37 List price: $83.97
  • Connecting Rod Ring
    • Ref No: 18
    • Part No: 00100003
    • Qty Req: 2
    Our price: $85.59 List price: $100.69
  • Needle Bearing
    • Ref No: 19
    • Part No: 04370076
    • Qty Req: 1
    Our price: $889.98 List price: $1,047.04
  • APS145 Throughshaft
    • Ref No: 21
    • Part No: 00010409
    • Qty Req: 1
    Our price: $796.12 List price: $936.61
  • Connecting Rod Washer
    • Ref No: 23
    • Part No: 28130070
    • Qty Req: 1
    Our price: $67.90 List price: $79.88
  • Spacer
    • Ref No: 24
    • Part No: 06010279
    • Qty Req: 1
    Our price: $25.29 List price: $29.75
  • Ball Bearing
    • Ref No: 25
    • Part No: 04380009
    • Qty Req: 1
    Our price: $393.80 List price: $463.29
  • O-Ring
    • Ref No: 26
    • Part No: 12100369
    • Qty Req: 1
    Our price: $5.87 List price: $6.91
  • O-Ring
    • Ref No: 27
    • Part No: 12100365
    • Qty Req: 1
    Our price: $8.17 List price: $9.61
  • O-Ring
    • Ref No: 28
    • Part No: 12100359
    • Qty Req: 1
    Our price: $8.25 List price: $9.71
  • Flange
    • Ref No: 29
    • Part No: 10090168
    • Qty Req: 1
    Our price: $187.71 List price: $220.84
  • Oil Seal
    • Ref No: 30
    • Part No: 00190089
    • Qty Req: 1
    Our price: $14.54 List price: $17.10
  • Retaining Clip
    • Ref No: 31
    • Part No: 30200007
    • Qty Req: 1
    Our price: $6.51 List price: $7.66
  • Bolt
    • Ref No: 32
    • Part No: 36090009
    • Qty Req: 4
    Our price: $3.12 List price: $3.67
  • Mounting Base
    • Ref No: 33
    • Part No: 24000084
    • Qty Req: 2
    Our price: $163.57 List price: $192.44
  • Screw
    • Ref No: 34
    • Part No: 36070220
    • Qty Req: 8
    Our price: $1.84 List price: $2.16
  • Plug
    • Ref No: 35
    • Part No: 32000019
    • Qty Req: 1
    Our price: $9.77 List price: $11.49
  • Snap Ring
    • Ref No: 36
    • Part No: 30200006
    • Qty Req: 8
    Our price: $0.60 List price: $0.70
  • Connecting Rod Pin
    • Ref No: 37
    • Part No: 30110003
    • Qty Req: 4
    Our price: $24.62 List price: $28.96
  • Connecting Rod Assembly
    • Ref No: 38
    • Part No: 02050064
    • Qty Req: 1
    Our price: $302.24 List price: $355.58
  • Piston
    • Ref No: 39
    • Part No: 24090068
    • Qty Req: 4
    Our price: $88.70 List price: $104.35
  • Piston Ring
    • Ref No: 41
    • Part No: 00200001
    • Qty Req: 4
    Our price: $13.90 List price: $16.35
  • Piston Sleeve
    • Ref No: 42
    • Part No: 04000071
    • Qty Req: 4
    Our price: $149.33 List price: $175.68
  • Diaphragm (Buna)
    • Ref No: 43
    • Part No: 18000012
    • Qty Req: 4
    Our price: $40.55 List price: $47.70
  • Bolt
    • Ref No: 44
    • Part No: 24190042
    • Qty Req: 4
    Our price: $5.12 List price: $6.02
  • Disc
    • Ref No: 45
    • Part No: 06020011
    • Qty Req: 4
    Our price: $68.96 List price: $81.13
  • Screw
    • Ref No: 46
    • Part No: 36070025
    • Qty Req: 8
    Our price: $2.07 List price: $2.44
  • Air Valve
    • Ref No: 47
    • Part No: 36100003
    • Qty Req: 1
    Our price: $16.16 List price: $19.01
  • Gasket
    • Ref No: 48
    • Part No: 12090033
    • Qty Req: 2
    Our price: $1.00 List price: $1.18
  • Pulsation Dampner Body
    • Ref No: 49
    • Part No: 00030027
    • Qty Req: 1
    Our price: $105.08 List price: $123.62
  • Accumulator Diaphragm
    • Ref No: 50
    • Part No: 18000034
    • Qty Req: 1
    Our price: $29.95 List price: $35.23
  • Diaphragm Support Cap
    • Ref No: 51
    • Part No: 04600036
    • Qty Req: 1
    Our price: $22.92 List price: $26.96
  • Pressure Accumulator
    • Ref No: 52
    • Part No: 00020031
    • Qty Req: 1
    Our price: $105.18 List price: $123.74
  • Nipple
    • Ref No: 54
    • Part No: 20000024
    • Qty Req: 1
    Our price: $24.60 List price: $28.94
  • Pressure Accumulator Assembly
    • Ref No: 55
    • Part No: 12250014
    • Qty Req: 1
    Our price: $311.34 List price: $366.28
  • Wing Nut
    • Ref No: 56
    • Part No: 12000038
    • Qty Req: 1
    Our price: $8.11 List price: $9.54
  • Hose Barb
    • Ref No: 57
    • Part No: 28020020
    • Qty Req: 1
    Our price: $8.10 List price: $9.53
  • Gasket
    • Ref No: 58
    • Part No: 12090013
    • Qty Req: 1
    Our price: $0.90 List price: $1.06
  • Left Tap
    • Ref No: 59
    • Part No: 28260031
    • Qty Req: 1
    Our price: $82.39 List price: $96.93
  • Complete Right Tap
    • Ref No: 60
    • Part No: 12140017
    • Qty Req: 1
    Our price: $95.23 List price: $112.03
  • Hose Adapter
    • Ref No: 61
    • Part No: 28030434
    • Qty Req: 1
    Our price: $100.90 List price: $118.70
  • Right Tap
    • Ref No: 62
    • Part No: 28260032
    • Qty Req: 1
    Our price: $74.89 List price: $88.11
  • Complete Tap/Ball Valve
    • Ref No: 66
    • Part No: 12140016
    • Qty Req: 1
    Our price: $95.23 List price: $112.03
  • Safety Valve
    • Ref No: 67
    • Part No: 12190041
    • Qty Req: 1
    Our price: $65.78 List price: $77.39
  • Plug
    • Ref No: 69
    • Part No: 32020115
    • Qty Req: 1
    Our price: $23.52 List price: $27.67
  • Flange
    • Ref No: 70
    • Part No: 10090167
    • Qty Req: 1
    Our price: $235.98 List price: $277.62
  • Washer
    • Ref No: 72
    • Part No: 28110098
    • Qty Req: 16
    Our price: $0.48 List price: $0.57
  • Plug
    • Ref No: 73
    • Part No: 32020218
    • Qty Req: 4
    Our price: $35.88 List price: $42.21
  • O-Ring
    • Ref No: 74
    • Part No: 12100385
    • Qty Req: 8
    Our price: $1.53 List price: $1.80
  • Valve Cage
    • Ref No: 75
    • Part No: 12050030
    • Qty Req: 8
    Our price: $4.23 List price: $4.98
  • Valve Spring
    • Ref No: 76
    • Part No: 18020015
    • Qty Req: 8
    Our price: $1.82 List price: $2.14
  • Valve Plunger
    • Ref No: 77
    • Part No: 36040009
    • Qty Req: 8
    Our price: $6.41 List price: $7.54
  • Valve Seat
    • Ref No: 78
    • Part No: 30090014
    • Qty Req: 8
    Our price: $48.33 List price: $56.86
  • O-Ring
    • Ref No: 79
    • Part No: 12100114
    • Qty Req: 8
    Our price: $1.41 List price: $1.66
  • Complete Valve Assembly
    • Ref No: 80
    • Part No: 12200034
    • Qty Req: 8
    Our price: $62.88 List price: $73.98
  • Screw
    • Ref No: 81
    • Part No: 36090057
    • Qty Req: 32
    Our price: $5.81 List price: $6.84
  • Washer
    • Ref No: 82
    • Part No: 28110025
    • Qty Req: 32
    Our price: $0.66 List price: $0.78
  • Pump Head
    • Ref No: 83
    • Part No: 32180099
    • Qty Req: 4
    Our price: $267.93 List price: $315.21
  • O-Ring
    • Ref No: 84
    • Part No: 12100047
    • Qty Req: 4
    Our price: $1.03 List price: $1.21
  • O-Ring
    • Ref No: 85
    • Part No: 12100145
    • Qty Req: 4
    Our price: $1.04 List price: $1.22
  • Plug
    • Ref No: 86
    • Part No: 32020219
    • Qty Req: 4
    Our price: $29.00 List price: $34.12
