AR160BP-C/C Diaphragm Pump

AR160BP-C/C Diaphragm Pump

Brand:
AR
Weight:
60.0 lb
Item #
AR160BPCC
Skip to product information
1 of 1

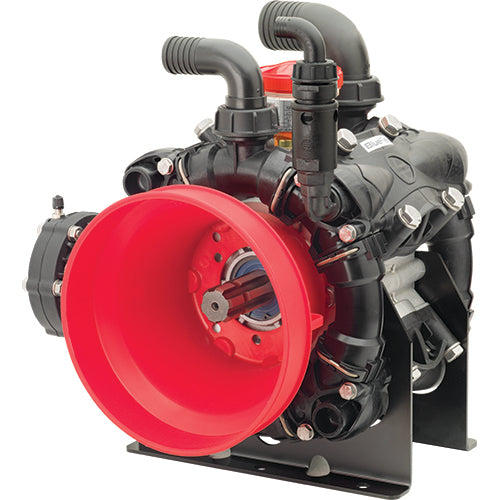

AR160BP-C/C Diaphragm Pump

AR160BP-C/C Diaphragm Pump

Brand:
AR
Weight:
60.0 lb
Item #
AR160BPCC

Regular price $1,803.31
Sale price $1,803.31 Regular price List Price: $3,278.75

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 5,410 points with this purchase.

View full details

Collapsible content

Product Overview

The AR160BP-C/C diaphragm pump is widely used in the commercial, industrial and agricultural sprayer industries. With a flow rate up to 43.9 gpm and max pressure of 290 psi it is optimal for medium or large-sized sprayers, assisting in the targeted distribution of your liquid product onto desired surfaces for consistent, even coverage every time. This model is equipped with dual male PTO shafts.

Manufacturer description

Annovi Reverberi is the number one agricultural diaphragm pump manufacturer in the world. Our versatile pumps have been used in a multitude of applications for more than 5 decades in 85 countries worldwide. They are self-priming, with flows from 3.5 to 238 GPM and pressures up to 725 PSI, these pumps can feature the revolutionary AR BLUEFLEX diaphragms. BLUEFLEX is what we believe is the best performing diaphragm material currently available in the market.

  • Alternating volumetric pumps with four semi-hydraulic diaphragms for use in agriculture in low pressure systems for spraying open field* crops with fertilisers, pesticides or weed killers
  • Parts in contact with pumped liquids in plastic-coated aluminium and stainless steel
  • Diaphragms in NBR, H.P.D.S., Desmopan or Viton. Seals in NBR or Viton
  • Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
  • Pistons with ring for a more efficient "oil cushion" system to protect the diaphragm
  • New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
  • Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
  • Rugged feet secured to pump casing
  • GEOMET coated or stainless steel metal fasteners

Features

  • Max flow: 43.9 gpm
  • Max pressure: 290 psi
  • Shaft: 1-3/8" 6-spline male PTO on both ends
  • Port sizes: 2" HB inlet, 1-1/4" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, BlueFlex® material
  • Housing: Anodized aluminum
  • Recommended control unit: ECM or UCM
  • Max fluid temperature: 140°F
  • Weight: 60.6 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Elbow 2"
    • Ref No: 1
    • Part No: 9910760020
    • Qty Req: 1
    Our price: $44.22 List price: $54.59
  • Ring Nut
    • Ref No: 2
    • Part No: 9910760040
    • Qty Req: 1
    Our price: $20.89 List price: $25.79
  • Threaded Adapter (No longer available, manifold has changed)
    • Ref No: 3
    • Part No: 9910760030
    • Qty Req: 1
    Our price: $26.53 List price: $32.75
  • O-Ring
    • Ref No: 4
    • Part No: 9910250310
    • Qty Req: 1
    Our price: $1.93 List price: $2.38
  • Suction Manifold
    • Ref No: 5
    • Part No: 9910760220
    • Qty Req: 1
    Our price: $762.21 List price: $941.00
  • Nut
    • Ref No: 6
    • Part No: 9910380242
    • Qty Req: 18
    Our price: $1.49 List price: $1.84
  • Head
    • Ref No: 7
    • Part No: 9910750100
    • Qty Req: 4
    Our price: $146.80 List price: $181.23
  • O-Ring
    • Ref No: 8
    • Part No: 9910680070
    • Qty Req: 8
    Our price: $4.23 List price: $5.22
  • Complete valve
    • Ref No: 9
    • Part No: 9910759051
    • Qty Req: 8
    Our price: $46.27 List price: $57.12
  • Bolt
    • Ref No: 10
    • Part No: 9910750071
    • Qty Req: 4
    Our price: $9.02 List price: $11.13
  • Oil drain plug
    • Ref No: 11
    • Part No: 24060023
    • Qty Req: 2
    Our price: $11.32 List price: $13.97
  • Sleeve
    • Ref No: 12
    • Part No: 9910750110
    • Qty Req: 4
    Our price: $145.88 List price: $180.10
  • M12 X 65 Bolt
    • Ref No: 13
    • Part No: 9910750061
    • Qty Req: 12
    Our price: $8.59 List price: $10.61
  • Bolt
    • Ref No: 14
    • Part No: 9910680350
    • Qty Req: 2
    Our price: $2.48 List price: $3.06
  • O-Ring
    • Ref No: 15
    • Part No: 99101040060
    • Qty Req: 1
    Our price: $8.74 List price: $10.79
  • Black oil tank cap
    • Ref No: 16
    • Part No: 9910750057
    • Qty Req: 1
    Our price: $21.37 List price: $26.38
  • Oil reservoir
    • Ref No: 17
    • Part No: 9910750030
    • Qty Req: 1
    Our price: $54.88 List price: $67.75
  • Gasket
    • Ref No: 18
    • Part No: 9910750040
    • Qty Req: 1
    Our price: $1.69 List price: $2.09
  • Pump body
    • Ref No: 19
    • Part No: 9910760010
    • Qty Req: 1
    Our price: $440.64 List price: $544.00
  • O-Ring
    • Ref No: 20
    • Part No: 9910851360
    • Qty Req: 1
    Our price: $3.04 List price: $3.75
  • Shaft support
    • Ref No: 21
    • Part No: 9910680020
    • Qty Req: 1
    Our price: $180.72 List price: $223.11
  • Bolt
    • Ref No: 22
    • Part No: 9910160672
    • Qty Req: 6
    Our price: $3.04 List price: $3.75
  • Threaded Adapter
    • Ref No: 23
    • Part No: 9910540530
    • Qty Req: 1
    Our price: $25.60 List price: $31.60
  • Ring Nut
    • Ref No: 25
    • Part No: 9910540540
    • Qty Req: 1
    Our price: $18.08 List price: $22.32
  • Elbow 1-1/2"
    • Ref No: 26
    • Part No: 9910540550
    • Qty Req: 1
    Our price: $29.71 List price: $36.68
  • Diaphragm Desmopan (Standard)
    • Ref No: 27
    • Part No: 9910550085
    • Qty Req: 4
    Our price: $36.43 List price: $44.97
  • Diaphragm Buna (Optional)
    • Ref No: 27
    • Part No: 9910550080
    • Qty Req: 4
    Our price: $43.54 List price: $53.75
  • Piston Ring
    • Ref No: 28
    • Part No: 9910500260
    • Qty Req: 4
    Our price: $19.86 List price: $24.52
  • Piston
    • Ref No: 29
    • Part No: 9910750122
    • Qty Req: 4
    Our price: $85.25 List price: $105.25
  • Manifold
    • Ref No: 30
    • Part No: 9910760070
    • Qty Req: 1
    Our price: $477.09 List price: $589.00
  • Pin
    • Ref No: 31
    • Part No: 9910160700
    • Qty Req: 4
    Our price: $32.76 List price: $40.45
  • Retainer Ring
    • Ref No: 32
    • Part No: 9910160691
    • Qty Req: 8
    Our price: $2.72 List price: $3.36
  • Connecting Rod
    • Ref No: 33
    • Part No: 9910760140
    • Qty Req: 4
    Our price: $98.46 List price: $121.56
  • Roller bearing
    • Ref No: 34
    • Part No: 9910750090
    • Qty Req: 2
    Our price: $277.60 List price: $342.71
  • Connecting rod ring
    • Ref No: 35
    • Part No: 9910750130
    • Qty Req: 2
    Our price: $51.69 List price: $63.82
  • Spacer washer
    • Ref No: 36
    • Part No: 9910540040
    • Qty Req: 2
    Our price: $55.95 List price: $69.07
  • Bearing
    • Ref No: 37
    • Part No: 9910230350
    • Qty Req: 2
    Our price: $168.67 List price: $208.24
  • Seal Ring
    • Ref No: 38
    • Part No: 9910160740
    • Qty Req: 2
    Our price: $39.44 List price: $48.69
  • Retainer Ring
    • Ref No: 39
    • Part No: 9910200390
    • Qty Req: 2
    Our price: $11.95 List price: $14.75
  • Base
    • Ref No: 40
    • Part No: 9910760201
    • Qty Req: 2
    Our price: $27.92 List price: $34.47
  • Crankshaft
    • Ref No: 41
    • Part No: 9910750170
    • Qty Req: 1
    Our price: $681.07 List price: $840.83
  • O-Ring
    • Ref No: 42
    • Part No: 9910390290
    • Qty Req: 1
    Our price: $2.10 List price: $2.59
  • Washer
    • Ref No: 43
    • Part No: 9910380243
    • Qty Req: 18
    Our price: $1.49 List price: $1.84
  • Washer
    • Ref No: 44
    • Part No: 9910250143
    • Qty Req: 4
    Our price: $1.93 List price: $2.38
  • Plug
    • Ref No: 45
    • Part No: 9910330173
    • Qty Req: 2
    Our price: $7.59 List price: $9.37
  • Accumulator Diaphragm, Buna-N
    • Ref No: 46
    • Part No: 9910550190
    • Qty Req: 1
    Our price: $24.75 List price: $30.55
  • O-ring
    • Ref No: 47
    • Part No: 9910650542
    • Qty Req: 1
    Our price: $1.97 List price: $2.43
  • Air Valve
    • Ref No: 48
    • Part No: 9910180020
    • Qty Req: 1
    Our price: $41.03 List price: $50.66
  • Accumulator Head
    • Ref No: 49
    • Part No: 9910620232
    • Qty Req: 1
    Our price: $53.91 List price: $66.55
  • Bolt
    • Ref No: 50
    • Part No: 9910621781
    • Qty Req: 8
    Our price: $2.39 List price: $2.95
  • Accumulator body
    • Ref No: 51
    • Part No: 9910680180
    • Qty Req: 1
    Our price: $141.32 List price: $174.47
  • Shield, 199 mm
    • Ref No: 52
    • Part No: 99101500350
    • Qty Req: 2
    Our price: $52.50 List price: $64.82
  • Bolt
    • Ref No: 53
    • Part No: 9910850251
    • Qty Req: 6
    Our price: $2.39 List price: $2.95
  • O-Ring
    • Ref No: 55
    • Part No: 9910740290
    • Qty Req: 2
    Our price: $1.92 List price: $2.37
  • Diaphragm Bolt
    • Ref No: 56
    • Part No: 9910580360
    • Qty Req: 4
    Our price: $14.04 List price: $17.33
  • Washer
    • Ref No: 57
    • Part No: 9910390314
    • Qty Req: 6
    Our price: $1.39 List price: $1.71
  • Plate
    • Ref No: 58
    • Part No: 9910580370
    • Qty Req: 4
    Our price: $11.37 List price: $14.04
  • Accumulator stud
    • Ref No: 59
    • Part No: 9910390670
    • Qty Req: 1
    Our price: $8.33 List price: $10.28
  • O-Ring
    • Ref No: 60
    • Part No: 9910620210
    • Qty Req: 1
    Our price: $2.48 List price: $3.06
  • O-Ring
    • Ref No: 61
    • Part No: 9910480440
    • Qty Req: 1
    Our price: $1.76 List price: $2.17
