500 Gallon Elliptical Tank

500 Gallon Elliptical Tank

Item Code:
167.0 lb
Ace Roto-Mold
Our price:
List price:

****We are currently experiencing delays on Ace-Roto Mold products. Please contact us for availability.****

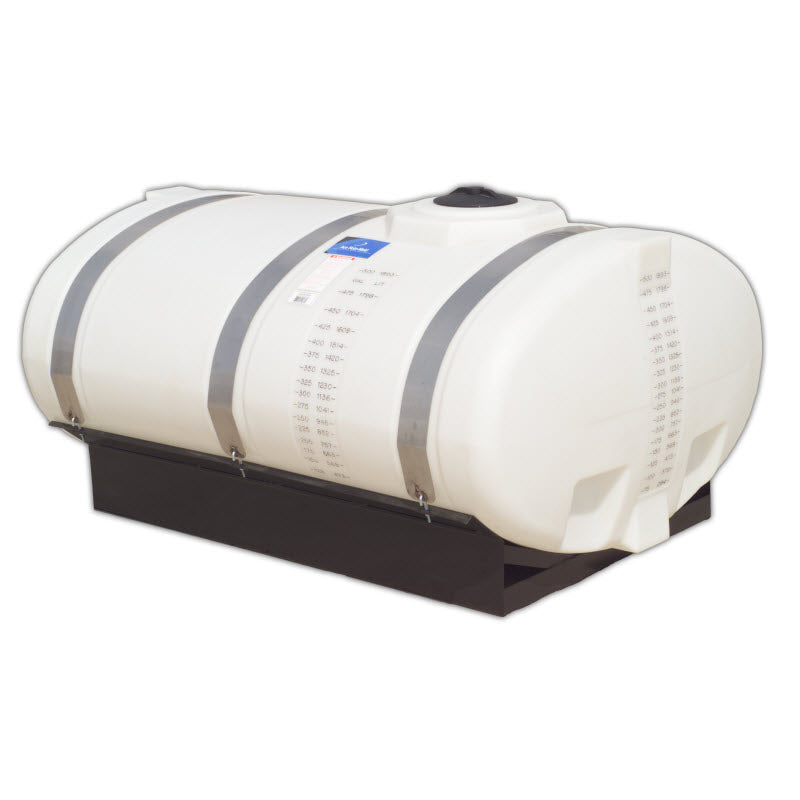

The 500 Gallon Elliptical Tank is perfect for all your liquid storing and transporting needs, for either indoor or outdoor environments. The standard 2-1/2" collection sump allows full draining and an 8-1/2" deep sump option is available. With U.V. stabilizers, the polyethylene construction protects light sensitive liquids. Tanks measure at 57" by 82" by 36".

**Tank is sold without fittings installed but they can be added upon request. Installation is no charge - you only pay for the fittings. We require the tank diagram marked with the desired location and bulkhead size before installing fittings.**

Manufacturer Description:

Elliptical Tanks can be selected for stationary or transportable (non DOT approved) applications both indoors and outdoors. The elliptical tank lowers the center of gravity to enhance stability and visibility. The tanks feature a standard 2-1/2" collection sump on the bottom for full drain out. An 8-1/2" deep sump option is available on five sizes. Sump is located directly under the lid on standard tanks, but a center sump option is available on tanks from 500-1250 gallons. These tanks require the bottom to be fully supported with a cradle for use. The tanks are manufactured from medium-density polyethylene with U.V. stabilizers and are designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.


(Tank comes without fittings installed. Fittings are available and can be installed with no extra charge) Dimensions: 57" W x 82" L x 36" H

Parts breakdown

 Parts breakdown parts
