200 Gallon Elliptical Tank

200 Gallon Elliptical Tank

Item Code:
84.0 lb
Ace Roto-Mold
Our price:
List price:

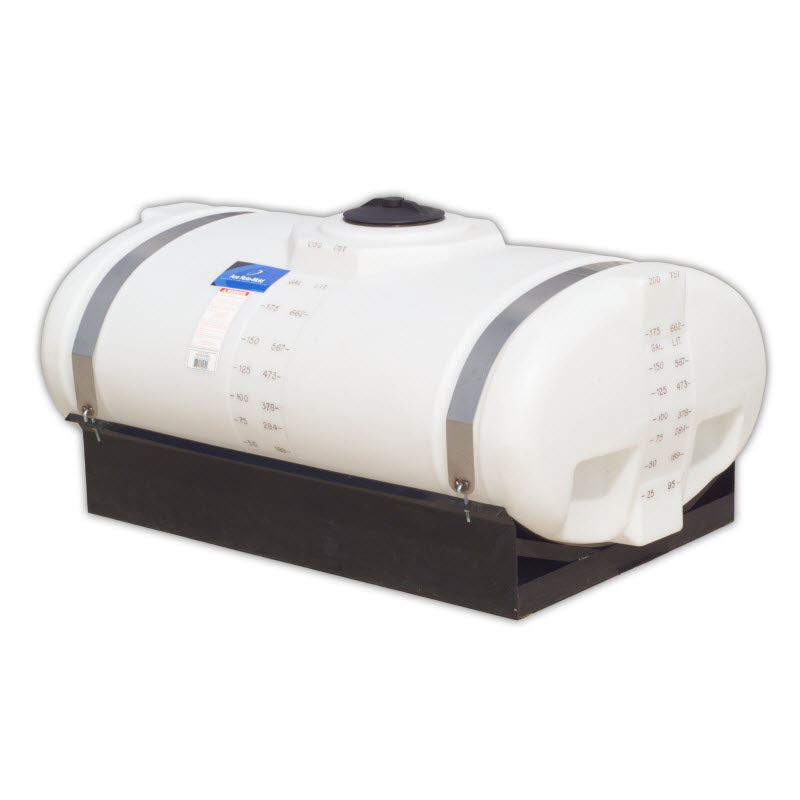

200 Gallon Elliptical Tank (Cradle shown in picture sold separately. Please use part number HE0200C)

(Tank comes without fittings installed. Fittings are available and can be installed with no extra charge)

Dimensions: 41" W x 66" L x 26" H

Actual Weight: 84 LBs

Elliptical Tanks can be selected for stationary or transportable (non DOT approved) applications both indoors and outdoors. The elliptical tank lowers the center of gravity to enhance stability and visibility. The tanks feature a standard 2-1/2” collection sump on the bottom for full drain out. An 8-1/2” deep sump option is available on five sizes. Sump is located directly under the lid on standard tanks, but a center sump option is available on tanks from 500-1250 gallons. These tanks require the bottom to be fully supported with a cradle for use. The tanks are manufactured from medium-density polyethylene with U.V. stabilizers and are designed for containment of liquids of up to 1.7 specific gra

Parts breakdown
