3300-0082 Control Unit

3300-0082 Control Unit

Item Code:
33000082
Weight:
8.0 lb
Manufacturer:
Hypro
Our price:
$825.34
List price:
$1,423.00
Overview:

66 gpm, 290 psi.

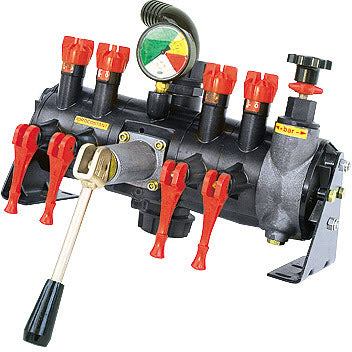

This remote control unit, for pump model 9910-D250, is capable of handling flow rates up to 66 gpm (249.8 lpm) and pressures up to 290 psi (20 bar). It includes a pressure gauge, one built-in adjustable relief valve, one main shut-off and complete bypass lever, four 3?4" HB outlets with individual shut-offs and one 1-1?2" HB bypass.

Download Product Manual

Parts breakdown

Parts breakdown parts

Parts list

3300-0082 RV BOLT

  • Ref No: 1
  • Part No: 9910180430
  • Qty Req: 4
Our price: $0.79 List price: $0.98

M 8 H 10 Nut

  • Ref No: 2
  • Part No: 9910160311
  • Qty Req: 4
Our price: $6.16 List price: $7.61

Washer

  • Ref No: 3
  • Part No: 9910390311
  • Qty Req: 4
Our price: $2.56 List price: $3.16

3300-0082 RV CAP

  • Ref No: 6
  • Part No: 9910391940
  • Qty Req: 2
Our price: $26.66 List price: $32.91

3300-0082 RV SCALE

  • Ref No: 8
  • Part No: 9910391960
  • Qty Req: 1
Our price: $2.77 List price: $3.42

3300-0082 RV VALVE

  • Ref No: 9
  • Part No: 9910391710
  • Qty Req: 1
Our price: $60.44 List price: $74.62

O-Ring

  • Ref No: 10
  • Part No: 991064007V
  • Qty Req: 1
Our price: $15.30 List price: $18.89

3300-0082 RV SPRING

  • Ref No: 13
  • Part No: 9910391680
  • Qty Req: 1
Our price: $12.10 List price: $14.94

3300-0082 RV STEM

  • Ref No: 14
  • Part No: 9910391650
  • Qty Req: 1
Our price: $36.05 List price: $44.50

3300-0082 PIN

  • Ref No: 15
  • Part No: 9910392120
  • Qty Req: 1
Our price: $6.25 List price: $7.71

3300-0082 RV WASHER

  • Ref No: 16
  • Part No: 9910390312
  • Qty Req: 1
Our price: $2.85 List price: $3.52

3300-0082 RV O RING

  • Ref No: 18
  • Part No: 991039100V
  • Qty Req: 1
Our price: $14.26 List price: $17.60

3300-0082 RV SEAT

  • Ref No: 19
  • Part No: 9910391670
  • Qty Req: 1
Our price: $2.48 List price: $3.06

3300-0082 RV SPRING

  • Ref No: 20
  • Part No: 9910391690
  • Qty Req: 1
Our price: $6.92 List price: $8.55

3300-0082 RV PLUNGER

  • Ref No: 21
  • Part No: 9910391640
  • Qty Req: 1
Our price: $56.08 List price: $69.23

O-Ring

  • Ref No: 22
  • Part No: 9910780050
  • Qty Req: 1
Our price: $1.76 List price: $2.17

3300-0082 RV SEAT

  • Ref No: 23
  • Part No: 9910391610
  • Qty Req: 1
Our price: $24.50 List price: $30.25

O-Ring

  • Ref No: 24
  • Part No: 9910550350
  • Qty Req: 1
Our price: $1.79 List price: $2.21

3300-0082 RV HOSE BARB

  • Ref No: 26
  • Part No: 9910391620
  • Qty Req: 1
Our price: $14.88 List price: $18.37

3300-0082 RV HANDLE

  • Ref No: 27
  • Part No: 9910391720
  • Qty Req: 1
Our price: $19.91 List price: $24.58

Pin

  • Ref No: 28
  • Part No: 9910390330
  • Qty Req: 1
Our price: $2.52 List price: $3.11

3300-0082 RV RING

  • Ref No: 30
  • Part No: 9910391740
  • Qty Req: 2
Our price: $15.64 List price: $19.31

3300-0082 RV PIN

  • Ref No: 34
  • Part No: 9910391500
  • Qty Req: 2
Our price: $2.11 List price: $2.61

Bolt

  • Ref No: 35
  • Part No: 9910680560
  • Qty Req: 1
Our price: $6.25 List price: $7.71

3300-0082 RV BODY

  • Ref No: 37
  • Part No: 9910392390
  • Qty Req: 1
Our price: $179.82 List price: $222.00

Bolt

  • Ref No: 38
  • Part No: 99101040370
  • Qty Req: 4
Our price: $4.02 List price: $4.96

Washer

  • Ref No: 39
  • Part No: 9910550331
  • Qty Req: 4
Our price: $1.51 List price: $1.86

3300-0082 RV SPRING

  • Ref No: 41
  • Part No: 9910395060
  • Qty Req: 1
Our price: $8.97 List price: $11.07

3300-0082 RV LEVER

  • Ref No: 43
  • Part No: 9910391800
  • Qty Req: 1
Our price: $85.05 List price: $105.00

3300-0082 RV O RING

  • Ref No: 46
  • Part No: 9910392490
  • Qty Req: 1
Our price: $4.50 List price: $5.56

3300-0082 RV SEAT

  • Ref No: 49
  • Part No: 9910391840
  • Qty Req: 1
Our price: $13.62 List price: $16.81

O-Ring

  • Ref No: 50
  • Part No: 9910640070
  • Qty Req: 1
Our price: $1.51 List price: $1.86

3300-0082 RV RING

  • Ref No: 56
  • Part No: 9910394010
  • Qty Req: 1
Our price: $73.91 List price: $91.25

O-Ring

  • Ref No: 57
  • Part No: 9910640030
  • Qty Req: 1
Our price: $8.69 List price: $10.73

O-Ring

  • Ref No: 60
  • Part No: 9910250310
  • Qty Req: 3
Our price: $1.93 List price: $2.38

Ring Nut

  • Ref No: 61
  • Part No: 9910540540
  • Qty Req: 3
Our price: $18.08 List price: $22.32

Washer

  • Ref No: 63
  • Part No: 9910390311
  • Qty Req: 4
Our price: $2.56 List price: $3.16

Bolt

  • Ref No: 64
  • Part No: 9910180370
  • Qty Req: 4
Our price: $4.02 List price: $4.96

3300-0082 RV HOSE BARB

  • Ref No: 70
  • Part No: 9910392130
  • Qty Req: 2
Our price: $27.58 List price: $34.05

O-Ring

  • Ref No: 74
  • Part No: 9910540360
  • Qty Req: 3
Our price: $2.60 List price: $3.21

KNOB

  • Ref No: 75
  • Part No: 9910393860
  • Qty Req: 1
Our price: $21.17 List price: $26.14

PIN

  • Ref No: 76
  • Part No: 9910391190
  • Qty Req: 2
Our price: $6.38 List price: $7.88

3300-0082 RV NUT

  • Ref No: 77
  • Part No: 9910393870
  • Qty Req: 1
Our price: $21.38 List price: $26.40

GUIDE

  • Ref No: 78
  • Part No: 9910393880
  • Qty Req: 1
Our price: $45.18 List price: $55.78

3300-0082 RV O RING

  • Ref No: 79
  • Part No: 9910820490
  • Qty Req: 1
Our price: $1.60 List price: $1.97

3300-0082 RV O RING

  • Ref No: 80
  • Part No: 991077014V
  • Qty Req: 1
Our price: $4.95 List price: $6.11

STEM

  • Ref No: 81
  • Part No: 9910393890
  • Qty Req: 1
Our price: $99.63 List price: $123.00

O RING

  • Ref No: 82
  • Part No: 9910660190
  • Qty Req: 1
Our price: $1.64 List price: $2.03

O-Ring

  • Ref No: 88
  • Part No: 9910780050
  • Qty Req: 1
Our price: $1.76 List price: $2.17

3300-0082 RV ADAPTER

  • Ref No: 89
  • Part No: 9910393690
  • Qty Req: 1
Our price: $23.15 List price: $28.58

3300-0082 RV SEAT

  • Ref No: 93
  • Part No: 9910391890
  • Qty Req: 1
Our price: $61.76 List price: $76.25

Gasket Seal O-Ring

  • Ref No: 94
  • Part No: 9910320511
  • Qty Req: 1
Our price: $4.50 List price: $5.56
