300PIH13 3

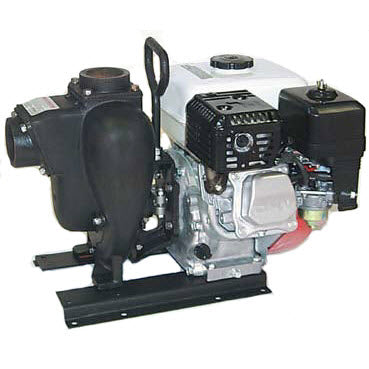

300PIH13 3" Self Priming Cast Iron w/ 13 HP Electric Start Honda

Item Code:
300PIH13
Weight:
150.0 lb
Manufacturer:
Banjo
Our price:
$2,056.24
List price:
$4,838.21
Overview:

300PIH13 Banjo 300 Series 3" Self Priming Cast Iron w/ 13 HP Electric Start Honda

330 gpm, 60 psi. 3" NPT Inlet/Outlet.

Features:

-Cast iron construction for rugged dependable service.

-Stainless steel shaft sleeve to protect engine shaft.

-Carbon ceramic seal with stainless steel cup and spring with FKM (Viton) rubber.

-Replaceable inlet and outlet flanges

-Dynamically balanced impeller.

**Truck Shipments Only**

Download Product Manual

Parts breakdown

Parts breakdown parts

Parts list

NPT Outlet Flange

  • Ref No: 1
  • Part No: 18008
  • Qty Req: 1
Our price: $40.72 List price: $81.43

NPT Intlet Flange

  • Ref No: 2
  • Part No: 18012
  • Qty Req: 1
Our price: $45.50 List price: $91.00

C-Flange Adapter

  • Ref No: 3
  • Part No: 18048
  • Qty Req: 1
Our price: $157.01 List price: $314.01

Prime/Drain Plug

  • Ref No: 4
  • Part No: 13777
  • Qty Req: 2
Our price: $2.97 List price: $5.94

5/8" SS Jam Nut

  • Ref No: 7
  • Part No: 18034
  • Qty Req: 1
Our price: $2.65 List price: $5.29

Wear Plate

  • Ref No: 8
  • Part No: 18004
  • Qty Req: 1
Our price: $43.93 List price: $87.86

EPDM Outlet Gasket

  • Ref No: 9
  • Part No: 18009
  • Qty Req: 1
Our price: $6.72 List price: $13.44

18013

  • Ref No: 10
  • Part No: 18013
  • Qty Req: 1
Our price: $33.31 List price: $66.61

Adapter Gasket

  • Ref No: 11
  • Part No: 18021A
  • Qty Req: 1
Our price: $5.44 List price: $10.88

3/8"-16 x 1.25" HHCS

  • Ref No: 12
  • Part No: 18010SS
  • Qty Req: 8
Our price: $1.37 List price: $2.74

Handle

  • Ref No: 13
  • Part No: 18033
  • Qty Req: 1
Our price: $13.82 List price: $27.64

Pump Housing

  • Ref No: 15
  • Part No: 18001A
  • Qty Req: 1
Our price: $423.89 List price: $640.00

Lock Washer

  • Ref No: 18
  • Part No: V20018
  • Qty Req: 8&6
Our price: $0.69 List price: $1.37

3/8" x 24 SS Hex Nut

  • Ref No: 19
  • Part No: 18032
  • Qty Req: 2
Our price: $0.71 List price: $1.18

1" Shaft

  • Ref No: 20
  • Part No: 18504
  • Qty Req: 1
Our price: $45.81 List price: $91.61

Bearing Pedestal

  • Ref No: 21
  • Part No: 18500
  • Qty Req: 1
Our price: $273.79 List price: $547.58

Bolt

  • Ref No: 22
  • Part No: 17704
  • Qty Req: 4
Our price: $2.62 List price: $5.24

Severe Duty Seal

  • Ref No: 23
  • Part No: 18025SD
  • Qty Req: 1
Our price: $294.01 List price: $588.01

3/8" 16 SS Hex Nut

  • Ref No: 24
  • Part No: V20019
  • Qty Req: 6
Our price: $0.75 List price: $1.49
