3/4" 50 Mesh Nylon Line Strainer (Buna Gasket, Clear Bowl)

Item Code:
0.48 lb
Our price:
List price:

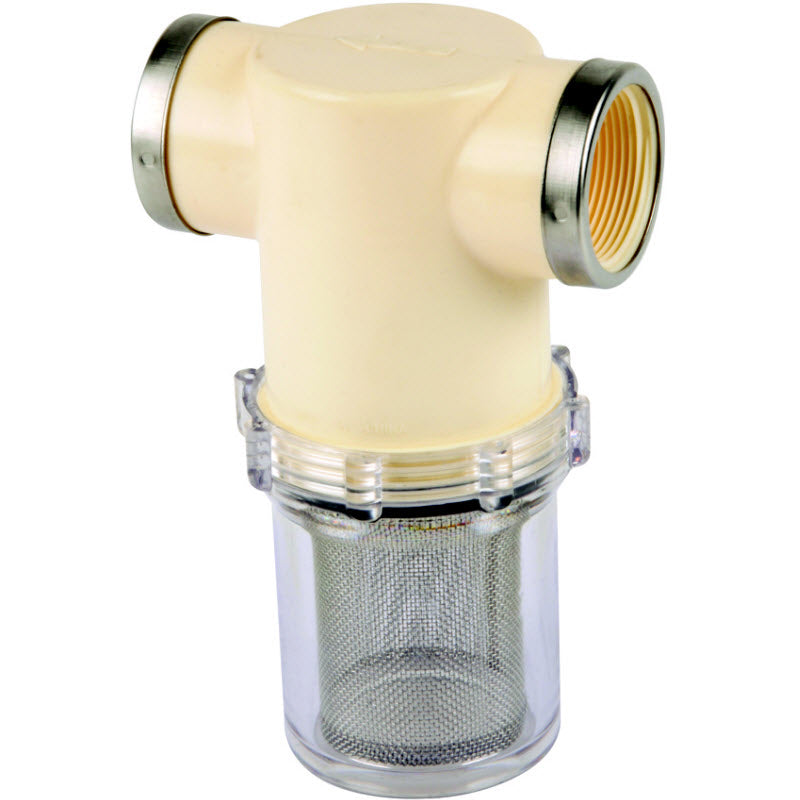

3350-0034P Hypro 3/4" (F) Nylon Line Strainer.

Clear bowl, 50 mesh screen, Buna-N gasket.

Nylon line strainers are ideal for suction or pressure applications. They are rated for higher pressure applications, up to 150 PSI at 70 degrees Fahrenheit (10 bar at 20 degrees Celsius) and 100 PSI at 125 degrees Fahrenheit (7 bar at 50 degrees Celsius). The maximum temperature rating is 140 degrees Fahrenheit (60 degrees Celsius).

The Nylon line strainers have white bodies that are made out of type 6 nylon. The bowl is available in white type 6 nylon or clear polyamide, which allows for visual inspection without disassembly. Choose from 20, 50, or 80-mesh stainless steel screens and Buna-N or Viton gaskets.

The 1/2", 3/4", 1", 1-1/4", and 1-1/2" models have internal (NPT) female ports and are available with white type 6 nylon or clear polyamide bowls. Add suffix "P" to part number (ex. 3350-0057P).

Parts breakdown

 Parts breakdown parts
