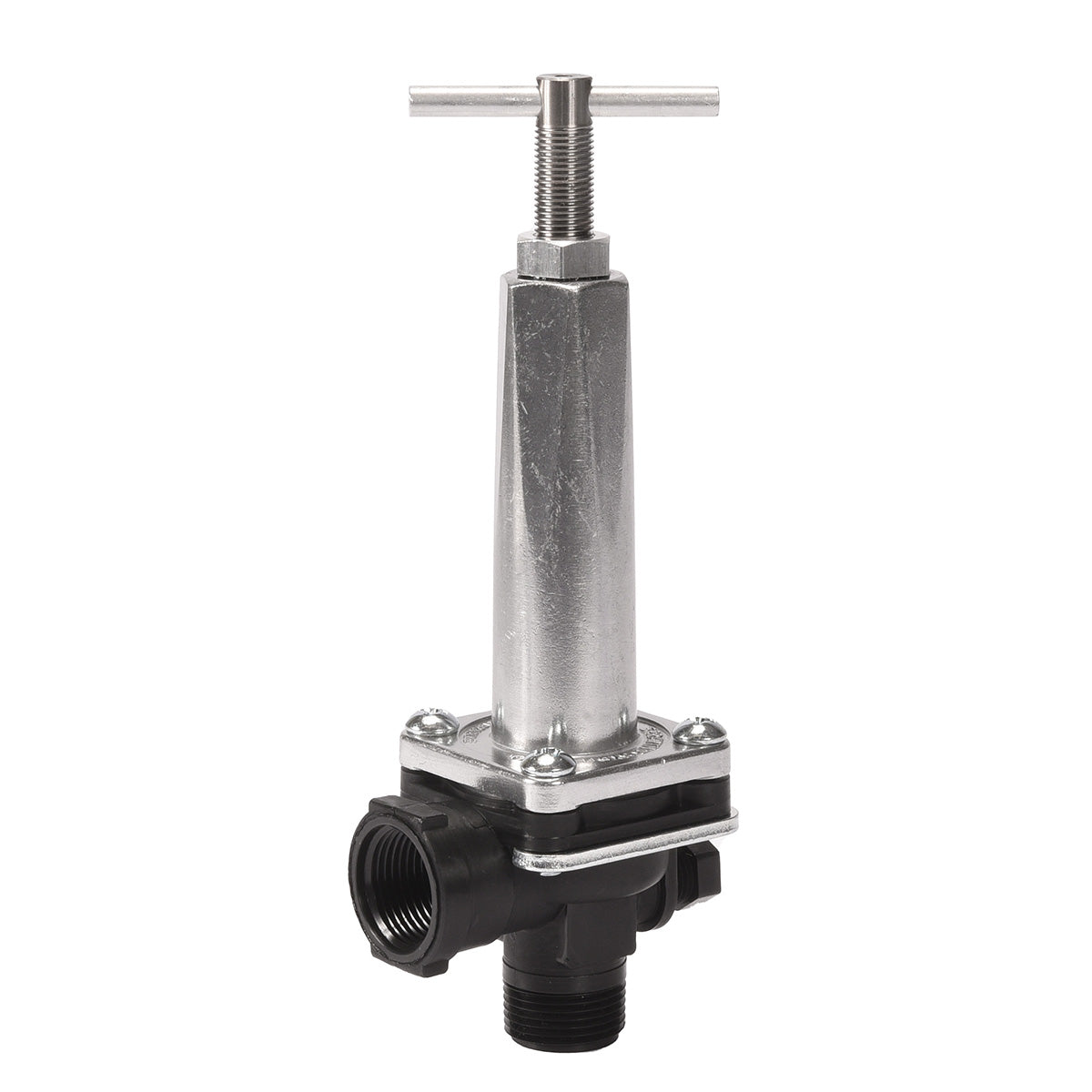

3/4" 300 PSI Relief Valve

Item Code:
846034
Weight:
1.01 lb
Manufacturer:
Spraying Systems Company/TeeJet
Our price:
$54.50
List price:
$77.86
Overview:

If you're looking to gain more control over spray line pressures, this diaphragm-style 3/4" 300 PSI relief valve can help. With this nylon and aluminum relief valve in place, excess liquid returns back to its source instead of being wasted because of elevated pressure. Optionally add a pressure gauge to the open port.

Manufacturer Description:

Bypasses excess liquid. Adjustable to maintain control of line pressure at any pressure within the valve's operating range. Selected pressure setting firmly held in place by locknut. Extra large valve passages to handle large flows. Features: Diaphragm design pressure relief valve. Aluminum housing with nylon inlet body. FairpreneĀ® diaphragm seals off all working parts from contact with liquid and provides responsive, chatter-free operation. Features additional port for pressure gauge installation.

Features:

  • Construction: Aluminum and nylon
  • Max pressure rating: 300 psi
  • Max flow rate: 70 gpm
  • Port sizes: 3/4" MNPT, 3/4" FNPT, 1/4" FNPT gauge port
  • Weight: 1.5 lbs

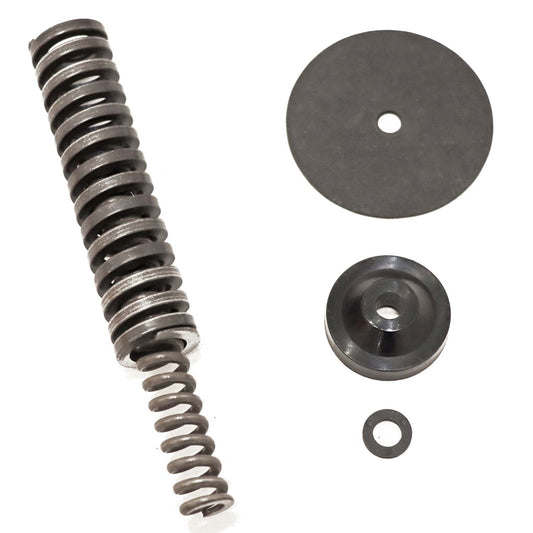

Parts breakdown

Parts list

  • Ref No: 2
  • Part No: CP5898AL
  • Qty Req: 1
Our price: $1.70 List price: $2.26
  • Ref No: 3
  • Part No: CP1309378IZP
  • Qty Req: 4
Our price: $1.44 List price: $1.92
  • Ref No: 4
  • Part No: CP8362AL
  • Qty Req: 1
Our price: $19.33 List price: $25.77
  • Ref No: 6
  • Part No: CP8369NYB
  • Qty Req: 1
Our price: $2.64 List price: $3.52
  • Ref No: 8
  • Part No: CP83741
  • Qty Req: 1
Our price: $6.01 List price: $7.07
  • Ref No: 11
  • Part No: CP8366FA
  • Qty Req: 1
Our price: $4.40 List price: $5.87
  • Ref No: 12
  • Part No: CP8365304SS
  • Qty Req: 1
Our price: $4.25 List price: $5.67
  • Ref No: 14
  • Part No: CP1309358SS
  • Qty Req: 1
Our price: $2.97 List price: $3.49
  • Ref No: 15
  • Part No: CP8389304SS
  • Qty Req: 1
Our price: $6.17 List price: $8.23
  • Ref No: 16
  • Part No: 836134NYB
  • Qty Req: 1
Our price: $13.57 List price: $18.09
  • Ref No: 17
  • Part No: CP9017IZP
  • Qty Req: 1
Our price: $6.94 List price: $9.25
