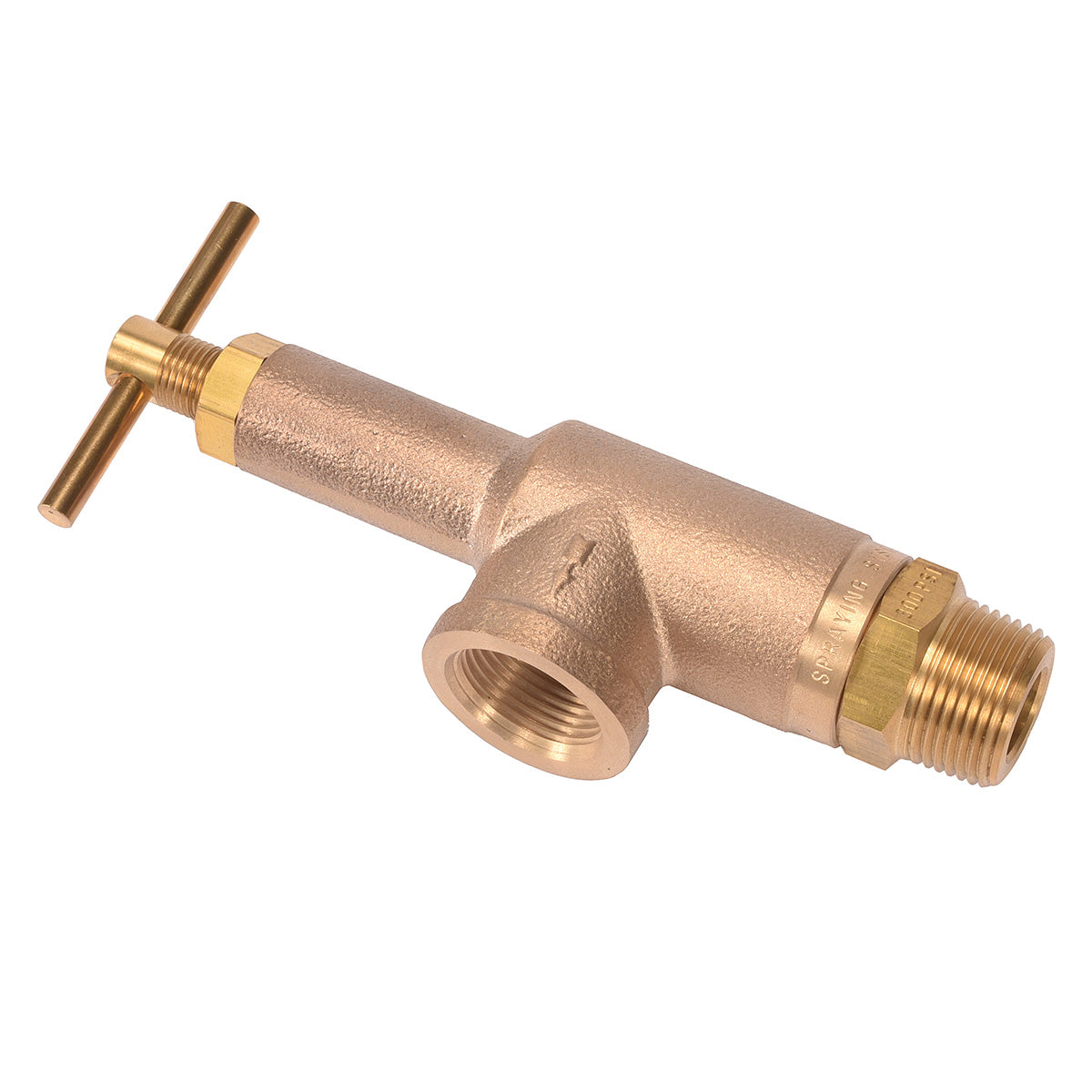

3/4" 300 PSI Brass Relief Valve

3/4" 300 PSI Brass Relief Valve

Brand:
TeeJet
Weight:
1.27 lb
Item #
681534300
1 review
Skip to product information
1 of 1

3/4" 300 PSI Brass Relief Valve

3/4" 300 PSI Brass Relief Valve

Brand:
TeeJet
Weight:
1.27 lb
Item #
681534300
1 review

Regular price $66.32
Sale price $66.32 Regular price List Price: $110.53

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 199 points with this purchase.

View full details

Collapsible content

Product Overview

The 3/4" 300 PSI Brass Relief Valve is dependable and convenient, providing selective management with an advanced design that allows for flow control at all pressures within the specified operating range. Specific degrees of pressure can be locked firmly into place, and this model allows extra liquid to be bypassed. Spacious valve channels easily handle large flows. This valve is made of brass to ensure long wear.

Manufacturer description

Bypasses excess liquid. Adjustable to maintain control of line pressure at any pressure within the valve's operating range. Selected pressure setting firmly held in place by locknut. Extra-large valve passages to handle large flows. Also available in 1/2" and in 50 and 700 psi.

Features

  • Construction: Brass
  • Seat material: Brass
  • Max pressure rating: 300 psi
  • Port sizes: 3/4" MNPT inlet, 3/4" FNPT outlet
  • Weight: 1.5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Adjusting Screw Assembly
    • Ref No: 1
    • Part No: CP5896
    • Qty Req: 1
    Our price: $5.39 List price: $8.98
  • Locknut
    • Ref No: 2
    • Part No: CP5898
    • Qty Req: 1
    Our price: $1.67 List price: $2.78
  • Body
    • Ref No: 3
    • Part No: CP681834
    • Qty Req: 1
    Our price: $45.47 List price: $75.79
  • Spring Retainer
    • Ref No: 4
    • Part No: CP6545
    • Qty Req: 1
    Our price: $1.67 List price: $2.78
  • Gasket, Buna-N
    • Ref No: 5
    • Part No: CP5899BU
    • Qty Req: 1
    Our price: $1.38 List price: $2.30
  • Inside Spring
    • Ref No: 6
    • Part No: CP6547SS
    • Qty Req: 1
    Our price: $2.89 List price: $4.81
  • Outside Spring
    • Ref No: 7
    • Part No: CP6546SS
    • Qty Req: 1
    Our price: $3.31 List price: $5.52
  • Guide Seat
    • Ref No: 8
    • Part No: CP6544
    • Qty Req: 1
    Our price: $6.84 List price: $11.40
  • 3/4" Inlet Adapter
    • Ref No: 9
    • Part No: CP7059
    • Qty Req: 1
    Our price: $9.06 List price: $15.10
