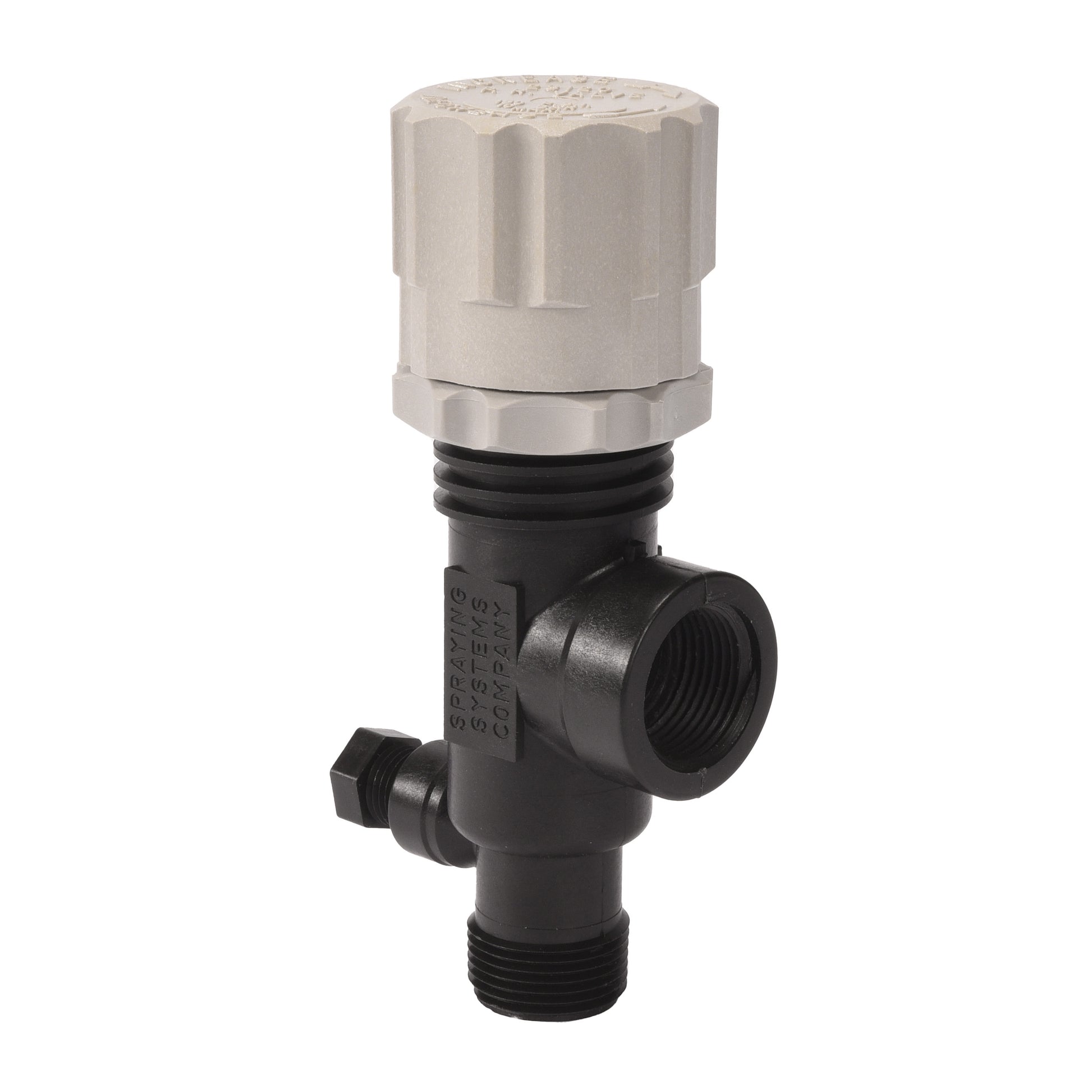

3/4" 150 PSI Poly Relief Valve

3/4" 150 PSI Poly Relief Valve

Brand:
TeeJet
Weight:
0.44 lb
Item #
2312034PP
1 review
1 1

3/4" 150 PSI Poly Relief Valve

3/4" 150 PSI Poly Relief Valve

Brand:
TeeJet
Weight:
0.44 lb
Item #
2312034PP
1 review

$32.08
$32.08 List Price: $53.47

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 96 points with this purchase.

See Details

View full details

Product Overview

A relief valve is designed to control the pressure in a system. The 3/4" 150 PSI Poly Relief Valve releases some of the pressure by allowing pressurized fluid to flow out an auxiliary passage. The high chemical resistance makes this product a good choice for a variety of liquids. You may be able to use this valve in a commercial, industrial or agricultural setting.

Manufacturer description

302 S.S. spring and EPDM O-Ring, excellent chemical resistance, 1/4" port for pressure gauge pipe plug included. Bypasses excess liquid. Adjustable to maintain control of line pressure at any pressure within the valve's operating range. Selected pressure setting firmly held in place by locknut. Extra large valve passages to handle large flows.

Resources

Download Product Manual

Features

  • Construction: Polypropylene
  • Max pressure rating: 150 psi
  • Port sizes: 3/4" MNPT inlet, 3/4" FNPT outlet, 1/4" FNPT gauge port
  • Weight: 1 lb

Parts breakdown

Diagram

Diagram parts

Parts list

  • Adjusting Cap, Nylon
    • Ref No: 1
    • Part No: CP23122NY
    • Qty Req: 1
    Our price: $10.28 List price: $17.13
  • Spring Retainer, Poly
    • Ref No: 2
    • Part No: CP23124PP
    • Qty Req: 1
    Our price: $5.24 List price: $8.73
  • Retaining Pin, 302SS
    • Ref No: 3
    • Part No: CP23126302SS
    • Qty Req: 1
    Our price: $3.26 List price: $5.44
  • O-Ring
    • Ref No: 4
    • Part No: CP771715EPR
    • Qty Req: 1
    Our price: $3.08 List price: $5.13
  • Spring
    • Ref No: 5
    • Part No: CP23127302SS
    • Qty Req: 1
    Our price: $7.37 List price: $12.29
  • Guide Seat, Poly
    • Ref No: 6
    • Part No: CP23125PP
    • Qty Req: 1
    Our price: $4.06 List price: $6.76
  • Lock Ring, Poly
    • Ref No: 7
    • Part No: CP23123PP
    • Qty Req: 1
    Our price: $6.90 List price: $8.12
  • 3/4" Body, Poly
    • Ref No: 8
    • Part No: CP231211PP
    • Qty Req: 1
    Our price: $18.83 List price: $22.15
  • 1/4" Pipe Plug
    • Ref No: 9
    • Part No: 840014PPB
    • Qty Req: 1
    Our price: $1.40 List price: $2.33

Related Products

Customer Reviews
5.0 Based on 1 Reviews
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
MP
11/13/2019
Mike P.
  • Use Case Agriculture
  • Ease of Use Easy
  • Was Customer Service Helpful? I didn't interact with Customer Service
Works as expected

Replaced an old leaking similar valve on my 3 pointer sprayer. Replacement simple and easy. Everything works as it should.
