1/2" 150 PSI Poly Relief Valve

1/2" 150 PSI Poly Relief Valve

Brand:
TeeJet
Weight:
0.43 lb
Item #
2312012PP
2 reviews
Skip to product information
1 of 1

1/2" 150 PSI Poly Relief Valve

1/2" 150 PSI Poly Relief Valve

Brand:
TeeJet
Weight:
0.43 lb
Item #
2312012PP
2 reviews

Regular price $32.08
Sale price $32.08 Regular price List Price: $53.47

Earn 96 points with this purchase.

View full details

Collapsible content

Product Overview

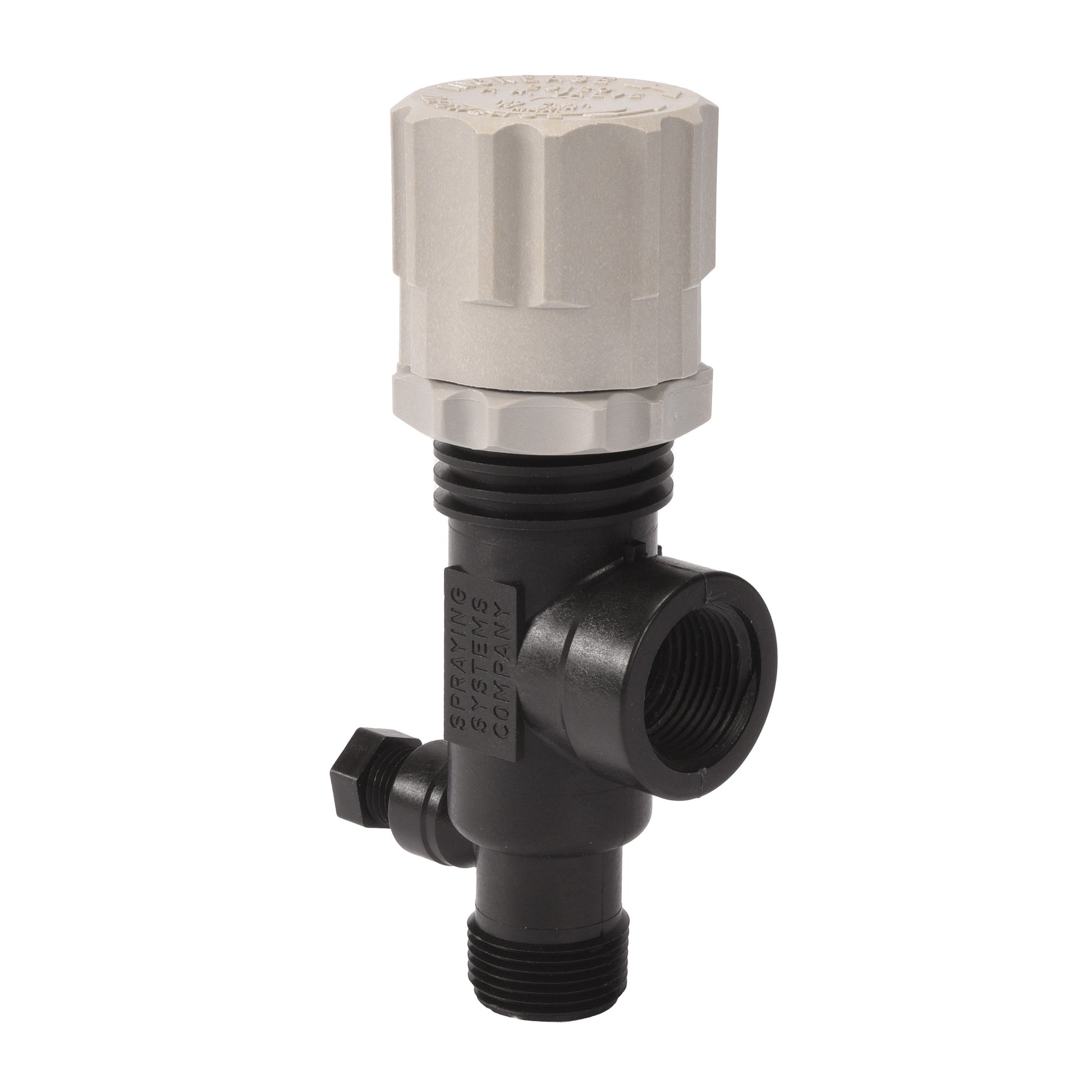

Select this 1/2" 150 PSI Poly Relief Valve made by Spraying Systems Company for durability and performance in your sprayer assemblies. Made from polypropylene, it's fabricated to handle a maximum pressure of 150 PSI. With its precision-tooled construction and unparalleled resistance to chemical damage, this valve is a key component in helping you regulate line pressure.

Manufacturer description

302 S.S. spring and EPDM O-Ring, excellent chemical resistance, 1/4" port for pressure gauge pipe plug included. Bypasses excess liquid. Adjustable to maintain control of line pressure at any pressure within the valve's operating range. Selected pressure setting firmly held in place by locknut. Extra large valve passages to handle large flows.

Features

  • Construction: Polypropylene
  • Max pressure rating: 150 psi
  • Port sizes: 1/2" MNPT inlet, 1/2" FNPT outlet, 1/4" FNPT gauge port
  • Weight: 1 lb

Parts breakdown

Diagram

Diagram parts

Parts list

  • Adjusting Cap, Nylon
    • Ref No: 1
    • Part No: CP23122NY
    • Qty Req: 1
    Our price: $10.28 List price: $17.13
  • Spring Retainer, Poly
    • Ref No: 2
    • Part No: CP23124PP
    • Qty Req: 1
    Our price: $5.24 List price: $8.73
  • Retaining Pin, 302SS
    • Ref No: 3
    • Part No: CP23126302SS
    • Qty Req: 1
    Our price: $3.26 List price: $5.44
  • O-Ring
    • Ref No: 4
    • Part No: CP771715EPR
    • Qty Req: 1
    Our price: $3.08 List price: $5.13
  • Spring
    • Ref No: 5
    • Part No: CP23127302SS
    • Qty Req: 1
    Our price: $7.37 List price: $12.29
  • Guide Seat, Poly
    • Ref No: 6
    • Part No: CP23125PP
    • Qty Req: 1
    Our price: $4.06 List price: $6.76
  • Lock Ring, Poly
    • Ref No: 7
    • Part No: CP23123PP
    • Qty Req: 1
    Our price: $6.90 List price: $8.12
  • 1/2" Body, Poly
    • Ref No: 8
    • Part No: CP231281PP
    • Qty Req: 1
    Our price: $19.34 List price: $32.23
  • 1/4" Pipe Plug
    • Ref No: 9
    • Part No: 840014PPB
    • Qty Req: 1
    Our price: $1.40 List price: $2.33
