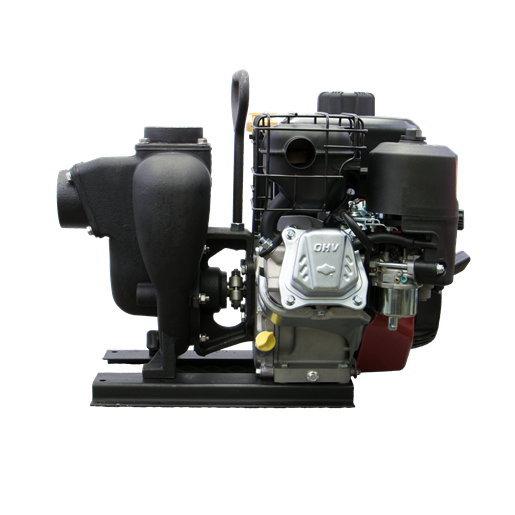

222PIH6 2" Self Priming Cast Iron w/ 6.5 Honda Engine

222PIH6 2" Self Priming Cast Iron w/ 6.5 Honda Engine

Brand:
Banjo
Weight:
150.0 lb
Item #
222PIH6
Skip to product information
1 of 1

222PIH6 2" Self Priming Cast Iron w/ 6.5 Honda Engine

222PIH6 2" Self Priming Cast Iron w/ 6.5 Honda Engine

Brand:
Banjo
Weight:
150.0 lb
Item #
222PIH6

Regular price $1,379.86
Sale price $1,379.86 Regular price List Price: $3,246.74

Earn 4,140 points with this purchase.

View full details

Collapsible content

Product Overview

222PIH6 Banjo 222 Series 2" Cast Iron Self Priming Pump w/ 6.5 HP Honda Engine.

225 gpm, 45 psi. 2" NPT Inlet x 2" NPT Outlet.

Features:

-Cast Iron construction for rugged dependable service.

-Carbon ceramic seal with stainless steel cup and spring with FKM (Viton type) rubber.

-Replacable inlet and outlet flanges.

-Dynamically balanced impeller.

-Pump end separated from engine.

-Heavy duty slinger seal on motor shaft.

-Large weep holes between pump end and engine.

-"V" shaped for quicker priming.

**Truck Shipments Only**

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing Pedestal Assembly
    • Ref No: 1
    • Part No: 12882A
    • Qty Req: 1
    Our price: $170.73 List price: $341.45
  • 1/2" Jam Nut
    • Ref No: 2
    • Part No: 17010
    • Qty Req: 1
    Our price: $1.08 List price: $2.16
  • Handle
    • Ref No: 3
    • Part No: 15022
    • Qty Req: 1
    Our price: $11.45 List price: $22.89
  • SS Impeller Bolt
    • Ref No: 4
    • Part No: 12765A
    • Qty Req: 1
    Our price: $14.11 List price: $28.21
  • Prime/Drain Plug O-Ring
    • Ref No: 5
    • Part No: 13778
    • Qty Req: 2
    Our price: $1.52 List price: $3.03
  • Prime/Drain Plug
    • Ref No: 6
    • Part No: 13777
    • Qty Req: 2
    Our price: $3.57 List price: $7.13
  • 5/16" Lock Washer
    • Ref No: 7
    • Part No: V10118
    • Qty Req: 9
    Our price: $0.83 List price: $1.65
  • 5 Vane Impeller
    • Ref No: 8
    • Part No: 15772
    • Qty Req: 1
    Our price: $55.78 List price: $111.55
  • Poly Pump Slinger
    • Ref No: 9
    • Part No: 12716
    • Qty Req: 1
    Our price: $4.71 List price: $9.41
  • Impeller Bolt Gasket
    • Ref No: 11
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.28 List price: $2.55
  • Body O-Ring
    • Ref No: 12
    • Part No: 12719A
    • Qty Req: 1
    Our price: $11.21 List price: $22.41
  • Poly Pump Check Valve
    • Ref No: 13
    • Part No: 12705
    • Qty Req: 1
    Our price: $12.67 List price: $25.33
  • Volute
    • Ref No: 14
    • Part No: 15702
    • Qty Req: 1
    Our price: $84.06 List price: $168.11
  • Rear Bracket
    • Ref No: 15
    • Part No: 15703
    • Qty Req: 1
    Our price: $99.34 List price: $198.67
  • Impeller Key
    • Ref No: 16
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.44 List price: $2.88
  • SS Rear Bracket Washer
    • Ref No: 17
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.73 List price: $1.46
  • O-Ring for Seal Assembly
    • Ref No: 18
    • Part No: 12710
    • Qty Req: 1
    Our price: $2.97 List price: $5.93
  • O-Ring for Screw Head
    • Ref No: 19
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.73 List price: $1.46
  • FKM (Viton) Seal Assembly w/ 316SS Cup & Spring
    • Ref No: 20
    • Part No: 12713V
    • Qty Req: 1
    Our price: $57.12 List price: $114.24
  • Severe Duty Seal
    • Ref No: 20
    • Part No: 12713SD
    • Qty Req: 1
    Our price: $184.08 List price: $368.16
  • Body
    • Ref No: 21
    • Part No: 15712
    • Qty Req: 1
    Our price: $160.47 List price: $320.93
  • Gasket
    • Ref No: 22
    • Part No: 17013
    • Qty Req: 2
    Our price: $5.73 List price: $11.45
  • Threaded Flange
    • Ref No: 23
    • Part No: 17000
    • Qty Req: 2
    Our price: $25.09 List price: $50.17
  • Screw
    • Ref No: 24
    • Part No: 17019
    • Qty Req: 8
    Our price: $1.08 List price: $2.16
