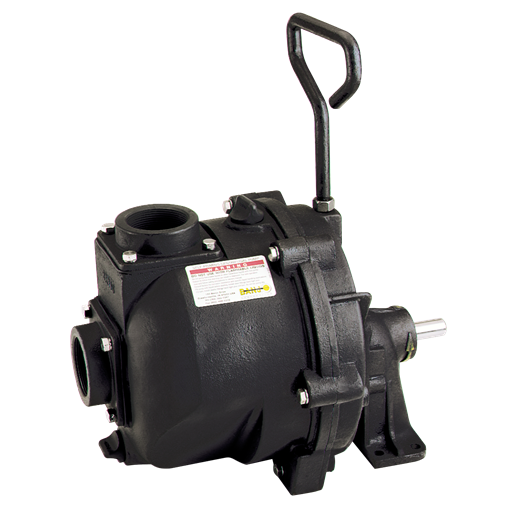

222PBI 2" Cast Iron Bearing Pedestal 3/4" Keyed Shaft

222PBI 2" Cast Iron Bearing Pedestal 3/4" Keyed Shaft

Brand:
Banjo
Weight:
20.0 lb
Item #
222PBI
  • 222PBI 2" Cast Iron Bearing Pedestal 3/4" Keyed Shaft
1 1

222PBI 2" Cast Iron Bearing Pedestal 3/4" Keyed Shaft

222PBI 2" Cast Iron Bearing Pedestal 3/4" Keyed Shaft

Brand:
Banjo
Weight:
20.0 lb
Item #
222PBI

$671.04
$671.04 List Price: $1,550.41

Earn 2,013 points with this purchase.

See Details

View full details

Product Overview

222PBI Banjo 222 Series 2" Cast Iron Bearing Pedestal with 3/4" Shaft Straight Keyed

225 gpm, 45 psi. 2" NPT Inlet x 2" NPT Outlet.

Resources

Download Product Manual

Features

  • 2" Cast iron pedestal pump
  • ¾" straight keyed shaft
  • Carbon veramic seal with stainless steel cup and spring with FKM rubber
  • Cast iron construction for rugged dependable service
  • Dynamically balanced impeller
  • Easily adaptable to electric motor (flexible coupling not included)
  • Replaceable inlet and outlet flanges

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing Pedestal Assembly
    • Ref No: 1
    • Part No: 12882A
    • Qty Req: 1
    Our price: $215.87 List price: $424.07
  • 1/2" Jam Nut
    • Ref No: 2
    • Part No: 17010
    • Qty Req: 1
    Our price: $1.27 List price: $2.52
  • Handle
    • Ref No: 3
    • Part No: 15022
    • Qty Req: 1
    Our price: $16.37 List price: $32.71
  • SS Impeller Bolt
    • Ref No: 4
    • Part No: 12765A
    • Qty Req: 1
    Our price: $25.37 List price: $33.24
  • Prime/Drain Plug O-Ring
    • Ref No: 5
    • Part No: 13778
    • Qty Req: 2
    Our price: $1.80 List price: $3.59
  • Prime/Drain Plug
    • Ref No: 6
    • Part No: 13777
    • Qty Req: 2
    Our price: $3.95 List price: $7.89
  • 5/16" Lock Washer
    • Ref No: 7
    • Part No: V10118
    • Qty Req: 9
    Our price: $1.02 List price: $1.95
  • 5 Vane Impeller
    • Ref No: 8
    • Part No: 15772
    • Qty Req: 1
    Our price: $72.06 List price: $144.11
  • Poly Pump Slinger
    • Ref No: 9
    • Part No: 12716
    • Qty Req: 1
    Our price: $5.22 List price: $10.41
  • Impeller Bolt Gasket
    • Ref No: 11
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.44 List price: $2.85
  • Body O-Ring
    • Ref No: 12
    • Part No: 12719A
    • Qty Req: 1
    Our price: $12.83 List price: $25.65
  • Poly Pump Check Valve
    • Ref No: 13
    • Part No: 12705
    • Qty Req: 1
    Our price: $14.02 List price: $28.01
  • Volute
    • Ref No: 14
    • Part No: 15702
    • Qty Req: 1
    Our price: $108.60 List price: $217.19
  • Rear Bracket
    • Ref No: 15
    • Part No: 15703
    • Qty Req: 1
    Our price: $118.70 List price: $237.38
  • Impeller Key
    • Ref No: 16
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.71 List price: $3.40
  • SS Rear Bracket Washer
    • Ref No: 17
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.90 List price: $1.79
  • O-Ring for Seal Assembly
    • Ref No: 18
    • Part No: 12710
    • Qty Req: 1
    Our price: $3.51 List price: $7.01
  • O-Ring for Screw Head
    • Ref No: 19
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.81 List price: $1.61
  • FKM (Viton) Seal Assembly w/ 316SS Cup & Spring
    • Ref No: 20
    • Part No: 12713V
    • Qty Req: 1
    Our price: $63.19 List price: $109.80
  • Severe Duty Seal
    • Ref No: 20
    • Part No: 12713SD
    • Qty Req: 1
    Our price: $202.64 List price: $405.25
  • Body
    • Ref No: 21
    • Part No: 15712
    • Qty Req: 1
    Our price: $207.31 List price: $414.61
  • Gasket
    • Ref No: 22
    • Part No: 17013
    • Qty Req: 2
    Our price: $6.10 List price: $12.19
  • Threaded Flange
    • Ref No: 23
    • Part No: 17000
    • Qty Req: 2
    Our price: $32.41 List price: $64.82
  • Screw
    • Ref No: 24
    • Part No: 17019
    • Qty Req: 8
    Our price: $1.28 List price: $2.54
