1-1/4" 20 Mesh Nylon Line Strainer (Buna Gasket)

1-1/4" 20 Mesh Nylon Line Strainer (Buna Gasket)

Brand:
Hypro
Weight:
1.05 lb
Item #
33500071
Skip to product information
1 of 1

1-1/4" 20 Mesh Nylon Line Strainer (Buna Gasket)

1-1/4" 20 Mesh Nylon Line Strainer (Buna Gasket)

Brand:
Hypro
Weight:
1.05 lb
Item #
33500071

Regular price $44.00
Sale price $44.00 Regular price List Price: $54.32

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 132 points with this purchase.

View full details

Collapsible content

Product Overview

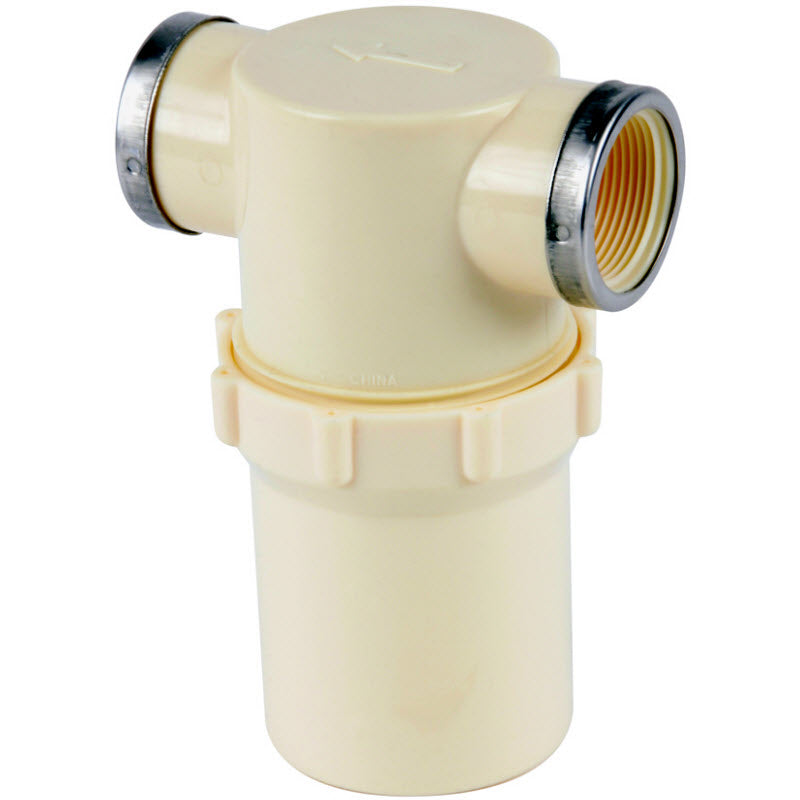

3350-0071 Hypro 1-1/4" (F) Nylon Line Strainer.

White bowl, 20 mesh screen, Buna-N gasket.

Nylon line strainers are ideal for suction or pressure applications. They are rated for higher pressure applications, up to 150 PSI at 70 degrees Fahrenheit (10 bar at 20 degrees Celsius) and 100 PSI at 125 degrees Fahrenheit (7 bar at 50 degrees Celsius). The maximum temperature rating is 140 degrees Fahrenheit (60 degrees Celsius).

The Nylon line strainers have white bodies that are made out of type 6 nylon. The bowl is available in white type 6 nylon or clear polyamide, which allows for visual inspection without disassembly. Choose from 20, 50, or 80-mesh stainless steel screens and Buna-N or Viton gaskets.

The 1/2", 3/4", 1", 1-1/4", and 1-1/2" models have internal (NPT) female ports and are available with white type 6 nylon or clear polyamide bowls. Add suffix "P" to part number (ex. 3350-0057P).

Parts breakdown

Diagram

Diagram parts
