Zeta-170/CC w/ Dual 1-3/8" Male Six Spline PTO Shaft (Formerly RO-160 CC)

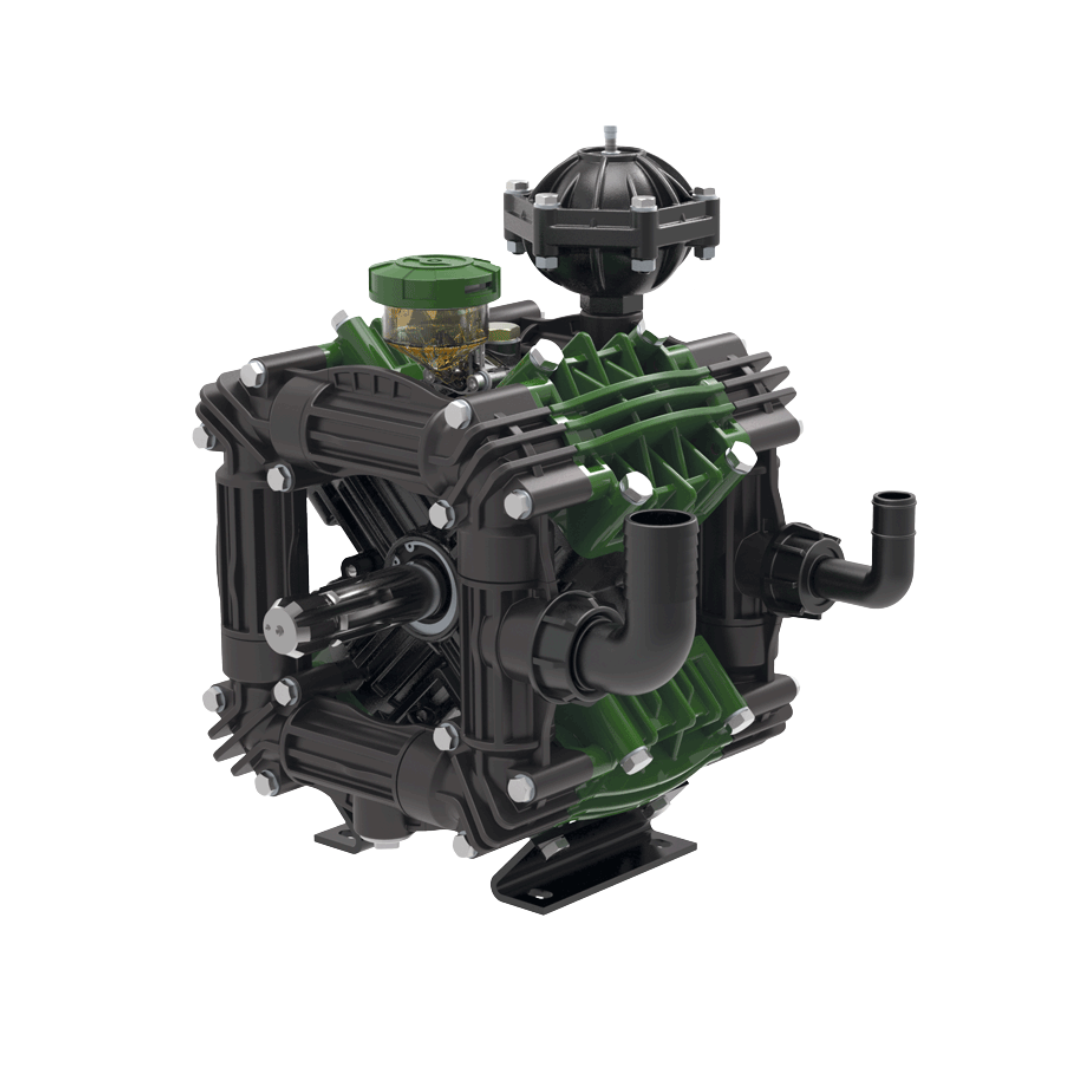

The Udor ZETA-170 C/C Diaphragm Pump is a six diaphragm, low-pressure pump with a dual six-spline male PTO shaft, pulsation dampener, and mounting rails. The unit handles easily, making it an excellent choice for a variety of horticultural and agricultural spraying applications, including pest and weed control, fluid transfer, dust suppression, lawn care, de-icing materials, liquid fertilizers, and other hard-to-handle fluids.

Four diaphragm pump with pulsation dampener, mounting rails, and dual 1-3/8" six spline male PTO shaft. Features plasticized aluminum heads and glass-filled nylon manifolds. Control units not included.

Excellent for horticultural and agricultural spraying applications. Liquid handling parts are plasticized aluminum, glass-filled nylon, and stainless steel. Built-in pulsation dampener standard on all models. Standard ZETA 170 C/C includes 1-3/8" six splined male PTO shaft; ZETA 170 C/C includes dual thru-shaft. Can run dry. Features visual oil sight gauges, large capacity oil bath crank cases with drain plugs, self-priming operation, stainless steel check valves, and one-piece stainless steel diaphragm bolts with heavy duty pre-formed urethane diaphragms. Compatible with liquid fertilizers, abrasive materials, suspension products, pesticides, de-icing materials, and other hard-to-handle fluids. Adapts to PTO, gas engine, hydraulic, and belt drive applications. Maximum fluid temperature 140°F; custom pumps available to 200°F. Over 50 years of diaphragm pump experience.

• 45 GPM Max Flow
• 300 PSI
• 1-1/2" Hose Barb Inlet
• 1" Hose Barb Discharge
• GreenTech Diaphragm Material
• 140°F Max Temperature
• Dual 1-3/8" Male Six Spline PTO Thru-Shaft
