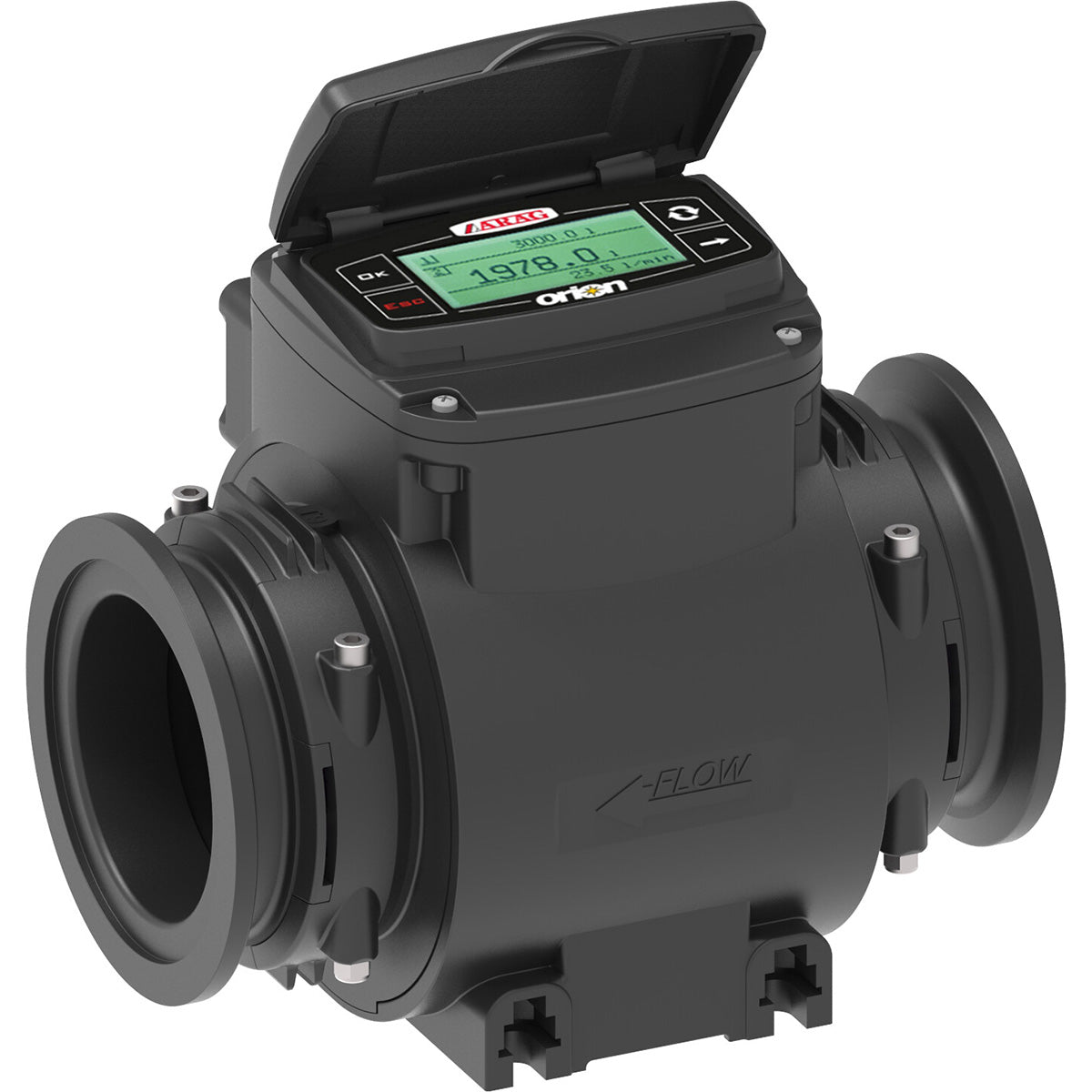

Orion X Visualflow Electromagnetic Flowmeter - 3" Full Port Manifold Flange Couplings
Orion X Visualflow Electromagnetic Flowmeter - 3" Full Port Manifold Flange Couplings
Brand:
ARAG
Weight:
8.0 lb
Item #
46299B91
Orion X Visualflow Electromagnetic Flowmeter - 3" Full Port Manifold Flange Couplings
Orion X Visualflow Electromagnetic Flowmeter - 3" Full Port Manifold Flange Couplings
Brand:
ARAG
Weight:
8.0 lb
Item #
46299B91
Regular price
$2,310.29
Sale price
$2,310.29
Regular price
List Price:
$3,850.48
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Earn 6,931 points with this purchase.
Collapsible content
Product Overview
ARAG Orion X Flowmeters are precise and easy to install. The most common flowmeter used in agricultural spraying applications. This version has the easy to read digital screen, 3" internal passage and measures flow rates from 16 to 660 gpm.
Manufacturer description
ARAG is the largest Italian manufacturer of sprayer parts and equipment. Pumps, spray guns, fittings, electronics, etc. - you name and they probably make it!
ORION X is a flowmeter, namely a device allowing to measure the quantity of liquid flowing through it. ORION X is an electromagnetic device, hence there are no moving parts. The VISUALFLOW version, in addition, allows displaying the flowrate and dispensed volume as well as managing the filling of a tank.
ORION X is a flowmeter, namely a device allowing to measure the quantity of liquid flowing through it. ORION X is an electromagnetic device, hence there are no moving parts. The VISUALFLOW version, in addition, allows displaying the flowrate and dispensed volume as well as managing the filling of a tank.
Resources
Features
Specs:
- Ports: Flanged
- Max psi: 72
- Flow rate: 16 to 660 gpm
- Internal passage: 3"
Benefits:
- No mechanical moving parts inside the pipe
- Performances independent from fluid density and viscosity
- Low sensitivity to turbulence
- Electronic cleaning of conductive deposits
- High precision
- Low maintenance
- Graphic backlit display
Features:
- Typical error: 0.5% full scale
- Working pressure: up to 5 bar / 72 PSI
- Flowrate up to 660 US GPM.
- Power supply: 9 to 16 VDC
- 0 ÷ 12 VDC pulse output with frequency proportional to rate
- A-net (Can-Bus) connection.
- Output for filling valve control
- Output only by flowing fluid
- Operating status LED
- Max consumption: 300 mA
- Parts in contact with fluid are in Nylon® reinforced with fiberglass and AISI 316 stainless steel.
