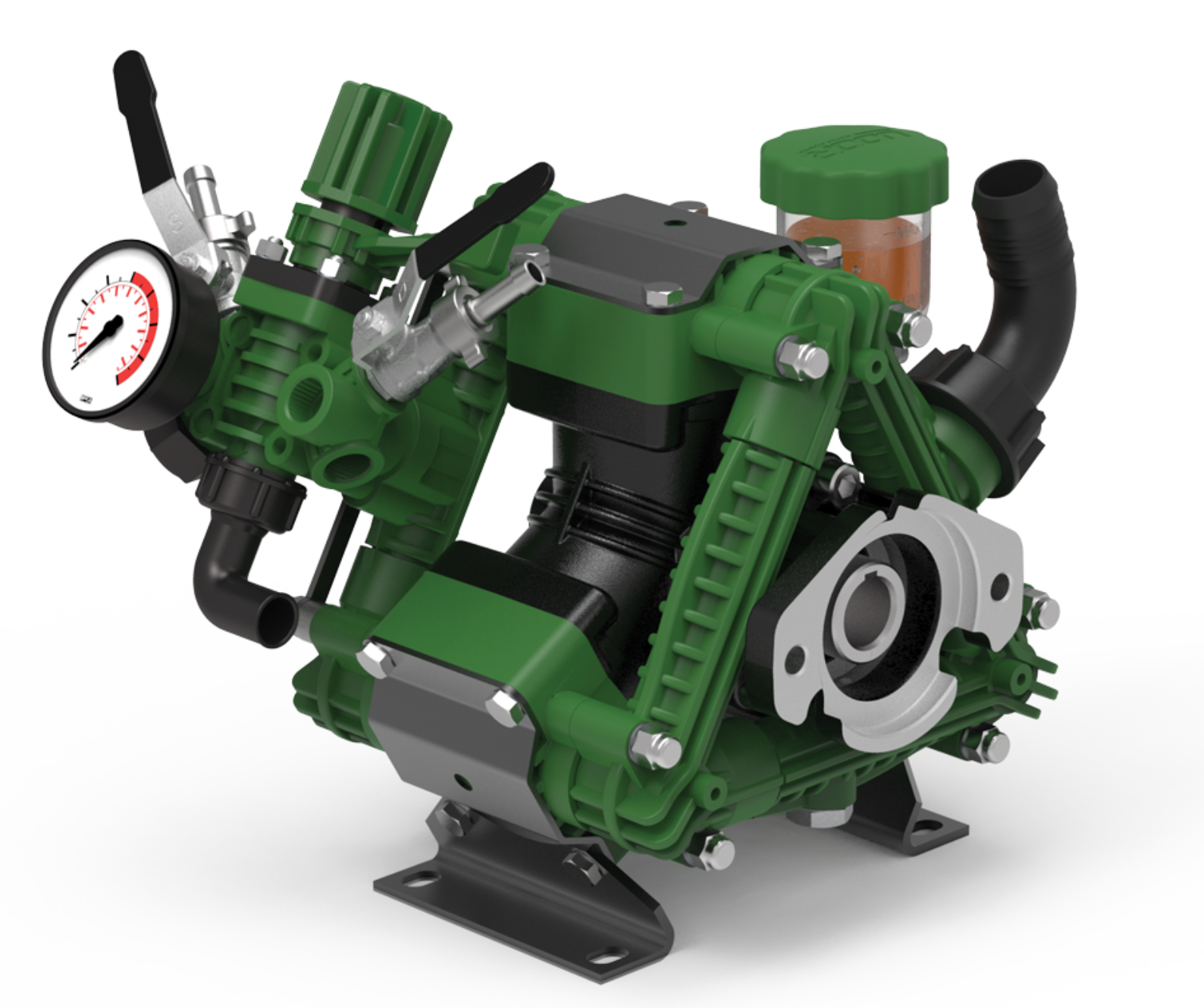

ZETA-PP 42 low-pressure 3-cylinder diaphragm pumps have anodized aluminum bodies with polypropylene heads and manifolds, and stainless steel valves. A control valve with a pressure gauge is standard on all models. ZETA-PP pumps are excellent for soft wash as well as various horticultural and agricultural spraying applications.

The new ZETA-P and ZETA-PP diaphragm pumps are 3-diaphragm models designed to ensure maximum reliability and compatibility with plant protection products.

They are equipped with GREENTECH high-performance diaphragms, offering superior mechanical and chemical resistance.

Download Product Manual

• Drive configuration: 2-Bolt, A Flange, 1" hollow shaft for hydraulic motor
• Max flow: 10.5 gpm
• Max pressure: 300 psi
• Max RPM: 550
• Port sizes: 1-¼" HB inlet, (2) ½" HB outlet, ¾" HB bypass
• Diaphragms: 3, semi-hydraulic, Greentech
• Material: anodized aluminum bodies with polypropylene heads & manifolds, and stainless steel valves
• Includes 4900.14 control unit
• Dimensions: 11"L x 11"W x 12H
• Weight: 24.3 lbs
