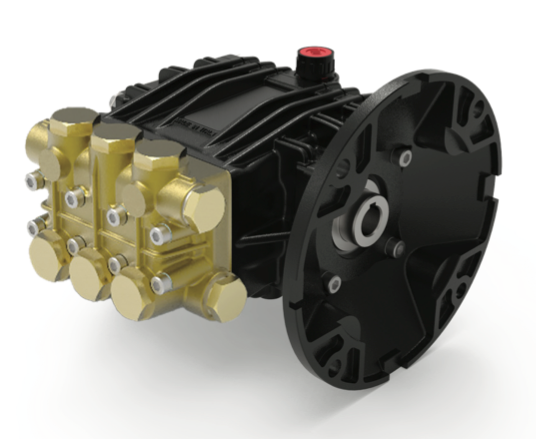

Udor PND 4.0/20-Z Direct Drive P-Series Plunger Pump

Udor PND 4.0/20-Z Direct Drive P-Series Plunger Pump

Brand:
Udor
Weight:
13.0 lb
Item #
PND4020Z
1 1

Udor PND 4.0/20-Z Direct Drive P-Series Plunger Pump

Udor PND 4.0/20-Z Direct Drive P-Series Plunger Pump

Brand:
Udor
Weight:
13.0 lb
Item #
PND4020Z

$419.00
$419.00 List Price: $838.00

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 1,257 points with this purchase.

See Details

View full details

Product Overview

Udor PND 4.0/20-Z Direct Drive P-Series Plunger Pump

(Replacement for PND 4.0/15-Z)

4.0 gpm, 2030 psi, 4 HP Electric Power Requirement.

1750 RPM, 5/8" Hollow Shaft with NEMA 56C Flange.

Manufacturer description

PND Series standard duty plunger pumps include a wide range of models with flow rates from 0.5 to 4.0 GPM and pressures up to 2030 PSI.

Other drive options include 24mm solid shaft, gas engine flange, gas engine gear reduction, and hydraulic motor flange.

Applications include general pressure cleaning, sewer jetting, vehicle wash equipment, and fire fighting applications.

Resources

Download Product Manual

Features

  • Max flow: 4.0 gpm
  • Max pressure: 2030 psi
  • Brass manifold
  • Heat treated crankshaft
  • Stainless steel piston guides
  • High strength aluminum alloy or bronze connecting rods
  • Industrial quality ball bearings and needle bearings
  • Solid ceramic plungers
  • Stainless steel check valves
  • Heavy duty flat base high pressure seals
  • Dual oil sight gauges
  • 10.25 oz. capacity vented oil bath crankcase
  • 3/8” BSP-F inlet, 3/8” BSP-F outlet
  • Maximum fluid temperature: 160°F
  • Weight: 13 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing
    • Ref No: 000609
    • Part No: 000609
    • Qty Req: 1
    Our price: $124.50 List price: $150.00
  • OIL SEAL
    • Ref No: 000718
    • Part No: 000718
    • Qty Req: 3
    Our price: $13.69 List price: $16.50
  • Seal
    • Ref No: 000724
    • Part No: 000724a
    • Qty Req: 1
    Our price: $21.00 List price: $25.30
  • Retainer Clip
    • Ref No: 000909
    • Part No: 000909
    • Qty Req: 1
    Our price: $6.14 List price: $7.40
  • Plunger Rod
    • Ref No: 001420
    • Part No: 001420
    • Qty Req: 3
    Our price: $41.99 List price: $50.60
  • LOW PRESSURE SEAL 18MM OLD STYLE
    • Ref No: 002178
    • Part No: 002178
    • Qty Req: 3
    Our price: $15.53 List price: $18.70
  • Support Ring
    • Ref No: 002322
    • Part No: 002322
    • Qty Req: 3
    Our price: $3.07 List price: $3.70
  • Intermediate Ring
    • Ref No: 002326
    • Part No: 002326
    • Qty Req: 3
    Our price: $16.02 List price: $19.30
  • Hollow Shaft
    • Ref No: 003145
    • Part No: 003145
    • Qty Req: 1
    Our price: $276.89 List price: $333.60
  • Aluminum Connecting Rod
    • Ref No: 010341
    • Part No: 010341
    • Qty Req: 3
    Our price: $42.50 List price: $51.20
  • Back Cover
    • Ref No: 0208D7
    • Part No: 0208D7
    • Qty Req: 1
    Our price: $49.80 List price: $60.00
  • Oil Sight Glass
    • Ref No: 0208E5
    • Part No: 0208E5
    • Qty Req: 1
    Our price: $14.11 List price: $17.00
  • Crank Case
    • Ref No: 020902
    • Part No: 020902
    • Qty Req: 1
    Our price: $161.44 List price: $194.50
  • Bearing
    • Ref No: 021421
    • Part No: 021421
    • Qty Req: 1
    Our price: $105.16 List price: $126.70
  • Slinger Ring
    • Ref No: 030142
    • Part No: 030142
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Plunger Nut
    • Ref No: 030318
    • Part No: 030318
    • Qty Req: 3
    Our price: $5.73 List price: $6.90
  • Flange
    • Ref No: 051708
    • Part No: 051708
    • Qty Req: 1
    Our price: $102.26 List price: $123.20
  • Aluminum Gasket
    • Ref No: 060509
    • Part No: 060509
    • Qty Req: 1
    Our price: $2.08 List price: $2.50
  • Plunger Washer
    • Ref No: 060533
    • Part No: 060533
    • Qty Req: 3
    Our price: $2.65 List price: $3.20
  • Seal Assembly
    • Ref No: 063503
    • Part No: 063503
    • Qty Req: 3
    Our price: $29.47 List price: $35.50
  • O RING
    • Ref No: 110176
    • Part No: 110176
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • O-Ring
    • Ref No: 1101A2
    • Part No: 1101A2
    • Qty Req: 6
    Our price: $2.66 List price: $3.20
  • O-Ring
    • Ref No: 1101A3
    • Part No: 1101A3
    • Qty Req: 6
    Our price: $2.65 List price: $3.20
  • O-Ring
    • Ref No: 1101A4
    • Part No: 1101A4
    • Qty Req: 3
    Our price: $2.65 List price: $3.20
  • O-Ring
    • Ref No: 1101A7
    • Part No: 1101A7
    • Qty Req: 3
    Our price: $2.73 List price: $3.30
  • O-Ring
    • Ref No: 1101K8
    • Part No: 1101K8
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Plunger
    • Ref No: 120536
    • Part No: 120536
    • Qty Req: 3
    Our price: $62.01 List price: $74.70
  • Cover
    • Ref No: 120803
    • Part No: 120803
    • Qty Req: 1
    Our price: $2.99 List price: $3.60
  • Side Plate
    • Ref No: 121210
    • Part No: 121210
    • Qty Req: 1
    Our price: $10.62 List price: $12.80
  • Seal Retainer
    • Ref No: 122112
    • Part No: 122112a
    • Qty Req: 3
    Our price: $20.75 List price: $25.00
  • Rivet
    • Ref No: 140106
    • Part No: 140106
    • Qty Req: 2
    Our price: $4.73 List price: $5.70
  • Washer
    • Ref No: 141101
    • Part No: 141101
    • Qty Req: 12
    Our price: $2.25 List price: $2.70
  • Connecting Rod Pin
    • Ref No: 150215
    • Part No: 150215
    • Qty Req: 3
    Our price: $5.64 List price: $6.80
  • Snap Ring
    • Ref No: 150626
    • Part No: 150626
    • Qty Req: 1
    Our price: $5.73 List price: $6.90
  • Plug
    • Ref No: 160334
    • Part No: 160334
    • Qty Req: 1
    Our price: $5.32 List price: $6.40
  • Plug
    • Ref No: 160364
    • Part No: 160364
    • Qty Req: 1
    Our price: $9.79 List price: $11.80
  • Oil Sight Glass
    • Ref No: 160369
    • Part No: 160369
    • Qty Req: 1
    Our price: $13.69 List price: $16.50
  • Valve Cap
    • Ref No: 160372
    • Part No: 160372
    • Qty Req: 6
    Our price: $18.60 List price: $22.40
  • Manifold
    • Ref No: 160459
    • Part No: 160459
    • Qty Req: 1
    Our price: $352.00 List price: $424.10
  • Oil Plug
    • Ref No: 162521
    • Part No: 162521
    • Qty Req: 1
    Our price: $7.14 List price: $8.60
  • Bolt
    • Ref No: 180521
    • Part No: 180521
    • Qty Req: 12
    Our price: $2.74 List price: $3.30
  • Bolt
    • Ref No: 180539
    • Part No: 180539
    • Qty Req: 8
    Our price: $2.91 List price: $3.50
  • Valve Assembly
    • Ref No: 600625
    • Part No: 600625
    • Qty Req: 6
    Our price: $11.95 List price: $14.40
  • Complete Manifold Assembly
    • Ref No: 601721
    • Part No: 601721
    • Qty Req: 1
    Our price: $660.60 List price: $795.90
  • VALVE KIT P SERIES (Kit 1)
    • Ref No: 606101
    • Part No: 606101
    • Qty Req: 1
    Our price: $99.44 List price: $119.80
  • SEAL KIT M 18MM (Kit 8)
    • Ref No: 606108
    • Part No: 606108
    • Qty Req: 1
    Our price: $118.85 List price: $143.20
  • BRASS KIT P (Kit 14)
    • Ref No: 606114
    • Part No: 606114
    • Qty Req: 1
    Our price: $89.22 List price: $107.50
  • PLUNGER O-RING P 15MM (Kit 20)
    • Ref No: 606120
    • Part No: 606120
    • Qty Req: 1
    Our price: $22.74 List price: $27.40
