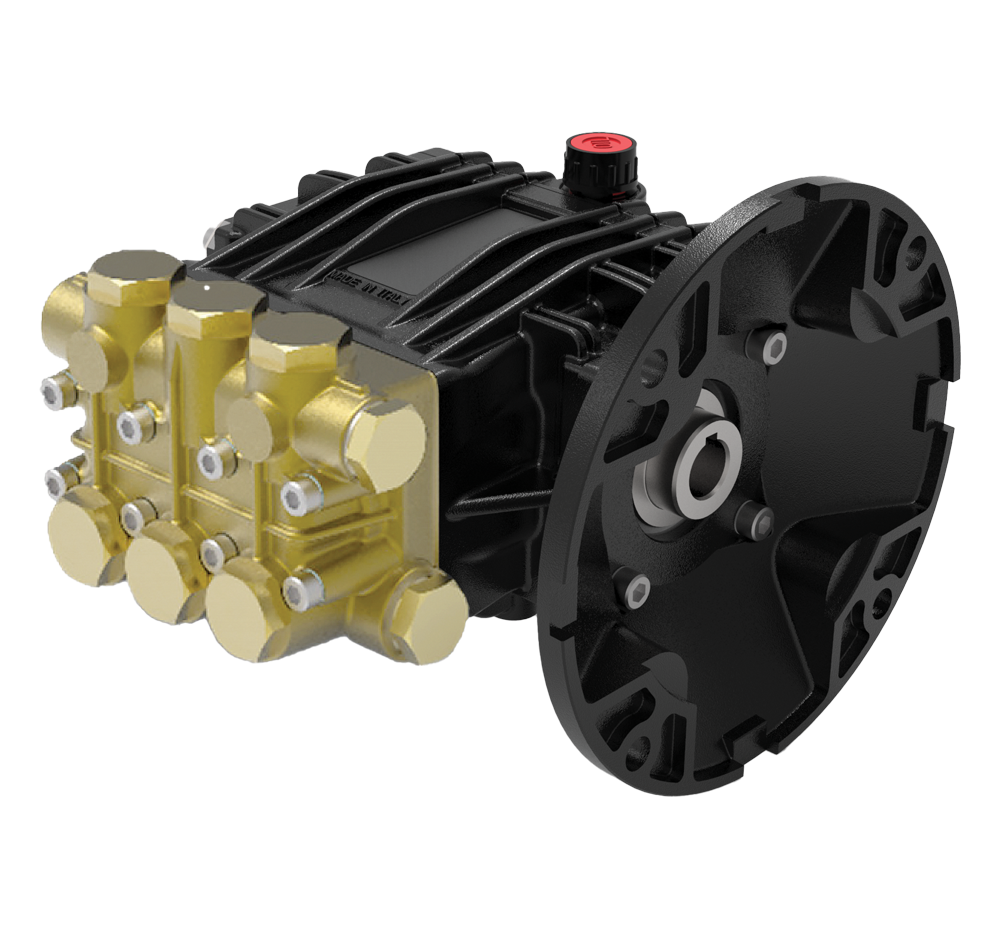

Udor PND 4.0/15-Z Direct Drive P-Series Plunger Pump

Udor PND 4.0/15-Z Direct Drive P-Series Plunger Pump

Brand:
Udor
Weight:
13.0 lb
Item #
PND4015Z
1 1

Udor PND 4.0/15-Z Direct Drive P-Series Plunger Pump

Udor PND 4.0/15-Z Direct Drive P-Series Plunger Pump

Brand:
Udor
Weight:
13.0 lb
Item #
PND4015Z

$419.00
$419.00 List Price: $838.00

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 1,257 points with this purchase.

See Details

View full details

Product Overview

Udor PND 4.0/15-Z Direct Drive P-Series Plunger Pump

** When you order this pump, you will receive the most current version, PND 4.0/20-Z . Please see part number PND4020Z for specs **


4.0 gpm, 1500 psi, 4 HP Electric Power Requirement.

Resources

Download Product Manual

Features

  • 3/8" Inlet 3/8" Outlet
  • Brass Manifold
  • Solid Ceramic Plungers
  • Heat Treated Crankshaft
  • Stainless Steel Check Valves
  • Dual Oil Sight Gauges
  • Direct Drive
  • Electric Flange Models
  • Stainless Steel Piston Guides
  • Heavy Duty Flat Base High Pressure Seals
  • High Strength Aluminum Alloy or Bronze Connecting Rods
  • Max. Fluid Temp. 160°F
  • Industrial Quality Ball Bearings and Needle Bearings
  • 12 oz. Capacity Vented Oil Bath Crank Case
  • 7-3/4" L x 8" W x 4" H (Solid Shaft Model)

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing
    • Ref No: sku:000609
    • Part No: 000609
    • Qty Req: 1
    Our price: $124.50 List price: $150.00
  • Seal
    • Ref No: sku:000724a
    • Part No: 000724a
    • Qty Req: 1
    Our price: $21.00 List price: $25.30
  • Retainer Clip
    • Ref No: sku:000909
    • Part No: 000909
    • Qty Req: 1
    Our price: $6.14 List price: $7.40
  • Plunger Rod
    • Ref No: sku:001420
    • Part No: 001420
    • Qty Req: 3
    Our price: $41.99 List price: $50.60
  • Support Ring
    • Ref No: sku:002322
    • Part No: 002322
    • Qty Req: 3
    Our price: $3.07 List price: $3.70
  • Aluminum Connecting Rod
    • Ref No: sku:010341
    • Part No: 010341
    • Qty Req: 3
    Our price: $42.50 List price: $51.20
  • Bearing Cover
    • Ref No: sku:020870
    • Part No: 020870
    • Qty Req: 1
    Our price: $28.72 List price: $34.60
  • Back Cover
    • Ref No: sku:020872
    • Part No: 020872
    • Qty Req: 1
    Our price: $48.30 List price: $58.20
  • Crankcase
    • Ref No: sku:020956
    • Part No: 020956
    • Qty Req: 1
    Our price: $218.62 List price: $263.40
  • Bearing
    • Ref No: sku:021421
    • Part No: 021421
    • Qty Req: 1
    Our price: $105.16 List price: $126.70
  • Slinger Ring
    • Ref No: sku:030142
    • Part No: 030142
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Plunger Nut
    • Ref No: sku:030318
    • Part No: 030318
    • Qty Req: 3
    Our price: $5.73 List price: $6.90
  • Flange
    • Ref No: sku:051708
    • Part No: 051708
    • Qty Req: 1
    Our price: $102.26 List price: $123.20
  • Gasket, Back Cover
    • Ref No: sku:060276
    • Part No: 060276
    • Qty Req: 1
    Our price: $8.14 List price: $9.80
  • Aluminum Gasket
    • Ref No: sku:060509
    • Part No: 060509
    • Qty Req: 4
    Our price: $2.08 List price: $2.50
  • Plunger Washer
    • Ref No: sku:060533
    • Part No: 060533
    • Qty Req: 3
    Our price: $2.65 List price: $3.20
  • Gasket
    • Ref No: sku:060549
    • Part No: 060549
    • Qty Req: 1
    Our price: $2.74 List price: $3.30
  • O-Ring
    • Ref No: sku:1101A2
    • Part No: 1101A2
    • Qty Req: 6
    Our price: $2.66 List price: $3.20
  • O-Ring
    • Ref No: sku:1101A3
    • Part No: 1101A3
    • Qty Req: 6
    Our price: $2.65 List price: $3.20
  • O-Ring
    • Ref No: sku:1101A4
    • Part No: 1101A4
    • Qty Req: 3
    Our price: $2.65 List price: $3.20
  • O-Ring
    • Ref No: sku:1101A6
    • Part No: 1101A6
    • Qty Req: 1
    Our price: $2.91 List price: $3.50
  • O-Ring
    • Ref No: sku:1101A7
    • Part No: 1101A7
    • Qty Req: 3
    Our price: $2.73 List price: $3.30
  • Plunger
    • Ref No: sku:120536
    • Part No: 120536
    • Qty Req: 3
    Our price: $62.01 List price: $74.70
  • Side Plate
    • Ref No: sku:121210
    • Part No: 121210
    • Qty Req: 1
    Our price: $10.62 List price: $12.80
  • Washer
    • Ref No: sku:141101
    • Part No: 141101
    • Qty Req: 12
    Our price: $2.25 List price: $2.70
  • Connecting Rod Pin
    • Ref No: sku:150215
    • Part No: 150215
    • Qty Req: 3
    Our price: $5.64 List price: $6.80
  • Snap Ring
    • Ref No: sku:150626
    • Part No: 150626
    • Qty Req: 1
    Our price: $5.73 List price: $6.90
  • Plug
    • Ref No: sku:160364
    • Part No: 160364
    • Qty Req: 4
    Our price: $9.79 List price: $11.80
  • Plug
    • Ref No: sku:160367
    • Part No: 160367
    • Qty Req: 1
    Our price: $9.87 List price: $11.90
  • Oil Sight Glass
    • Ref No: sku:160369
    • Part No: 160369
    • Qty Req: 1
    Our price: $13.69 List price: $16.50
  • Valve Cap
    • Ref No: sku:160372
    • Part No: 160372
    • Qty Req: 6
    Our price: $18.60 List price: $22.40
  • Manifold
    • Ref No: sku:160459
    • Part No: 160459
    • Qty Req: 1
    Our price: $352.00 List price: $424.10
  • Bolt
    • Ref No: sku:180519
    • Part No: 180519
    • Qty Req: 4
    Our price: $2.66 List price: $3.20
  • Bolt
    • Ref No: sku:180520
    • Part No: 180520
    • Qty Req: 8
    Our price: $2.74 List price: $3.30
  • Bolt
    • Ref No: sku:180539
    • Part No: 180539
    • Qty Req: 8
    Our price: $2.91 List price: $3.50
  • Oil Plug - Old Style
    • Ref No: sku:605826
    • Part No: 605826
    • Qty Req: 1
    Our price: $10.62 List price: $12.80
