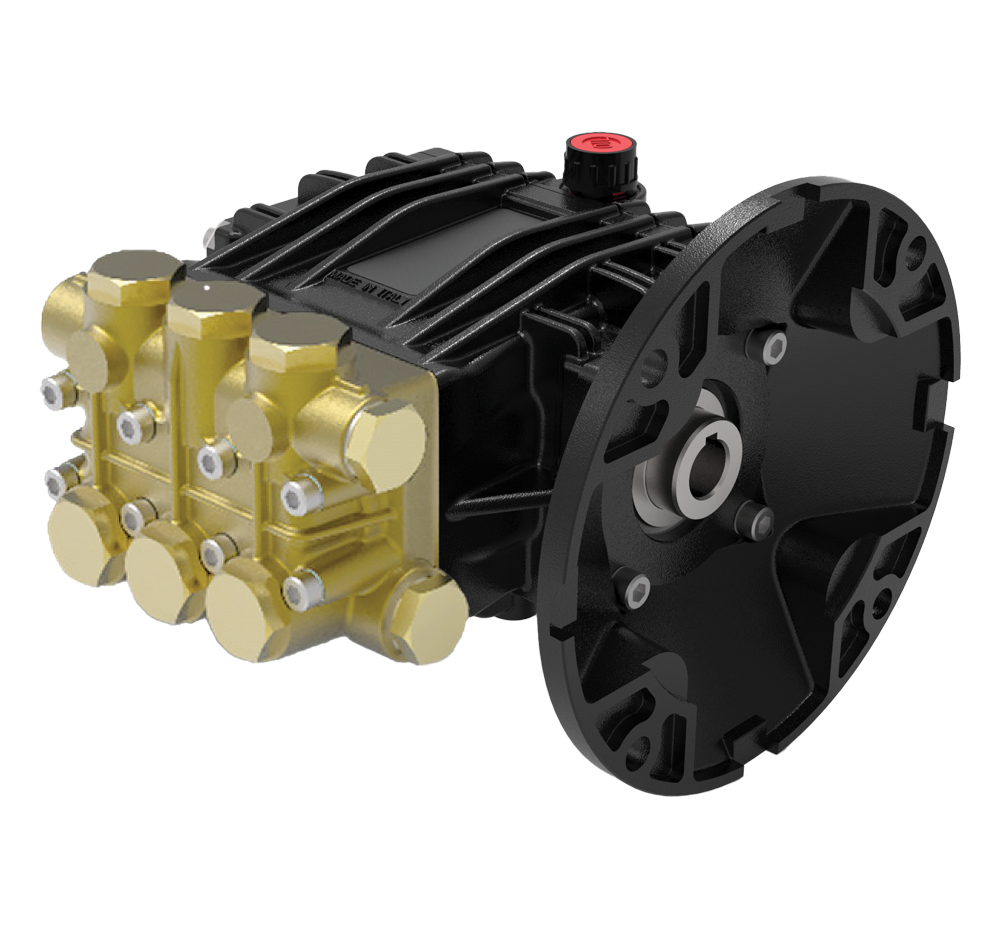

Udor PND 3.0/20-Z Direct Drive P-Series Plunger Pump

Udor PND 3.0/20-Z Direct Drive P-Series Plunger Pump

Brand:
Udor
Weight:
13.0 lb
Item #
PND3020Z
1 1

Udor PND 3.0/20-Z Direct Drive P-Series Plunger Pump

Udor PND 3.0/20-Z Direct Drive P-Series Plunger Pump

Brand:
Udor
Weight:
13.0 lb
Item #
PND3020Z

$449.60
$449.60 List Price: $899.20

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 1,349 points with this purchase.

See Details

View full details

Product Overview

Udor PND 3.0/20-Z Direct Drive P-Series Plunger Pump

3.0 gpm, 2030 psi, 4 HP Electric Power Requirement.

1750 RPM, 5/8" Hollow Shaft with NEMA 56C Flange.

Resources

Download Product Manual

Features

  • Max flow: 3 GPM
  • Max pressure: 2030 PSI
  • Power equipment: 4 HP electric power
  • 7-3/4" L x 8" W x 4" H (Solid Shaft Model)
  • 3/8" Inlet 3/8" Outlet
  • Brass Manifold
  • Solid Ceramic Plungers
  • Heat Treated Crankshaft
  • Stainless Steel Check Valves
  • Dual Oil Sight Gauges
  • Direct Drive
  • Electric Flange Models
  • Stainless Steel Piston Guides
  • Heavy Duty Flat Base High Pressure Seals
  • High Strength Aluminum Alloy or Bronze Connecting Rods
  • Max. Fluid Temp. 160°F

  • Parts breakdown

    Diagram

    Diagram parts

    Parts list

    • Bearing
      • Ref No: sku:000609
      • Part No: 000609
      • Qty Req: 1
      Our price: $124.50 List price: $150.00
    • Seal
      • Ref No: sku:000724a
      • Part No: 000724a
      • Qty Req: 1
      Our price: $21.00 List price: $25.30
    • Retainer Clip
      • Ref No: sku:000909
      • Part No: 000909
      • Qty Req: 1
      Our price: $6.14 List price: $7.40
    • Plunger Rod
      • Ref No: sku:001420
      • Part No: 001420
      • Qty Req: 3
      Our price: $41.99 List price: $50.60
    • Support Ring
      • Ref No: sku:002322
      • Part No: 002322
      • Qty Req: 3
      Our price: $3.07 List price: $3.70
    • Aluminum Connecting Rod
      • Ref No: sku:010341
      • Part No: 010341
      • Qty Req: 3
      Our price: $42.50 List price: $51.20
    • Bearing Cover
      • Ref No: sku:020870
      • Part No: 020870
      • Qty Req: 1
      Our price: $28.72 List price: $34.60
    • Back Cover
      • Ref No: sku:020872
      • Part No: 020872
      • Qty Req: 1
      Our price: $48.30 List price: $58.20
    • Crankcase
      • Ref No: sku:020956
      • Part No: 020956
      • Qty Req: 1
      Our price: $218.62 List price: $263.40
    • Bearing
      • Ref No: sku:021421
      • Part No: 021421
      • Qty Req: 1
      Our price: $105.16 List price: $126.70
    • Slinger Ring
      • Ref No: sku:030142
      • Part No: 030142
      • Qty Req: 3
      Our price: $2.24 List price: $2.70
    • Plunger Nut
      • Ref No: sku:030318
      • Part No: 030318
      • Qty Req: 3
      Our price: $5.73 List price: $6.90
    • Flange
      • Ref No: sku:051708
      • Part No: 051708
      • Qty Req: 1
      Our price: $102.26 List price: $123.20
    • Gasket, Back Cover
      • Ref No: sku:060276
      • Part No: 060276
      • Qty Req: 1
      Our price: $8.14 List price: $9.80
    • Aluminum Gasket
      • Ref No: sku:060509
      • Part No: 060509
      • Qty Req: 4
      Our price: $2.08 List price: $2.50
    • Plunger Washer
      • Ref No: sku:060533
      • Part No: 060533
      • Qty Req: 3
      Our price: $2.65 List price: $3.20
    • Gasket
      • Ref No: sku:060549
      • Part No: 060549
      • Qty Req: 1
      Our price: $2.74 List price: $3.30
    • O-Ring
      • Ref No: sku:1101A2
      • Part No: 1101A2
      • Qty Req: 6
      Our price: $2.66 List price: $3.20
    • O-Ring
      • Ref No: sku:1101A3
      • Part No: 1101A3
      • Qty Req: 6
      Our price: $2.65 List price: $3.20
    • O-Ring
      • Ref No: sku:1101A4
      • Part No: 1101A4
      • Qty Req: 3
      Our price: $2.65 List price: $3.20
    • O-Ring
      • Ref No: sku:1101A6
      • Part No: 1101A6
      • Qty Req: 1
      Our price: $2.91 List price: $3.50
    • O-Ring
      • Ref No: sku:1101A7
      • Part No: 1101A7
      • Qty Req: 3
      Our price: $2.73 List price: $3.30
    • Plunger
      • Ref No: sku:120535
      • Part No: 120535
      • Qty Req: 3
      Our price: $55.02 List price: $66.30
    • Side Plate
      • Ref No: sku:121210
      • Part No: 121210
      • Qty Req: 1
      Our price: $10.62 List price: $12.80
    • Washer
      • Ref No: sku:141101
      • Part No: 141101
      • Qty Req: 12
      Our price: $2.25 List price: $2.70
    • Connecting Rod Pin
      • Ref No: sku:150215
      • Part No: 150215
      • Qty Req: 3
      Our price: $5.64 List price: $6.80
    • Snap Ring
      • Ref No: sku:150626
      • Part No: 150626
      • Qty Req: 1
      Our price: $5.73 List price: $6.90
    • Plug
      • Ref No: sku:160364
      • Part No: 160364
      • Qty Req: 4
      Our price: $9.79 List price: $11.80
    • Plug
      • Ref No: sku:160367
      • Part No: 160367
      • Qty Req: 1
      Our price: $9.87 List price: $11.90
    • Oil Sight Glass
      • Ref No: sku:160369
      • Part No: 160369
      • Qty Req: 1
      Our price: $13.69 List price: $16.50
    • Valve Cap
      • Ref No: sku:160372
      • Part No: 160372
      • Qty Req: 6
      Our price: $18.60 List price: $22.40
    • Manifold
      • Ref No: sku:160459
      • Part No: 160459
      • Qty Req: 1
      Our price: $352.00 List price: $424.10
    • Bolt
      • Ref No: sku:180519
      • Part No: 180519
      • Qty Req: 4
      Our price: $2.66 List price: $3.20
    • Bolt
      • Ref No: sku:180520
      • Part No: 180520
      • Qty Req: 8
      Our price: $2.74 List price: $3.30
    • Bolt
      • Ref No: sku:180539
      • Part No: 180539
      • Qty Req: 8
      Our price: $2.91 List price: $3.50
    • Oil Plug - Old Style
      • Ref No: sku:605826
      • Part No: 605826
      • Qty Req: 1
      Our price: $10.62 List price: $12.80
