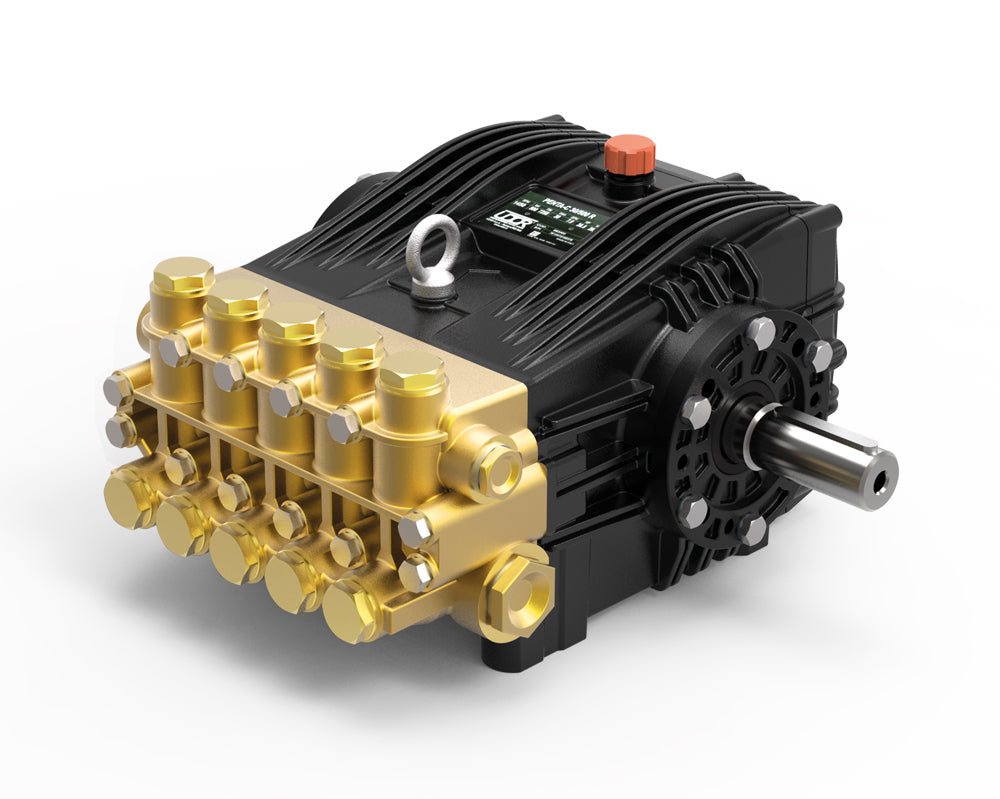

Udor PENTA-C 70/200 5-Cylinder Industrial Plunger Pump

Udor PENTA-C 70/200 5-Cylinder Industrial Plunger Pump

Brand:
Udor
Weight:
110.0 lb
Item #
PENTAC70200
1 1

Udor PENTA-C 70/200 5-Cylinder Industrial Plunger Pump

Udor PENTA-C 70/200 5-Cylinder Industrial Plunger Pump

Brand:
Udor
Weight:
110.0 lb
Item #
PENTAC70200

$5,820.75
$5,820.75 List Price: $11,641.50

Earn 17,462 points with this purchase.

See Details

View full details

Product Overview

Udor PENTA-C 70/200 5-Cylinder Industrial Plunger Pump

18 gpm, 3000 psi, 40 HP Electric Power Requirement

1450 RPM, 35MM Solid Keyed Shaft. 1-1/4" FNPT Inlet, 3/4" FNPT Outlet.

Resources

Download Product Manual

Features

  • Heavy Duty Brass Manifold
  • Stainless Steel Check Valves
  • Stainless Steel Plunger Rods
  • Heavy Duty Bronze Connecting Rods with Guide Pins for Perfect Cap Alignment
  • Dual Roller Bearings
  • Solid Ceramic Plungers
  • Heat Treated Crankshaft
  • Max. Fluid Temp. 160°F
  • 80 oz. Crank Case Oil Capacity
  • Heavy Duty, Flat Base High Pressure Seals
  • 15" L x 16.5" W x 9" H
  • Replaceable PTFE Coated Body Guides
  • All Penta Pumps Include Lift Ring and Dust Cover to Protect Oil Seals

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seal
    • Ref No: sku:000743
    • Part No: 000743
    • Qty Req: 5
    Our price: $18.76 List price: $22.60
  • Seal
    • Ref No: sku:000757
    • Part No: 000757
    • Qty Req: 1
    Our price: $21.00 List price: $25.30
  • Plunger Rod
    • Ref No: sku:001419
    • Part No: 001419
    • Qty Req: 5
    Our price: $57.85 List price: $69.70
  • Support Ring
    • Ref No: sku:002323
    • Part No: 002323
    • Qty Req: 5
    Our price: $2.73 List price: $3.30
  • Back Up Ring
    • Ref No: sku:002907
    • Part No: 002907
    • Qty Req: 10
    Our price: $11.04 List price: $13.30
  • Rod Guide
    • Ref No: sku:011508
    • Part No: 011508
    • Qty Req: 5
    Our price: $23.41 List price: $28.20
  • Back Cover
    • Ref No: sku:020895
    • Part No: 020895
    • Qty Req: 1
    Our price: $208.40 List price: $251.10
  • Crankcase, Penta
    • Ref No: sku:020984
    • Part No: 020984
    • Qty Req: 1
    Our price: $1,613.94 List price: $1,944.50
  • Bearing
    • Ref No: sku:021613
    • Part No: 021613
    • Qty Req: 2
    Our price: $339.30 List price: $408.80
  • Plug, Plastic
    • Ref No: sku:021805
    • Part No: 021805
    • Qty Req: 1
    Our price: $7.80 List price: $9.40
  • Slinger Ring
    • Ref No: sku:030141
    • Part No: 030141
    • Qty Req: 5
    Our price: $2.73 List price: $3.30
  • Bearing Cap
    • Ref No: sku:0501F8
    • Part No: 0501F8
    • Qty Req: 2
    Our price: $132.80 List price: $160.00
  • Gasket
    • Ref No: sku:060234
    • Part No: 060234
    • Qty Req: 1
    Our price: $26.64 List price: $32.10
  • Gasket
    • Ref No: sku:060542
    • Part No: 060542
    • Qty Req: 1
    Our price: $2.91 List price: $3.50
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 2
    Our price: $3.32 List price: $4.00
  • Aluminum Washer
    • Ref No: sku:060552
    • Part No: 060552
    • Qty Req: 1
    Our price: $10.13 List price: $12.20
  • Key
    • Ref No: sku:080123
    • Part No: 080123
    • Qty Req: 1
    Our price: $13.53 List price: $16.30
  • O-Ring
    • Ref No: sku:110148
    • Part No: 110148
    • Qty Req: 2
    Our price: $7.97 List price: $9.60
  • O-Ring
    • Ref No: sku:110164
    • Part No: 110164
    • Qty Req: 10
    Our price: $3.32 List price: $4.00
  • O-Ring
    • Ref No: sku:1101A8
    • Part No: 1101A8
    • Qty Req: 5
    Our price: $2.65 List price: $3.20
  • O-Ring
    • Ref No: sku:1101A9
    • Part No: 1101A9
    • Qty Req: 5
    Our price: $2.99 List price: $3.60
  • O-Ring
    • Ref No: sku:1101D9
    • Part No: 1101D9
    • Qty Req: 10
    Our price: $5.73 List price: $6.90
  • Plunger
    • Ref No: sku:120534
    • Part No: 120534
    • Qty Req: 5
    Our price: $105.75 List price: $127.40
  • Lift Ring
    • Ref No: sku:1240R9
    • Part No: 1240R9
    • Qty Req: 1
    Our price: $15.69 List price: $18.90
  • Plunger Washer
    • Ref No: sku:140333
    • Part No: 140333
    • Qty Req: 5
    Our price: $4.40 List price: $5.30
  • Lock Washer
    • Ref No: sku:141103
    • Part No: 141103
    • Qty Req: 20
    Our price: $2.25 List price: $2.70
  • Connecting Rod
    • Ref No: sku:150214
    • Part No: 150214
    • Qty Req: 5
    Our price: $5.73 List price: $6.90
  • Snap Ring
    • Ref No: sku:150621
    • Part No: 150621
    • Qty Req: 2
    Our price: $6.73 List price: $8.10
  • Oil Plug
    • Ref No: sku:160302
    • Part No: 160302
    • Qty Req: 2
    Our price: $8.47 List price: $10.20
  • Manifold Plug
    • Ref No: sku:160374
    • Part No: 160374
    • Qty Req: 1
    Our price: $15.78 List price: $19.00
  • Oil Sight Gauge
    • Ref No: sku:1603B8
    • Part No: 1603B8
    • Qty Req: 1
    Our price: $19.42 List price: $23.40
  • Valve Cap
    • Ref No: sku:1603D2
    • Part No: 1603D2
    • Qty Req: 10
    Our price: $51.21 List price: $61.70
  • Inlet Plug
    • Ref No: sku:1603D3
    • Part No: 1603D3
    • Qty Req: 1
    Our price: $68.40 List price: $82.40
  • Vented Plug
    • Ref No: sku:162506
    • Part No: 162506
    • Qty Req: 1
    Our price: $20.56 List price: $24.77
  • Bolt
    • Ref No: sku:180403
    • Part No: 180403
    • Qty Req: 8
    Our price: $2.74 List price: $3.30
  • Head Bolt (Hex Head)
    • Ref No: sku:180412
    • Part No: 180412
    • Qty Req: 12
    Our price: $5.74 List price: $6.90
  • Bolt
    • Ref No: sku:180519
    • Part No: 180519
    • Qty Req: 10
    Our price: $2.66 List price: $3.20
  • Screw
    • Ref No: sku:180809
    • Part No: 180809
    • Qty Req: 2
    Our price: $2.99 List price: $3.60
  • Bronze Connecting Rod
    • Ref No: sku:600080
    • Part No: 600080
    • Qty Req: 5
    Our price: $319.22 List price: $384.60
