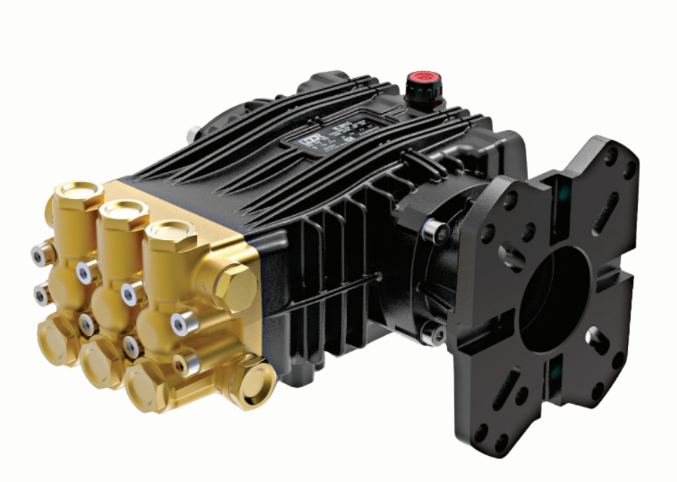

Udor ML 3.5/30-W Direct Drive Plunger Pump

Udor ML 3.5/30-W Direct Drive Plunger Pump

Item Code:
ML3530W
Weight:
25.0 lb
Manufacturer:
Udor
Our price:
$391.40
List price:
$782.80
Overview:

Udor ML 3.5/30-W Direct Drive Plunger Pump

3.5 gpm, 3000 psi, 9 HP Gas Engine Power Requirement

1" Hollow Shaft with Mounting Flange and Set Screw, 3400 RPM

Features:

•9-1/2" L x 8-1/2" W x 4-1/2" H (Solid Shaft Model)

•1/2" Inlet 3/8" Outlet

•Brass Manifold

•Solid Ceramic Plungers

•Heat Treated Crankshaft

•Stainless Steel Check Valves

•Stainless Steel Piston Guides

•Direct Drive

•Electric Flange Models

•Industrial Quality Tapered Roller Bearings

•Replaceable PTFE Coated Body Guides

•Max. Fluid Temp. 160°F

•High Strength Aluminum Alloy Connecting Rods

•Heavy Duty Flat Base High Pressure Seals

•20 oz. Capacity Vented Oil Bath Crank Case

Parts breakdown

Parts list

  • Ref No:
  • Part No: 000739
  • Qty Req: 3
Our price: $10.69 List price: $12.88
  • Ref No:
  • Part No: 000741
  • Qty Req: 1
Our price: $14.19 List price: $17.10
  • Ref No:
  • Part No: 001432
  • Qty Req: 3
Our price: $35.31 List price: $42.54
  • Ref No:
  • Part No: 002321
  • Qty Req: 3
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 002824
  • Qty Req: 1
Our price: $181.32 List price: $218.46
  • Ref No:
  • Part No: 011507
  • Qty Req: 3
Our price: $14.79 List price: $17.82
  • Ref No:
  • Part No: 020869
  • Qty Req: 1
Our price: $22.83 List price: $27.50
  • Ref No:
  • Part No: 020971
  • Qty Req: 1
Our price: $200.65 List price: $241.74
  • Ref No:
  • Part No: 024802
  • Qty Req: 1
Our price: $88.14 List price: $106.19
  • Ref No:
  • Part No: 024804
  • Qty Req: 1
Our price: $102.76 List price: $123.81
  • Ref No:
  • Part No: 030155
  • Qty Req: 3
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 030318
  • Qty Req: 3
Our price: $3.76 List price: $4.53
  • Ref No:
  • Part No: 0501D9
  • Qty Req: 1
Our price: $22.65 List price: $27.30
  • Ref No:
  • Part No: 051716
  • Qty Req: 1
Our price: $65.66 List price: $79.10
  • Ref No:
  • Part No: 060277
  • Qty Req: 1
Our price: $6.50 List price: $7.83
  • Ref No:
  • Part No: 060509
  • Qty Req: 2
Our price: $1.20 List price: $1.44
  • Ref No:
  • Part No: 060540
  • Qty Req: 2
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 060549
  • Qty Req: 1
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 061415
  • Qty Req: 1
Our price: $3.08 List price: $3.71
  • Ref No:
  • Part No: 110160
  • Qty Req: 3
Our price: $1.88 List price: $2.27
  • Ref No:
  • Part No: 110182
  • Qty Req: 3
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 1101A2
  • Qty Req: 6
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 1101A3
  • Qty Req: 6
Our price: $1.80 List price: $1.90
  • Ref No:
  • Part No: 1101F6
  • Qty Req: 2
Our price: $3.85 List price: $4.64
  • Ref No:
  • Part No: 120530a
  • Qty Req: 3
Our price: $49.84 List price: $60.05
  • Ref No:
  • Part No: 140332
  • Qty Req: 3
Our price: $1.80 List price: $2.16
  • Ref No:
  • Part No: 141102
  • Qty Req: 8
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 141102
  • Qty Req: 4
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 150213
  • Qty Req: 3
Our price: $5.39 List price: $6.49
  • Ref No:
  • Part No: 153401
  • Qty Req: 1
Our price: $4.02 List price: $4.84
  • Ref No:
  • Part No: 153402
  • Qty Req: 1
Our price: $3.08 List price: $3.71
  • Ref No:
  • Part No: 160360
  • Qty Req: 6
Our price: $15.60 List price: $16.20
  • Ref No:
  • Part No: 160362
  • Qty Req: 2
Our price: $9.23 List price: $11.12
  • Ref No:
  • Part No: 160364
  • Qty Req: 2
Our price: $8.63 List price: $10.80
  • Ref No:
  • Part No: 160367
  • Qty Req: 1
Our price: $6.67 List price: $8.03
  • Ref No:
  • Part No: 160369
  • Qty Req: 1
Our price: $9.23 List price: $11.12
  • Ref No:
  • Part No: 160458
  • Qty Req: 1
Our price: $336.15 List price: $405.00
  • Ref No:
  • Part No: 180402
  • Qty Req: 8
Our price: $1.88 List price: $2.27
  • Ref No:
  • Part No: 180426
  • Qty Req: 5
Our price: $1.88 List price: $2.27
  • Ref No:
  • Part No: 180457
  • Qty Req: 8
Our price: $1.45 List price: $1.75
  • Ref No:
  • Part No: 180503
  • Qty Req: 4
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 605859
  • Qty Req: 1
Our price: $5.04 List price: $6.08
