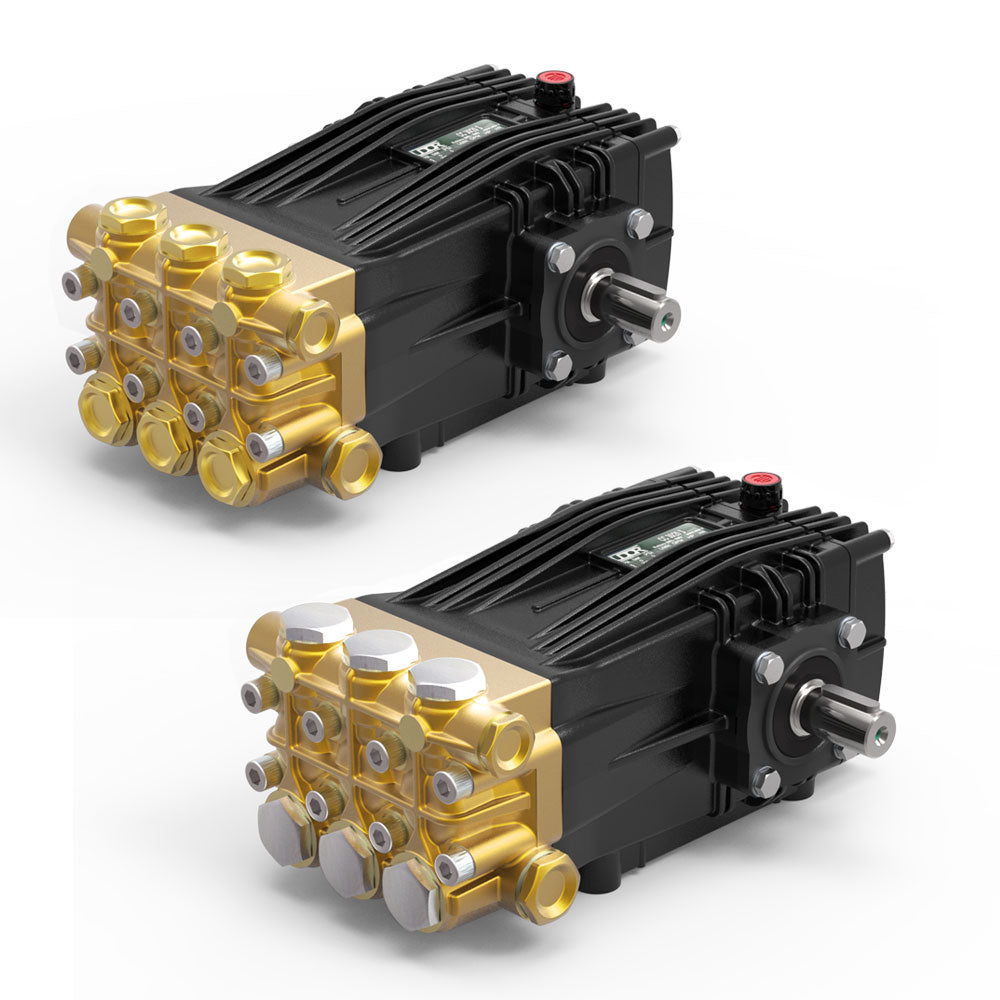

• Solid Ceramic Plungers
• Stainless Steel Check Valves
• Heavy Duty Brass Manifold with External and Internal Bracing
• High Strength Aluminum Alloy Connecting Rods
• Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
• Reinforcing Ring on Inlet and Discharge Ports
• Deeper Back Cover for Increased Oil Capacity
• 35 oz. Capacity Vented Oil Bath Crank Case
• 3/4″ BSP-F Inlet. 3/8″ BSP-F Outlet: 5.5-8.5 GPM
• 3/4″ BSP-F Inlet. 1/2″ BSP-F Outlet: 9.0 GPM & Above
• Max Fluid Temp, 160°F

• High Efficiency Hydraulic Gear Motors
• Flange Adapter Mounting
• Heavy Duty Flex Coupler Drive
• J.I.C. #10 Male Hydraulic Fittings
• Mounting Rails Included
• Simple Design for Easy Operation and Maintenance
• All Components are Independent, Eliminating Cross Contamination of Pumping Fluids & Hydraulic Fluids.
• Kit includes MK-Series Hydraulic Drive Pump with Mounting Rails, Unloader, Hydraulic Motor,
• 14" x 20" Base Plate with Rubber Bumpers, Thermal Relief Valve and Safety Pop-Off Valve.

Download Product Manual

• Max flow: 5.0 GPM
• Max pressure: 2500-3500PSI
• Pump Pressure vs Hydraulic Power requirement:
• 2500psi = 5gpm @ 1500PSI
• 3000psi = 5gpm @ 1700PSI
• 3500psi = 5gpm @ 2000PSI
• Shaft output: n/a
• Weight: 70 Lbs
