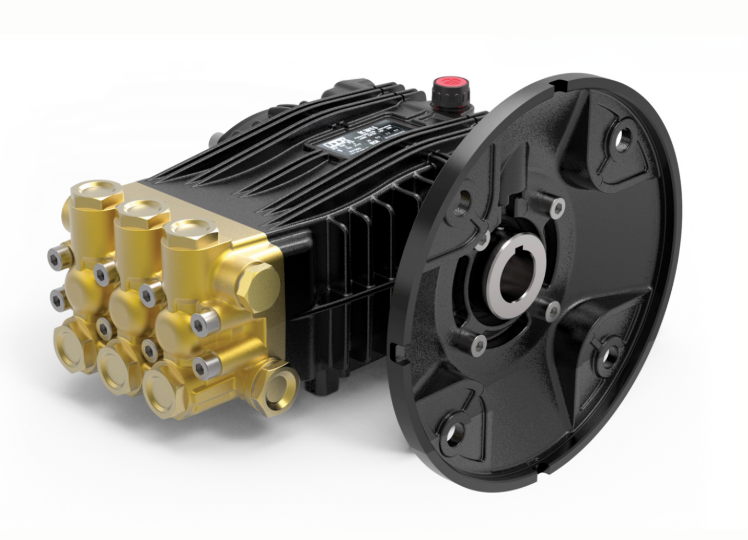

Udor MD 4.0/20-U Direct Drive Plunger Pump

Udor MD 4.0/20-U Direct Drive Plunger Pump

Item Code:
MD4020U
Weight:
26.0 lb
Manufacturer:
Udor
Our price:
$480.20
List price:
$960.40
Overview:

For your high-pressure spraying applications, install this Udor MD 4.0/20-U Direct Drive Plunger Pump in your system. With a maximum pressure of 2000 PSI and a flow rate of 4.0 GPM, it's ideally suited for many industrial, agricultural and commercial spraying applications. It's also perfect for deployment of lower temperature liquids, rated to handle a maximum temperature of 160°F.

Manufacturer Description:

  • 9-1/2"" L x 8-1/2"" W x 4-1/2"" H (Solid Shaft Model)
  • 1/2"" Inlet 3/8"" Outlet
  • Brass Manifold
  • Solid Ceramic Plungers
  • Heat Treated Crankshaft
  • Stainless Steel Check Valves
  • Stainless Steel Piston Guides
  • Direct Drive
  • Electric Flange Models
  • Industrial Quality Tapered Roller Bearings
  • Replaceable Teflon Coated Body Guides
  • Max. Fluid Temp. 160°F
  • High Strength Aluminum Alloy Connecting Rods
  • Heavy Duty Flat Base High Pressure Seals
  • 20 oz. Capacity Vented Oil Bath Crank Case

Features:

  • Max flow: 4.0 gpm
  • Max pressure: 2000 psi
  • Max speed: 1750 rpm
  • Power requirement: 5.0 hp electric
  • Shaft output: 1-1/8" hollow shaft with 182/184 mounting flange and set screw
  • Max fluid temperature: 160°F
  • Weight: 26 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No:
  • Part No: 000739
  • Qty Req: 3
Our price: $13.28 List price: $16.00
  • Ref No:
  • Part No: 000741
  • Qty Req: 1
Our price: $17.51 List price: $21.10
  • Ref No:
  • Part No: 000908
  • Qty Req: 1
Our price: $35.28 List price: $42.50
  • Ref No:
  • Part No: 001432
  • Qty Req: 3
Our price: $43.41 List price: $52.30
  • Ref No:
  • Part No: 002321
  • Qty Req: 3
Our price: $2.24 List price: $2.70
  • Ref No:
  • Part No: 002822
  • Qty Req: 1
Our price: $222.11 List price: $267.60
  • Ref No:
  • Part No: 011507
  • Qty Req: 3
Our price: $18.34 List price: $22.10
  • Ref No:
  • Part No: 020869
  • Qty Req: 1
Our price: $28.05 List price: $33.80
  • Ref No:
  • Part No: 020971
  • Qty Req: 1
Our price: $245.85 List price: $296.20
  • Ref No:
  • Part No: 024802
  • Qty Req: 1
Our price: $108.07 List price: $130.20
  • Ref No:
  • Part No: 024804
  • Qty Req: 1
Our price: $126.08 List price: $151.90
  • Ref No:
  • Part No: 030155
  • Qty Req: 3
Our price: $2.16 List price: $2.60
  • Ref No:
  • Part No: 030318
  • Qty Req: 3
Our price: $4.73 List price: $5.70
  • Ref No:
  • Part No: 0501D9
  • Qty Req: 1
Our price: $27.89 List price: $33.60
  • Ref No:
  • Part No: 0501E1
  • Qty Req: 1
Our price: $27.89 List price: $33.60
  • Ref No:
  • Part No: 051709
  • Qty Req: 1
Our price: $83.83 List price: $101.00
  • Ref No:
  • Part No: 060277
  • Qty Req: 1
Our price: $8.13 List price: $9.80
  • Ref No:
  • Part No: 060509
  • Qty Req: 3
Our price: $1.66 List price: $2.00
  • Ref No:
  • Part No: 060540
  • Qty Req: 2
Our price: $2.24 List price: $2.70
  • Ref No:
  • Part No: 060549
  • Qty Req: 1
Our price: $2.24 List price: $2.70
  • Ref No:
  • Part No: 061415
  • Qty Req: 1
Our price: $3.82 List price: $4.60
  • Ref No:
  • Part No: 110160
  • Qty Req: 3
Our price: $2.41 List price: $2.90
  • Ref No:
  • Part No: 110182
  • Qty Req: 3
Our price: $2.24 List price: $2.70
  • Ref No:
  • Part No: 1101A2
  • Qty Req: 6
Our price: $2.16 List price: $2.60
  • Ref No:
  • Part No: 1101A3
  • Qty Req: 6
Our price: $2.16 List price: $2.60
  • Ref No:
  • Part No: 1101F6
  • Qty Req: 2
Our price: $4.81 List price: $5.80
  • Ref No:
  • Part No: 120530a
  • Qty Req: 3
Our price: $49.84 List price: $60.05
  • Ref No:
  • Part No: 140332
  • Qty Req: 3
Our price: $2.32 List price: $2.80
  • Ref No:
  • Part No: 141102
  • Qty Req: 8
Our price: $2.16 List price: $2.60
  • Ref No:
  • Part No: 141102
  • Qty Req: 4
Our price: $2.16 List price: $2.60
  • Ref No:
  • Part No: 150213
  • Qty Req: 3
Our price: $6.72 List price: $8.10
  • Ref No:
  • Part No: 153401
  • Qty Req: 1
Our price: $4.98 List price: $6.00
  • Ref No:
  • Part No: 153402
  • Qty Req: 1
Our price: $3.82 List price: $4.60
  • Ref No:
  • Part No: 160360
  • Qty Req: 6
Our price: $17.18 List price: $20.70
  • Ref No:
  • Part No: 160362
  • Qty Req: 2
Our price: $11.45 List price: $13.80
  • Ref No:
  • Part No: 160364
  • Qty Req: 2
Our price: $8.22 List price: $9.90
  • Ref No:
  • Part No: 160367
  • Qty Req: 1
Our price: $8.30 List price: $10.00
  • Ref No:
  • Part No: 160369
  • Qty Req: 1
Our price: $11.45 List price: $13.80
  • Ref No:
  • Part No: 160458
  • Qty Req: 1
Our price: $411.76 List price: $496.10
  • Ref No:
  • Part No: 180402
  • Qty Req: 8
Our price: $2.41 List price: $2.90
  • Ref No:
  • Part No: 180418
  • Qty Req: 4
Our price: $2.16 List price: $2.60
  • Ref No:
  • Part No: 180426
  • Qty Req: 5
Our price: $1.91 List price: $2.30
  • Ref No:
  • Part No: 180457
  • Qty Req: 4
Our price: $1.91 List price: $2.30
  • Ref No:
  • Part No: 605859
  • Qty Req: 1
Our price: $7.47 List price: $9.00
