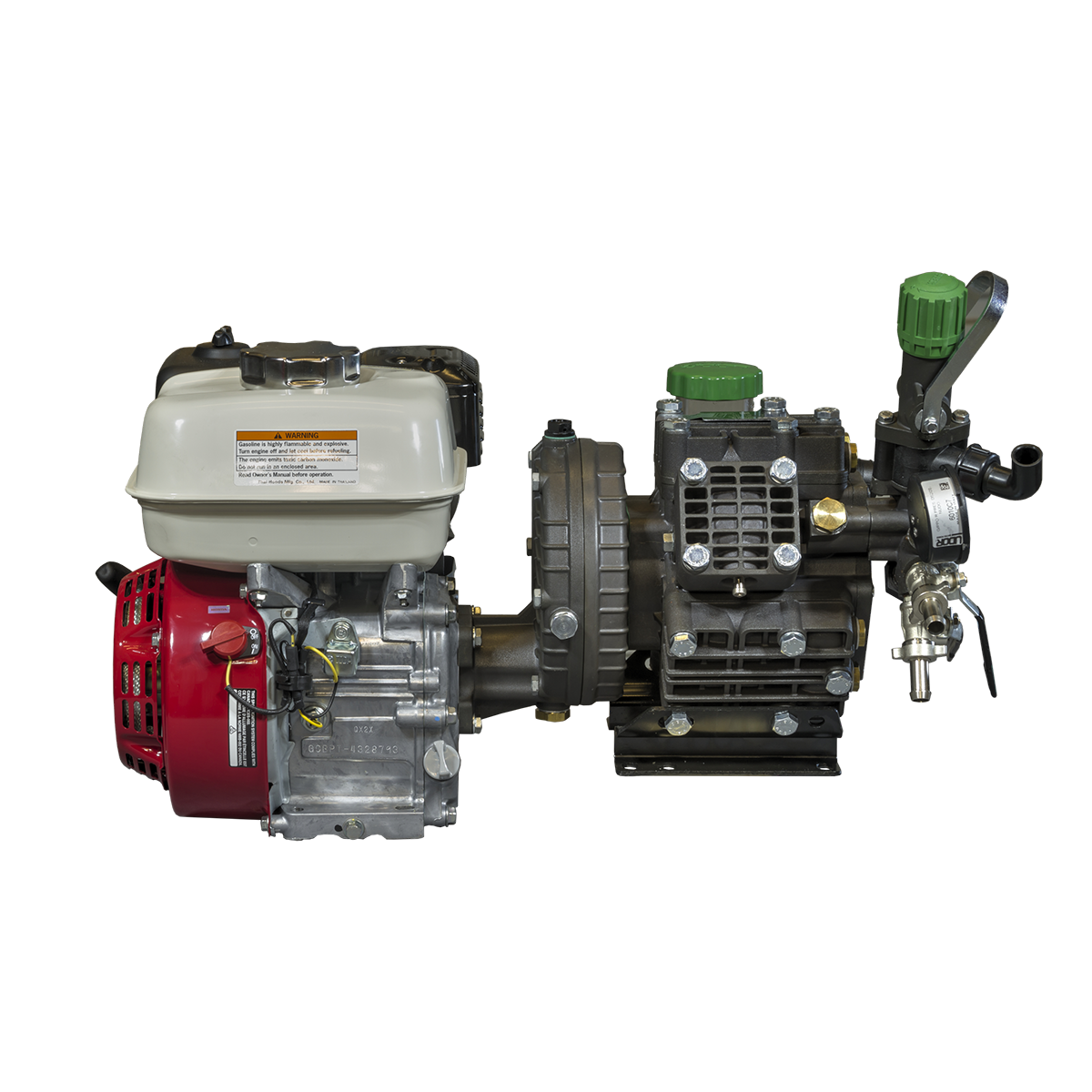

Udor KAPPA-55/GR5 & Honda GX 160 Engine Assembly

Udor KAPPA-55/GR5 & Honda GX 160 Engine Assembly

Item Code:
GXK55
Weight:
88.0 lb
Manufacturer:
Udor
Our price:
$1,550.00
List price:
$1,550.00
Overview:

The Udor KAPPA-55 diaphragm pump is well-suited to spraying pesticides, fertilizers, herbicides, and other common chemicals. Combined with the reliable and easy-to-maintain Honda GX160 engine, it becomes a versatile assembly that can be bolted to a rig and put towards a wide variety of applications, including pressure washing, lawn and garden care, and industrial and agricultural spraying.

Manufacturer Description:

KAPPA-55 3-cylinder, medium pressure diaphragm pump with control unit and gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines. These pumps are excellent choices for various horticulture, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-55 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions Ð without sacrificing power output or performance.

Features:

GXK55
  • Max flow: 15 gpm
  • Max pressure: 350 psi
  • Includes 6010.24/LP control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 47 lbs Honda GX160 Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)
