Product Overview

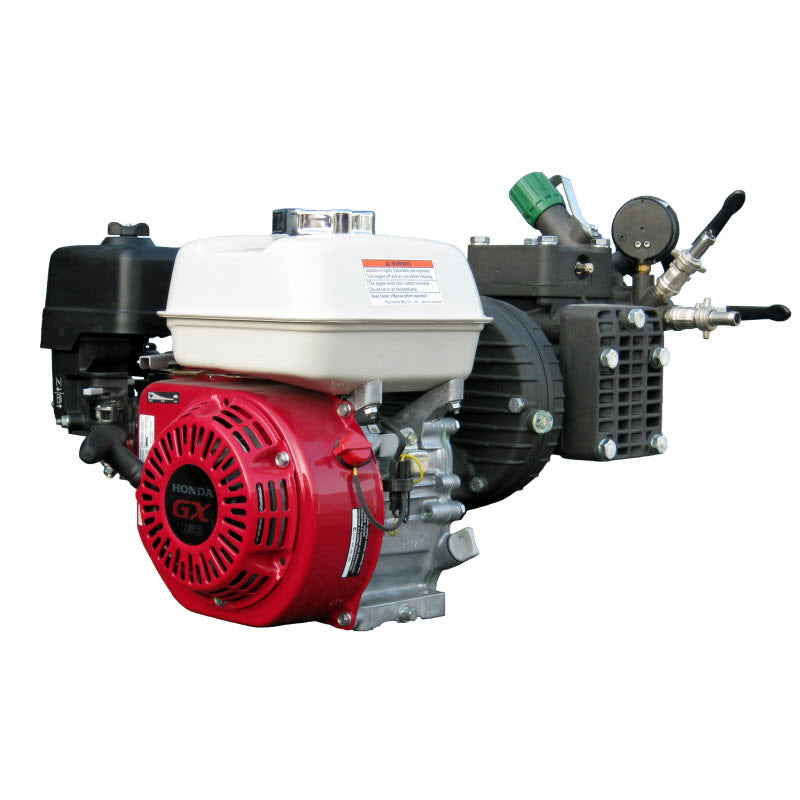

Expert mechanics assemble this complete Udor KAPPA-40/GR & Honda GX 160 Engine, making it ready to drop into place on commercial sprayer units. It is ideal for professionals unable to construct a pump motor combination on their own. The easy installation process requires just bolting the Honda Engine down and attaching the hoses. The regulator is detached during shipping to avoid damage.

Manufacturer description

Two diaphragm pump with universal drive face, pulsation dampener & control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. Also includes gearbox with 3/4" hollow shaft for attaching to gas engine. The KAPPA series pumps are internally manifolded with anodized aluminum construction. KAPPA-30 & KAPPA-40 medium pressure, 2-cylinder diaphragm pumps are excellent choices for various horticulture, agricultural, lawn care, pest control and turf spraying applications. They are also effectively used in other applications such as aircraft de-icing, hydrostatic testing and cleaning. KAPPA-30 & KAPPA-40 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Honda's GX series engines are legendary for superior reliability and performance. And there's no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions without sacrificing power output or performance.


  • Max flow: 10.5 gpm
  • Max pressure: 560 psi
  • Includes 6010.24 control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet and 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F Honda GX160 Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)
