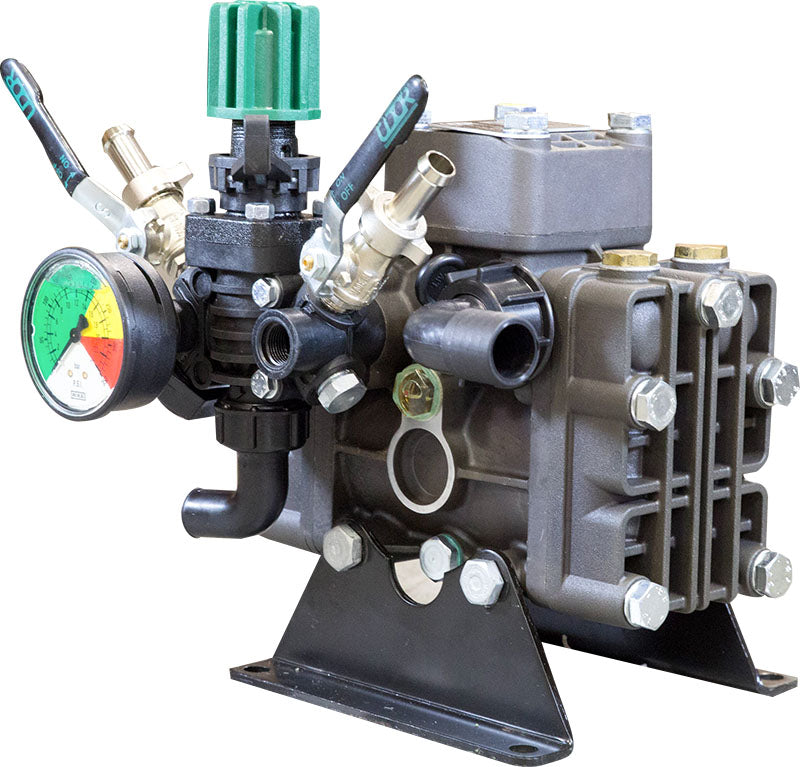

Udor KAPPA-25 Diaphragm Pump

Udor KAPPA-25 Diaphragm Pump

Brand:
Udor
Weight:
18.0 lb
Item #
KAPPA25
1 1

Udor KAPPA-25 Diaphragm Pump

Udor KAPPA-25 Diaphragm Pump

Brand:
Udor
Weight:
18.0 lb
Item #
KAPPA25

$758.96
$758.96 List Price: $1,379.90

Earn 2,277 points with this purchase.

See Details

View full details

Product Overview

7 GPM, 350 PSI

Two diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump valve, dual ball valve outlets & pressure gauge.

Equipped with a 25 mm keyed shaft & mounting rails.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Needle Bearing
    • Ref No: 153
    • Part No: 000615
    • Qty Req: 1
    Our price: $108.40 List price: $130.60
  • Shaft Seal
    • Ref No: 180
    • Part No: 000740
    • Qty Req: 1
    Our price: $19.93 List price: $24.00
  • Diaphragm Bolt (KAPPA-30/33/40/43/55/75/100)
    • Ref No: 240
    • Part No: 0010204
    • Qty Req: 2
    Our price: $24.90 List price: $30.00
  • Connecting Rod
    • Ref No: 267
    • Part No: 010354
    • Qty Req: 2
    Our price: $41.00 List price: $49.40
  • Piston Sleeve
    • Ref No: 496
    • Part No: 020646
    • Qty Req: 2
    Our price: $115.96 List price: $139.70
  • Accumulator Head
    • Ref No: 569
    • Part No: 020846
    • Qty Req: 1
    Our price: $82.41 List price: $99.30
  • Pump Body
    • Ref No: 583
    • Part No: 020983
    • Qty Req: 1
    Our price: $286.35 List price: $345.00
  • Bearing
    • Ref No: 697
    • Part No: 021418
    • Qty Req: 1
    Our price: $105.16 List price: $126.70
  • Diaphragm Washer
    • Ref No: 808
    • Part No: 030143
    • Qty Req: 3
    Our price: $15.68 List price: $18.90
  • Spacer
    • Ref No: 865
    • Part No: 030157
    • Qty Req: 1
    Our price: $7.56 List price: $9.10
  • Air Valve Assembly
    • Ref No: 11
    • Part No: 060816
    • Qty Req: 1
    Our price: $23.57 List price: $28.40
  • Shaft Key
    • Ref No: 1192
    • Part No: 080102
    • Qty Req: 1
    Our price: $4.64 List price: $5.60
  • Accumulator Diaphragm - Udor KAPPA-55
    • Ref No: 1295
    • Part No: 090308
    • Qty Req: 1
    Our price: $21.74 List price: $26.20
  • Piston Diaphragm Buna-N (Opt.)
    • Ref No: 1305
    • Part No: 090343
    • Qty Req: 3
    Our price: $33.37 List price: $40.20
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • O-Ring
    • Ref No: 1381
    • Part No: 110127
    • Qty Req: 4
    Our price: $3.32 List price: $4.00
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 4
    Our price: $2.99 List price: $3.60
  • Pump Rail
    • Ref No: 1447
    • Part No: 120202
    • Qty Req: 1
    Our price: $39.68 List price: $47.80
  • Pump Rail w/ Notch
    • Ref No: 1467
    • Part No: 120247
    • Qty Req: 1
    Our price: $39.68 List price: $47.80
  • Valve Assembly for Udor Diaphragm Pumps
    • Ref No: 1702
    • Part No: 600601
    • Qty Req: 4
    Our price: $33.94 List price: $40.90
  • Head Assembly
    • Ref No: 1722
    • Part No: 601713
    • Qty Req: 3
    Our price: $139.03 List price: $167.50
  • Piston/ Rod Assembly
    • Ref No: 1738
    • Part No: 601550
    • Qty Req: 2
    Our price: $137.12 List price: $165.20
  • Washer
    • Ref No: 18
    • Part No: 140309
    • Qty Req: 14
    Our price: $1.67 List price: $2.00
  • Connecting Rod Pin
    • Ref No: 1964
    • Part No: 150203
    • Qty Req: 2
    Our price: $17.60 List price: $21.20
  • Snap Ring
    • Ref No: 2051
    • Part No: 150615
    • Qty Req: 2
    Our price: $2.25 List price: $2.70
  • Snap Ring
    • Ref No: 2057
    • Part No: 150618
    • Qty Req: 1
    Our price: $4.23 List price: $5.10
  • Snap Ring
    • Ref No: 2058
    • Part No: 150609
    • Qty Req: 1
    Our price: $4.31 List price: $5.20
  • Head Plug
    • Ref No: 2268
    • Part No: 160332
    • Qty Req: 4
    Our price: $9.13 List price: $11.00
  • Oil Sight Glass
    • Ref No: 2269
    • Part No: 160333
    • Qty Req: 1
    Our price: $15.69 List price: $18.90
  • Plug
    • Ref No: 2282
    • Part No: 160350
    • Qty Req: 1
    Our price: $9.87 List price: $11.90
  • Bolt
    • Ref No: 2466
    • Part No: 180406
    • Qty Req: 3
    Our price: $2.66 List price: $3.20
  • Suction Elbow
    • Ref No: 7052
    • Part No: 020275
    • Qty Req: 1
    Our price: $16.27 List price: $19.60
  • Head Bolt
    • Ref No: 7947
    • Part No: 180421
    • Qty Req: 15
    Our price: $4.98 List price: $6.00
  • Piston Diaphragm Desmopan (Std.)
    • Ref No: 8120
    • Part No: 090350
    • Qty Req: 3
    Our price: $42.75 List price: $51.50
