Udor KAPPA-150/GR-ASSEMBLY

Udor KAPPA-150/GR-ASSEMBLY

Item Code:
KAPPA150GRASSY
Weight:
415.0 lb
Manufacturer:
Udor
Our price:
$7,214.38
List price:
$13,117.05
Overview:

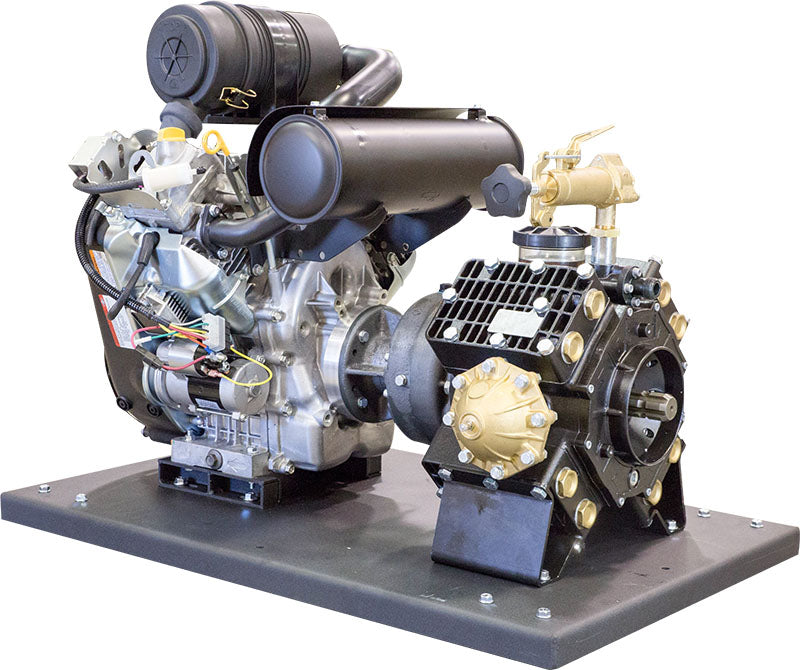

With features like gear reduction, a pressure regulator, a pressure gauge and a pulse dampener, this Udor assembly can help you with all of our industrial spraying applications. Its 31 HP engine comes with throttle control, a keyswitch, electric start and choke for full control and its eight rubber support bumpers give it a nice additional safety feature.

Manufacturer Description:

KAPPA-150/GR heavy duty diaphragm pump with gear reduction, pressure regulator, pulse dampener and pressure gauge. 31 HP Briggs big block engine with throttle control, keyswitch, electric start and choke. Heavy gauge steel base plate with black powder coated finish and eight rubber support bumpers. 36" L x 24" W x 30" H. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features:

  • Max flow: 42 gpm
  • Max pressure: 700 psi
  • Includes 6005.15 control unit, 5096.B5 gearbox with 1-1/8" hollow shaft coupled to Briggs 31 hp gas engine
  • Port sizes: 1-1/2" HB inlet, 3/4" MNPT and 3/4" FNPT outlet, 1" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 300 lbs
