Udor KAPPA-15/12-HP Volt Diaphragm Pump

Udor KAPPA-15/12-HP Volt Diaphragm Pump

Item Code:
35.0 lb
Our price:
List price:

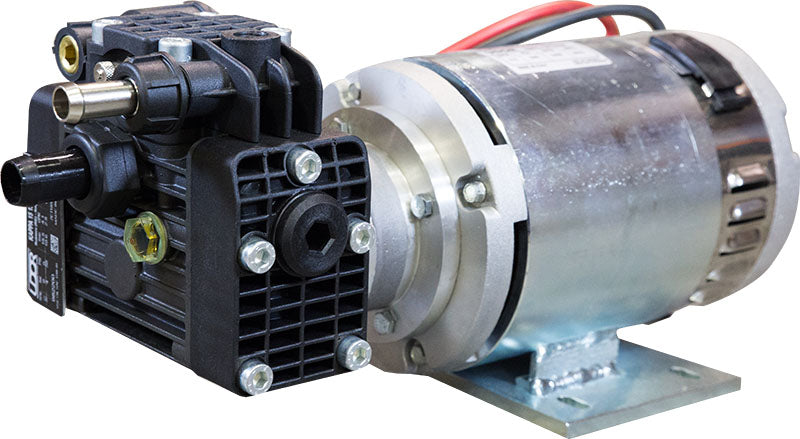

The Udor KAPPA-15/12-HP Volt Diaphragm Pump is a two diaphragm, low-pressure, and low-volume pump outfitted with a 12V DC electric motor and pulsation dampener. It is ideal for a range of spraying applications such as lawn care, pest and weed control, horticultural, agricultural, de-icing materials, and fluid transfer. The anodized aluminum unit contains glass-filled nylon heads and stainless steel liquid handling parts.

Manufacturer Description:

KAPPA Series 12-Volt-HP Diaphragm Pumps are excellent for various pest control, agricultural, lawn care & injection spraying applications. They are internally manifolded with anodized aluminum construction and have glass filled, nylon heads.


  • KAPPA-15 pump coupled to heavy duty 12-volt DC motor
  • Max flow: 3.5 gpm
  • Max pressure: 150 psi
  • Port sizes: 3/4" HB inlet, 1/2" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Recommended regulator: UD1/4-300 or 6815-1/2-300
  • Max amp draw: 35
  • Max fluid temperature: 140°F
  • Weight: 35 lbs
