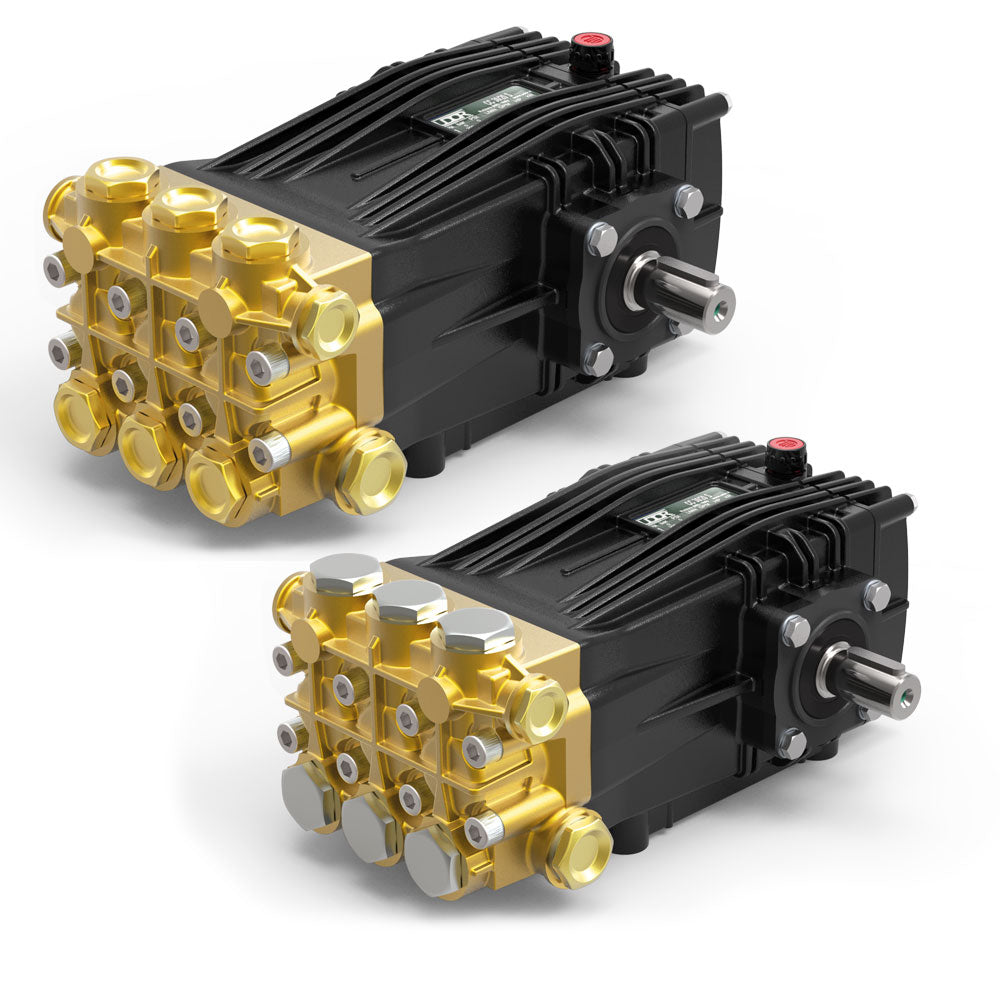

CKC Series 24mm Keyed Solid Shaft Plunger Pump

13.2 GPM, 2900 PSI, 25.6 HP Electric Power Requirement

CKC Series super duty plunger pumps include a wide range of models with flow rates from 4.5 to 13.2 GPM and pressures up to 5075 PSI. Other drive options include gas engine gear reduction and hydraulic motor flange. Applications include general pressure cleaning, sewer jetting, vehicle wash equipment, street cleaning, construction, hydro-excavation and UHP fire fighting applications.

Download Product Manual

• Max flow: 13.2 gpm
• Max pressure: 2900 psi
• Power requirement: 25.6 HP electric power
• Heavy Duty Brass Manifold with External and Internal Bracing
• Heavy Duty Bronze or Aluminum Connecting Rods
• Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
• Reinforcing Ring on Inlet and Discharge Ports
• Stainless Steel Piston Guides and Check Valves
• Heat Treated Crank Shaft
• Industrial Quality Tapered Roller Bearings
• Deeper Back Cover for Increased Oil Capacity
• 35 oz. Capacity Vented Oil Bath Crank Case
• 3/4″ BSP-F Inlet. 3/8″ BSP-F Outlet
• 3/4″ BSP-F Inlet. 1/2″ BSP-F Outlet: 10.0 GPM & Above
• Max Fluid Temp, 160°F
