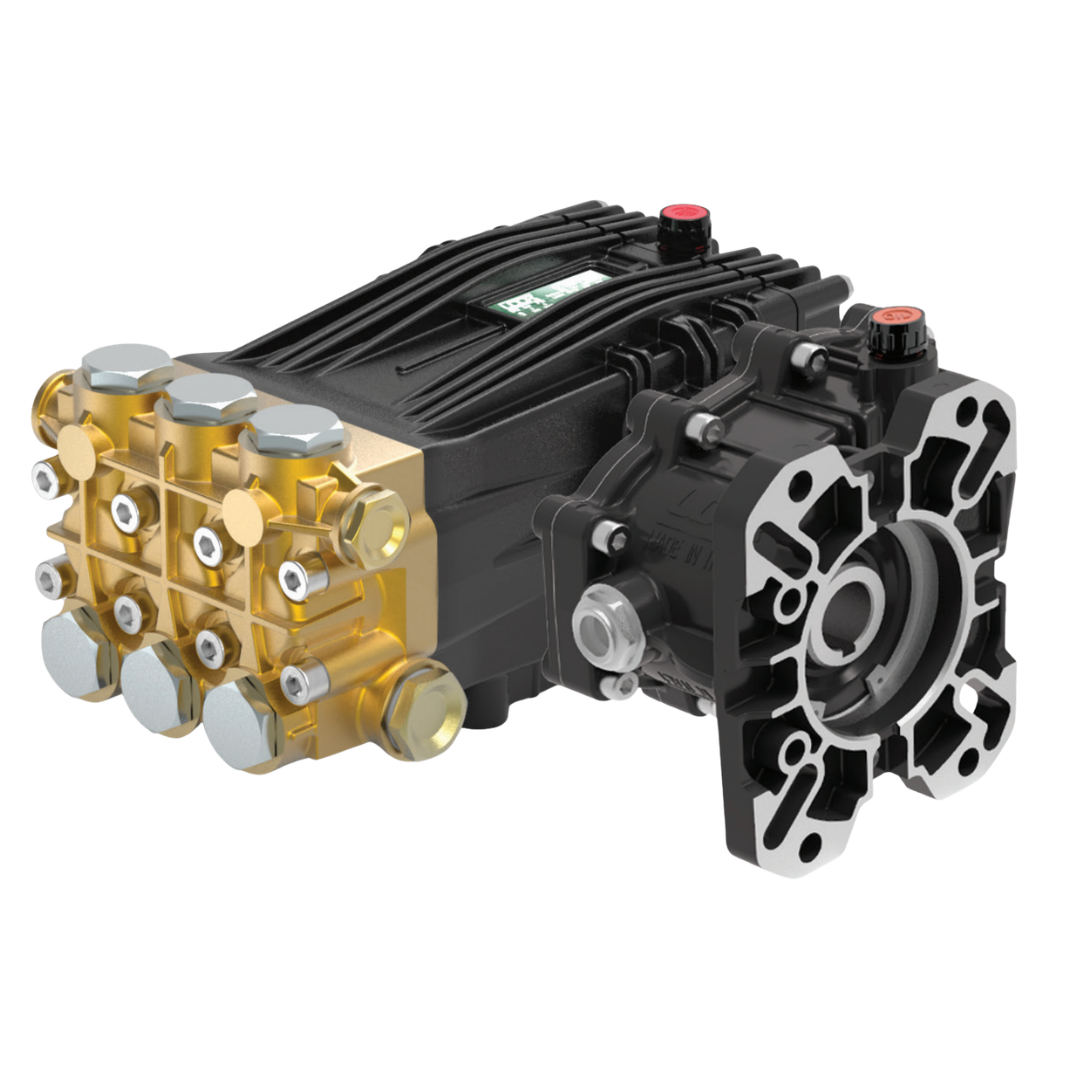

Udor GKC 50/17-GR Plunger Pump

Udor GKC 50/17-GR Plunger Pump

Brand:
Udor
Weight:
55.0 lb
Item #
GKC5017GR
Skip to product information
1 of 1

Udor GKC 50/17-GR Plunger Pump

Udor GKC 50/17-GR Plunger Pump

Brand:
Udor
Weight:
55.0 lb
Item #
GKC5017GR

Regular price $1,396.15
Sale price $1,396.15 Regular price List Price: $2,792.30

Earn 4,188 points with this purchase.

View full details

Collapsible content

Product Overview

The Udor GKC 50/17-GR plunger pump is built tough to be long lasting under high demand conditions. Suitable for fire suppression, hydro excavating, and sewer jetting among many other uses, this plunger pump has heavy duty reinforced brass heads with bracing externally and internally. Both the piston guides and check valves are made of stainless steel, and the Teflon® coated body guides are replaceable.

Manufacturer description

¥ Available with 1" or 1-1/8" gearbox, please specify when placing the order ¥ 13" L x 9-3/4" x 5-1/2" H (Solid Shaft Models) ¥ Heavy Duty Bronze Connecting Rod Assemblies with Guide Pins for Perfect Cap Alignment 2 Lbs each. ¥ Heavy Duty Reinforced Brass Heads with External and Internal Bracing ¥ Large Diameter Stainless Steel Valve Caps with Increased Thread Depth ¥ Deeper Back Covers for Increased Oil Capacity. 40oz. Crank Case Capacity ¥ Reinforcing Ring on Inlet And Discharge Ports Replaceable Teflon® Coated Body Guides ¥ Stainless Steel Piston Guides ¥ Stainless Steel Check Valves ¥ Max Fluid Temp 160¼ ¥ Heat Treated Crank Shaft ¥ Heavy Duty Flat Base High Pressure Seals ¥ Solid Ceramic Plungers ¥ Industrial Quality Tapered Roller Bearings

Features

  • Max flow: 12.5 gpm
  • Max pressure: 2500 psi
  • Max speed: 1450 rpm
  • Power requirement: 27.0 hp electric
  • Includes gearbox 5038.C2 with 1" hollow shaft for mounting on 8-20 hp or 5042.C2 with 1-1/8" hollow shaft for mounting on 8-24 hp engines - Please specify when ordering
  • Max fluid temperature: 160°F
  • Weight: 55 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seal
    • Ref No: sku:000738
    • Part No: 000738
    • Qty Req: 1
    Our price: $18.09 List price: $21.80
  • Seal
    • Ref No: sku:000743
    • Part No: 000743
    • Qty Req: 3
    Our price: $16.35 List price: $19.70
  • Plunger Rod
    • Ref No: sku:001419
    • Part No: 001419
    • Qty Req: 3
    Our price: $50.46 List price: $60.80
  • Support Ring
    • Ref No: sku:002323
    • Part No: 002323
    • Qty Req: 3
    Our price: $2.32 List price: $2.80
  • Rod Guide
    • Ref No: sku:011508
    • Part No: 011508
    • Qty Req: 3
    Our price: $20.34 List price: $24.50
  • Back Cover
    • Ref No: sku:020871
    • Part No: 020871
    • Qty Req: 1
    Our price: $42.16 List price: $50.80
  • Crankcase
    • Ref No: sku:020954
    • Part No: 020954
    • Qty Req: 1
    Our price: $316.89 List price: $381.80
  • Bearing
    • Ref No: sku:024803
    • Part No: 024803
    • Qty Req: 2
    Our price: $107.98 List price: $130.10
  • Bearing Cap
    • Ref No: sku:0501C6
    • Part No: 0501C6
    • Qty Req: 1
    Our price: $35.86 List price: $43.20
  • Bearing Cap
    • Ref No: sku:0501C7
    • Part No: 0501C7
    • Qty Req: 1
    Our price: $35.86 List price: $43.20
  • Gasket
    • Ref No: sku:060275
    • Part No: 060275
    • Qty Req: 1
    Our price: $10.04 List price: $12.10
  • Gasket
    • Ref No: sku:060540
    • Part No: 060540
    • Qty Req: 2
    Our price: $2.24 List price: $2.70
  • Gasket
    • Ref No: sku:060542
    • Part No: 060542
    • Qty Req: 2
    Our price: $2.41 List price: $2.90
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • Key
    • Ref No: sku:080117
    • Part No: 080117
    • Qty Req: 1
    Our price: $4.57 List price: $5.50
  • O-Ring
    • Ref No: sku:110117
    • Part No: 110117
    • Qty Req: 6
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: sku:110164
    • Part No: 110164
    • Qty Req: 6
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: sku:110173
    • Part No: 110173
    • Qty Req: 2
    Our price: $4.90 List price: $5.90
  • O-Ring
    • Ref No: sku:1101A8
    • Part No: 1101A8
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: sku:1101A9
    • Part No: 1101A9
    • Qty Req: 3
    Our price: $2.49 List price: $3.00
  • Plunger
    • Ref No: sku:120534
    • Part No: 120534
    • Qty Req: 3
    Our price: $92.30 List price: $111.20
  • Washer
    • Ref No: sku:140305
    • Part No: 140305
    • Qty Req: 8
    Our price: $1.00 List price: $1.20
  • Plunger Washer
    • Ref No: sku:140333
    • Part No: 140333
    • Qty Req: 3
    Our price: $3.74 List price: $4.50
  • Lock Washer
    • Ref No: sku:141103
    • Part No: 141103
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: sku:150214
    • Part No: 150214
    • Qty Req: 3
    Our price: $4.90 List price: $5.90
  • Shim
    • Ref No: sku:153403
    • Part No: 153403
    • Qty Req: 1
    Our price: $5.15 List price: $6.20
  • Shim
    • Ref No: sku:153404
    • Part No: 153404
    • Qty Req: 1
    Our price: $4.98 List price: $6.00
  • Oil Plug
    • Ref No: sku:160302
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Inlet Plug 3/4"
    • Ref No: sku:160362
    • Part No: 160362
    • Qty Req: 2
    Our price: $11.87 List price: $14.30
  • Manifold Plug
    • Ref No: sku:160374
    • Part No: 160374
    • Qty Req: 2
    Our price: $13.70 List price: $16.50
  • Valve Cap
    • Ref No: sku:1603B5
    • Part No: 1603B5
    • Qty Req: 6
    Our price: $36.60 List price: $44.10
  • Oil Sight Gauge
    • Ref No: sku:1603B8
    • Part No: 1603B8
    • Qty Req: 1
    Our price: $16.85 List price: $20.30
  • Manifold
    • Ref No: sku:160483
    • Part No: 160483
    • Qty Req: 1
    Our price: $584.07 List price: $703.70
  • Bolt
    • Ref No: sku:180425
    • Part No: 180425
    • Qty Req: 8
    Our price: $5.15 List price: $6.20
  • Bolt
    • Ref No: sku:180452
    • Part No: 180452
    • Qty Req: 5
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: sku:180482
    • Part No: 180482
    • Qty Req: 8
    Our price: $2.24 List price: $2.70
  • Bronze Connecting Rod
    • Ref No: sku:600052
    • Part No: 600052
    • Qty Req: 3
    Our price: $227.92 List price: $274.60
  • Oil Dip Stick
    • Ref No: sku:605858
    • Part No: 605858
    • Qty Req: 1
    Our price: $7.47 List price: $9.00
