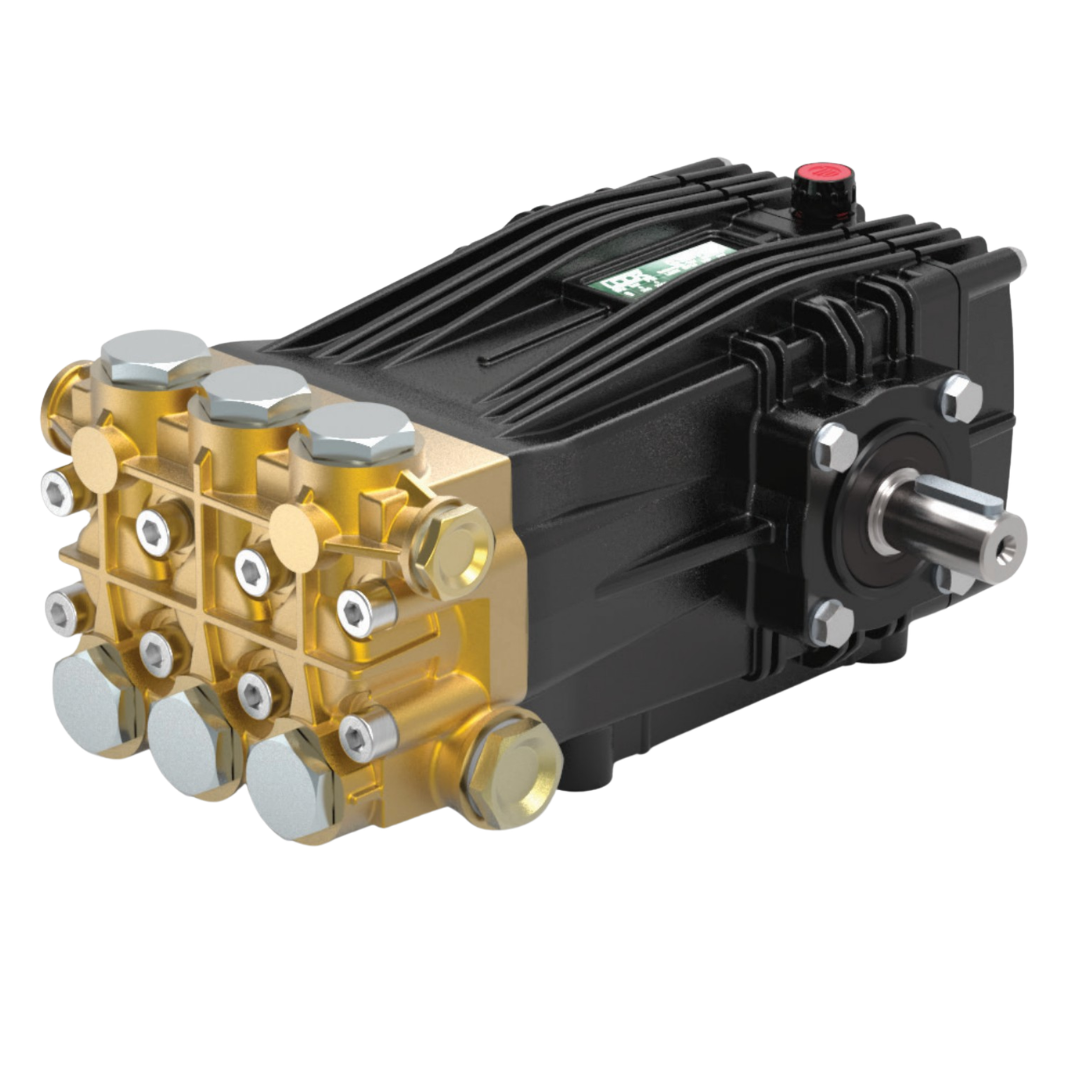

Udor GKC 42/17-S Plunger Pump

Udor GKC 42/17-S Plunger Pump

Brand:
Udor
Weight:
40.0 lb
Item #
GKC4217S
1 1

Udor GKC 42/17-S Plunger Pump

Udor GKC 42/17-S Plunger Pump

Brand:
Udor
Weight:
40.0 lb
Item #
GKC4217S

$1,219.60
$1,219.60 List Price: $2,439.20

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 3,659 points with this purchase.

See Details

View full details

Product Overview

Udor GKC 42/17-S Plunger Pump

(Replaced by CKC 42/20 S)

11.6 GPM, 2900 PSI, 22.6 HP electric power requirement

24mm keyed solid shaft, 1450 max RPM

Resources

Download Product Manual

Features

  • Max Flow: 11.6 GPM
  • Max Pressure: 4900 PSI
  • Heavy Duty Bronze or Aluminum Connecting Rods
  • Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
  • Reinforcing Ring on Inlet and Discharge Ports
  • Stainless Steel Piston Guides and Check Valves
  • Heat Treated Crank Shaft
  • Industrial Quality Tapered Roller Bearings
  • Deeper Back Cover for Increased Oil Capacity
  • 34.5 oz. Capacity Vented Oil Bath Crank Case
  • 3/4” BSP-F Inlet, 3/8” BSP-F Outlet – Less Than 10 GPM
  • 3/4” BSP-F Inlet, 1/2” BSP-F Outlet – 10 GPM and Above

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seal
    • Ref No: sku:000738
    • Part No: 000738
    • Qty Req: 1
    Our price: $20.83 List price: $25.10
  • Seal
    • Ref No: sku:000743
    • Part No: 000743
    • Qty Req: 3
    Our price: $18.76 List price: $22.60
  • Plunger Rod
    • Ref No: sku:001419
    • Part No: 001419
    • Qty Req: 3
    Our price: $57.85 List price: $69.70
  • Support Ring
    • Ref No: sku:002323
    • Part No: 002323
    • Qty Req: 3
    Our price: $2.73 List price: $3.30
  • Crankshaft
    • Ref No: sku:002827
    • Part No: 002827
    • Qty Req: 1
    Our price: $262.03 List price: $315.70
  • Rod Guide
    • Ref No: sku:011508
    • Part No: 011508
    • Qty Req: 3
    Our price: $23.41 List price: $28.20
  • Back Cover
    • Ref No: sku:020871
    • Part No: 020871
    • Qty Req: 1
    Our price: $48.39 List price: $58.30
  • Crankcase
    • Ref No: sku:020954
    • Part No: 020954
    • Qty Req: 1
    Our price: $362.95 List price: $437.30
  • Bearing
    • Ref No: sku:024803
    • Part No: 024803
    • Qty Req: 2
    Our price: $107.98 List price: $130.10
  • Slinger Ring
    • Ref No: sku:030141
    • Part No: 030141
    • Qty Req: 3
    Our price: $2.73 List price: $3.30
  • Bearing Cap
    • Ref No: sku:0501C6
    • Part No: 0501C6
    • Qty Req: 1
    Our price: $41.17 List price: $49.60
  • Bearing Cap
    • Ref No: sku:0501C7
    • Part No: 0501C7
    • Qty Req: 1
    Our price: $41.17 List price: $49.60
  • Gasket
    • Ref No: sku:060275
    • Part No: 060275
    • Qty Req: 1
    Our price: $11.62 List price: $14.00
  • Gasket
    • Ref No: sku:060540
    • Part No: 060540
    • Qty Req: 2
    Our price: $2.74 List price: $3.30
  • Gasket
    • Ref No: sku:060542
    • Part No: 060542
    • Qty Req: 2
    Our price: $2.91 List price: $3.50
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 1
    Our price: $3.32 List price: $4.00
  • Key
    • Ref No: sku:080117
    • Part No: 080117
    • Qty Req: 1
    Our price: $5.32 List price: $6.40
  • O-Ring
    • Ref No: sku:110117
    • Part No: 110117
    • Qty Req: 6
    Our price: $3.07 List price: $3.70
  • O-Ring
    • Ref No: sku:110164
    • Part No: 110164
    • Qty Req: 6
    Our price: $3.32 List price: $4.00
  • O-Ring
    • Ref No: sku:110173
    • Part No: 110173
    • Qty Req: 2
    Our price: $5.82 List price: $6.90
  • O-Ring
    • Ref No: sku:1101A8
    • Part No: 1101A8
    • Qty Req: 3
    Our price: $2.65 List price: $3.20
  • O-Ring
    • Ref No: sku:1101A9
    • Part No: 1101A9
    • Qty Req: 3
    Our price: $2.99 List price: $3.60
  • Plunger
    • Ref No: sku:120534
    • Part No: 120534
    • Qty Req: 3
    Our price: $105.75 List price: $127.40
  • Washer
    • Ref No: sku:140305
    • Part No: 140305
    • Qty Req: 8
    Our price: $1.67 List price: $2.00
  • Plunger Washer
    • Ref No: sku:140333
    • Part No: 140333
    • Qty Req: 3
    Our price: $4.40 List price: $5.30
  • Lock Washer
    • Ref No: sku:141103
    • Part No: 141103
    • Qty Req: 8
    Our price: $2.25 List price: $2.70
  • Connecting Rod
    • Ref No: sku:150214
    • Part No: 150214
    • Qty Req: 3
    Our price: $5.73 List price: $6.90
  • Shim
    • Ref No: sku:153403
    • Part No: 153403
    • Qty Req: 1
    Our price: $5.98 List price: $7.20
  • Shim
    • Ref No: sku:153404
    • Part No: 153404
    • Qty Req: 1
    Our price: $5.81 List price: $7.00
  • Oil Plug
    • Ref No: sku:160302
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Inlet Plug 3/4"
    • Ref No: sku:160362
    • Part No: 160362
    • Qty Req: 2
    Our price: $13.70 List price: $16.50
  • Manifold Plug
    • Ref No: sku:160374
    • Part No: 160374
    • Qty Req: 2
    Our price: $15.78 List price: $19.00
  • Valve Cap
    • Ref No: sku:1603B5
    • Part No: 1603B5
    • Qty Req: 6
    Our price: $41.99 List price: $50.60
  • Oil Sight Gauge
    • Ref No: sku:1603B8
    • Part No: 1603B8
    • Qty Req: 1
    Our price: $19.42 List price: $23.40
  • Manifold
    • Ref No: sku:160483
    • Part No: 160483
    • Qty Req: 1
    Our price: $668.81 List price: $805.80
  • Bolt
    • Ref No: sku:180425
    • Part No: 180425
    • Qty Req: 8
    Our price: $5.15 List price: $6.20
  • Bolt
    • Ref No: sku:180452
    • Part No: 180452
    • Qty Req: 5
    Our price: $2.33 List price: $2.80
  • Bolt
    • Ref No: sku:180482
    • Part No: 180482
    • Qty Req: 8
    Our price: $2.65 List price: $3.20
  • Bronze Connecting Rod
    • Ref No: sku:600052
    • Part No: 600052
    • Qty Req: 3
    Our price: $261.04 List price: $314.50
  • Oil Dip Stick
    • Ref No: sku:605858
    • Part No: 605858
    • Qty Req: 1
    Our price: $8.88 List price: $10.70
