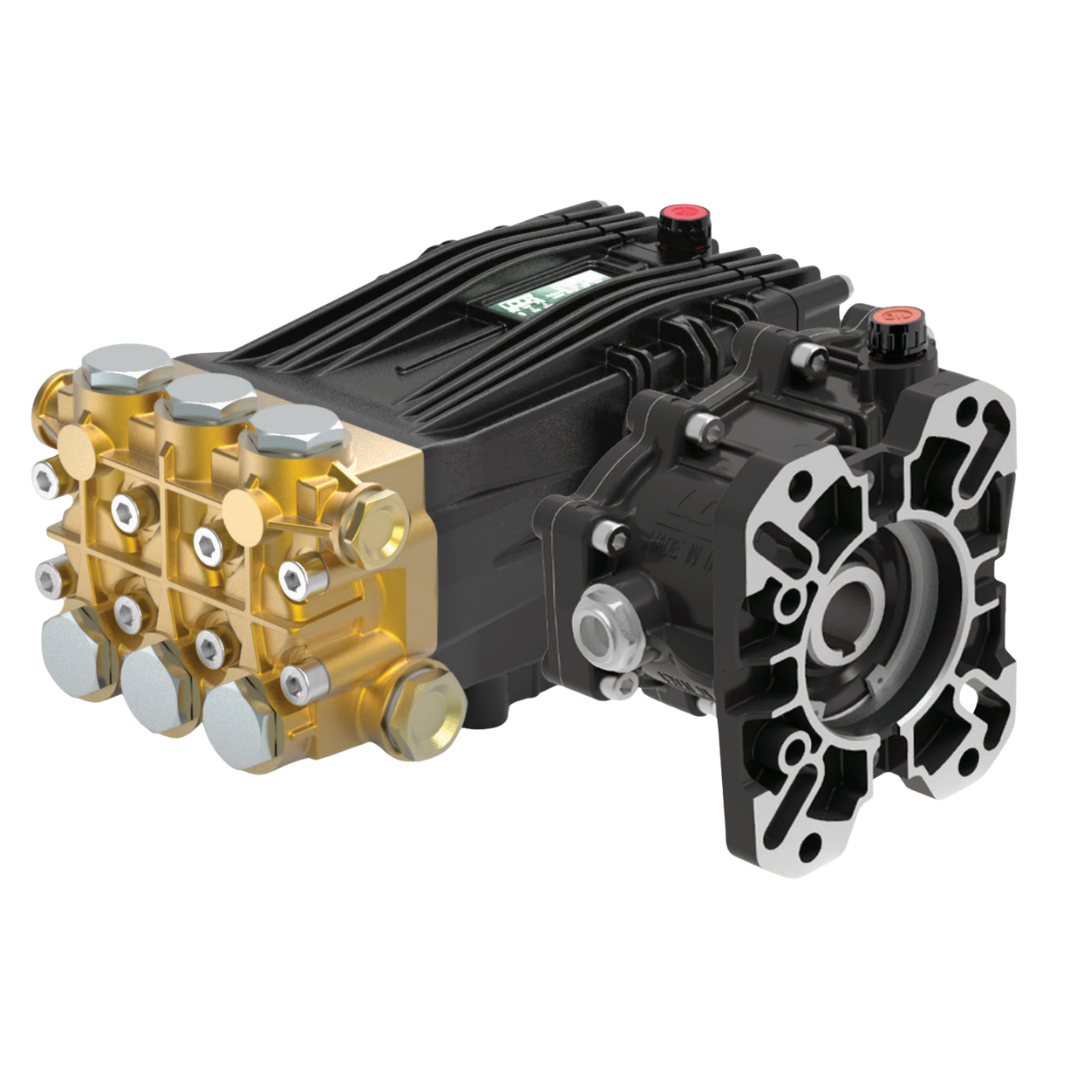

Udor GKC 42/17-GR Plunger Pump

Udor GKC 42/17-GR Plunger Pump

Item Code:
GKC4217GR
Weight:
55.0 lb
Manufacturer:
Udor
Our price:
$1,122.70
List price:
$2,245.40
Overview:

Udor GKC 42/17-GR Plunger Pump

11.5 gpm, 2500 psi, 27 HP Gas Engine Power Requirement

1" or 1-1/8" Hollow Shaft 2.2:1 Gear Reduction. Please specify the shaft size you require when ordering.

Features:

-13" L x 9-3/4" x 5-1/2" H (Solid Shaft Models)

-Heavy Duty Bronze Connecting Rod Assemblies with Guide Pins for Perfect Cap Alignment 2 Lbs each.

-Heavy Duty Reinforced Brass Heads with External and Internal Bracing

-Large Diameter Stainless Steel Valve Caps with Increased Thread Depth

-Deeper Back Covers for Increased Oil Capacity. 40oz. Crank Case Capacity

-Reinforcing Ring on Inlet And Discharge Ports Replaceable PTFE Coated Body Guides

-Stainless Steel Piston Guides

-Stainless Steel Check Valves

-Max Fluid Temp 160º

-Heat Treated Crank Shaft

-Heavy Duty Flat Base High Pressure Seals

-Solid Ceramic Plungers

-Industrial Quality Tapered Roller Bearings

Parts breakdown

Parts list

  • Ref No:
  • Part No: 000738
  • Qty Req: 1
Our price: $14.19 List price: $17.10
  • Ref No:
  • Part No: 000743
  • Qty Req: 3
Our price: $12.82 List price: $15.45
  • Ref No:
  • Part No: 001419
  • Qty Req: 3
Our price: $39.84 List price: $48.00
  • Ref No:
  • Part No: 002323
  • Qty Req: 3
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 002827
  • Qty Req: 1
Our price: $181.32 List price: $218.46
  • Ref No:
  • Part No: 011508
  • Qty Req: 3
Our price: $15.90 List price: $19.16
  • Ref No:
  • Part No: 020871
  • Qty Req: 1
Our price: $46.08 List price: $55.52
  • Ref No:
  • Part No: 020954
  • Qty Req: 1
Our price: $251.08 List price: $302.51
  • Ref No:
  • Part No: 024803
  • Qty Req: 2
Our price: $85.49 List price: $103.00
  • Ref No:
  • Part No: 030141
  • Qty Req: 3
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 0501C6
  • Qty Req: 1
Our price: $28.30 List price: $34.09
  • Ref No:
  • Part No: 0501C7
  • Qty Req: 1
Our price: $28.30 List price: $34.09
  • Ref No:
  • Part No: 060275
  • Qty Req: 1
Our price: $7.87 List price: $9.48
  • Ref No:
  • Part No: 060540
  • Qty Req: 2
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 060542
  • Qty Req: 2
Our price: $1.66 List price: $2.00
  • Ref No:
  • Part No: 060543
  • Qty Req: 1
Our price: $2.14 List price: $2.58
  • Ref No:
  • Part No: 080117
  • Qty Req: 1
Our price: $3.42 List price: $4.12
  • Ref No:
  • Part No: 110117
  • Qty Req: 6
Our price: $1.97 List price: $2.37
  • Ref No:
  • Part No: 110164
  • Qty Req: 6
Our price: $2.14 List price: $2.58
  • Ref No:
  • Part No: 110173
  • Qty Req: 2
Our price: $3.76 List price: $4.53
  • Ref No:
  • Part No: 1101A8
  • Qty Req: 3
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 1101A9
  • Qty Req: 3
Our price: $1.88 List price: $2.27
  • Ref No:
  • Part No: 120534
  • Qty Req: 3
Our price: $73.01 List price: $87.96
  • Ref No:
  • Part No: 140305
  • Qty Req: 8
Our price: $1.20 List price: $1.44
  • Ref No:
  • Part No: 140333
  • Qty Req: 3
Our price: $2.82 List price: $3.40
  • Ref No:
  • Part No: 141103
  • Qty Req: 8
Our price: $1.37 List price: $1.65
  • Ref No:
  • Part No: 150214
  • Qty Req: 3
Our price: $3.76 List price: $4.53
  • Ref No:
  • Part No: 153403
  • Qty Req: 1
Our price: $4.02 List price: $4.84
  • Ref No:
  • Part No: 153404
  • Qty Req: 1
Our price: $3.85 List price: $4.64
  • Ref No:
  • Part No: 160302
  • Qty Req: 1
Our price: $3.82 List price: $4.60
  • Ref No:
  • Part No: 160362
  • Qty Req: 2
Our price: $9.23 List price: $11.12
  • Ref No:
  • Part No: 160374
  • Qty Req: 2
Our price: $10.69 List price: $12.88
  • Ref No:
  • Part No: 1603B5
  • Qty Req: 6
Our price: $28.90 List price: $34.81
  • Ref No:
  • Part No: 1603B8
  • Qty Req: 1
Our price: $13.25 List price: $15.97
  • Ref No:
  • Part No: 160483
  • Qty Req: 1
Our price: $462.93 List price: $557.75
  • Ref No:
  • Part No: 180425
  • Qty Req: 8
Our price: $3.08 List price: $3.71
  • Ref No:
  • Part No: 180452
  • Qty Req: 5
Our price: $1.45 List price: $1.75
  • Ref No:
  • Part No: 180482
  • Qty Req: 8
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 605858
  • Qty Req: 1
Our price: $5.30 List price: $6.39
