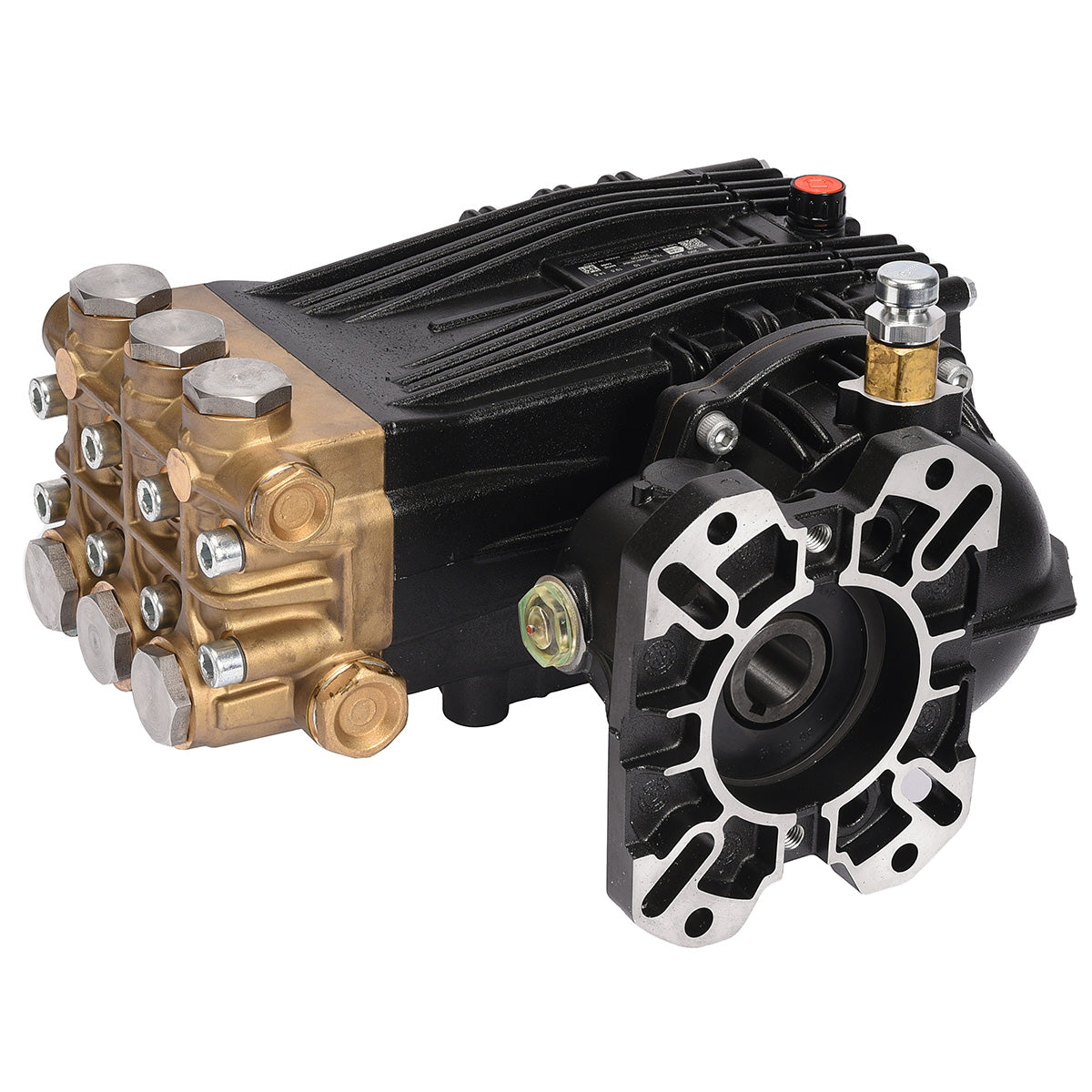

Udor GKC 38/20-GR1-1/8 Plunger Pump with 1-1/8” Hollow Shaft (Replaced by CKC 38/20-GR1-1/8)

10.0 GPM, 2,900 PSI, 25 HP Gas Engine Power Requirement

1-1/8” Hollow Shaft with 2.2:1 Gear Reduction.

**IMPORTANT PRODUCT INFORMATION**

This pump is equipped with a 1-1/8" hollow shaft. For a 1" hollow shaft configuration, please select model GKC3820GR. If you are unsure which configuration you need, please contact a customer service representative for assistance.

• Shaft Size: 1-1/8" Hollow
• Max flow: 10 GPM
• Max pressure: 2900 PSI
• Heavy Duty Brass Manifold with External and Internal Bracing
• Heavy Duty Bronze or Aluminum Connecting Rods
• Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
• Reinforcing Ring on Inlet and Discharge Ports
• Stainless Steel Piston Guides and Check Valves
• Heat Treated Crank Shaft
• Industrial Quality Tapered Roller Bearings
• Deeper Back Cover for Increased Oil Capacity
• 34.5 oz. Capacity Vented Oil Bath Crank Case
• 3/4” BSP-F Inlet, 3/8” BSP-F Outlet – Less Than 10 GPM
• 3/4” BSP-F Inlet, 1/2” BSP-F Outlet – 10 GPM and Above
