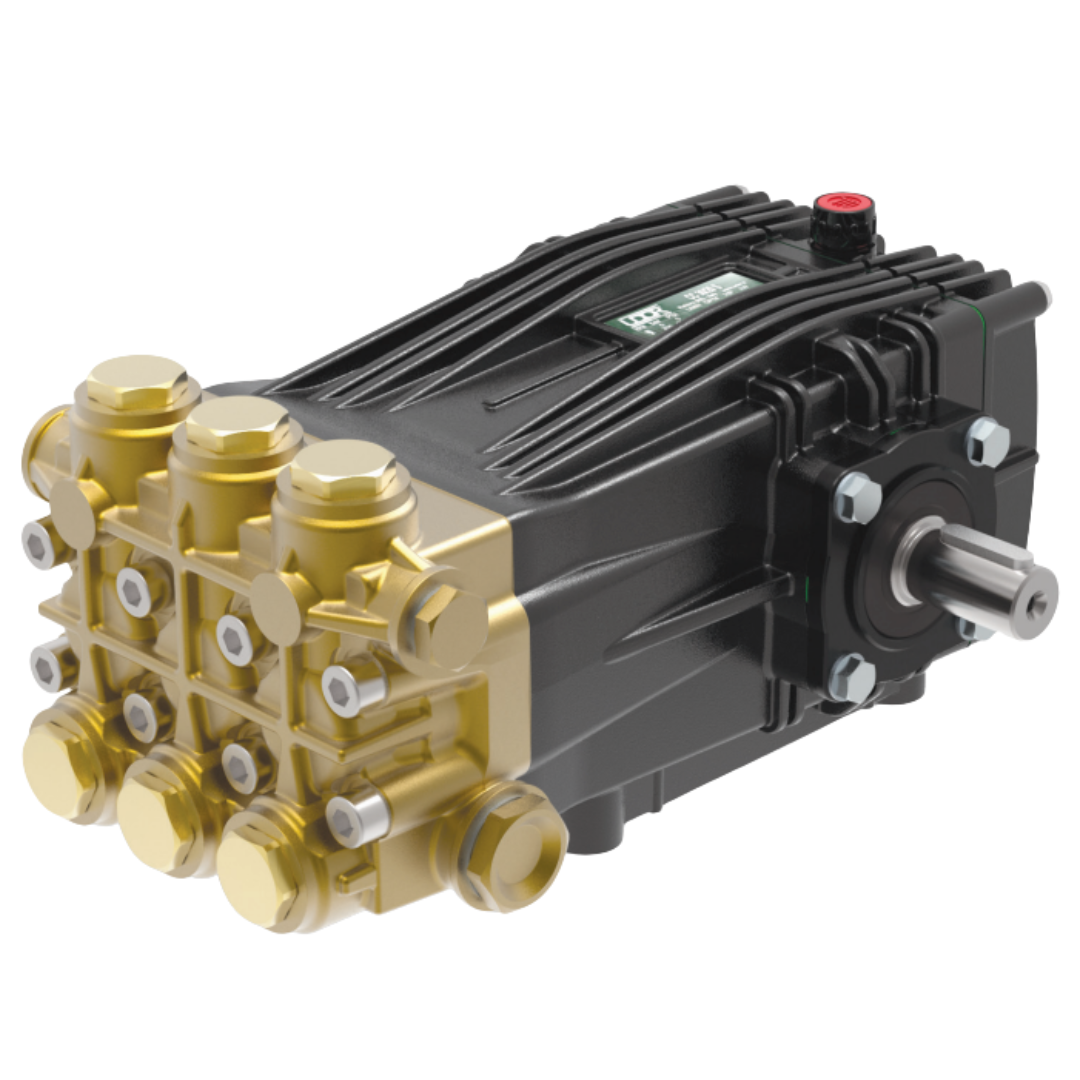

Udor GKC 21/28-S Plunger Pump

(Replaced by CKC 21/30 S)

5.5 GPM, 4350 PSI, 16.2 HP Electric Power Requirement

24MM Keyed Solid Shaft, 1450 Max RPM

• Max Flow: 5.5 gpm
• Max Pressure: 4350 psi
• Heavy Duty Brass Manifold with External and Internal Bracing
• Heavy Duty Bronze or Aluminum Connecting Rods
• Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
• Reinforcing Ring on Inlet and Discharge Ports
• Stainless Steel Piston Guides and Check Valves
• Heat Treated Crank Shaft
• Industrial Quality Tapered Roller Bearings
• Deeper Back Cover for Increased Oil Capacity
• 34.5 oz. Capacity Vented Oil Bath Crank Case
• 3/4” BSP-F Inlet, 3/8” BSP-F Outlet – Less Than 10 GPM
• 3/4” BSP-F Inlet, 1/2” BSP-F Outlet – 10 GPM and Above
• Max Fluid Temp 160°F
