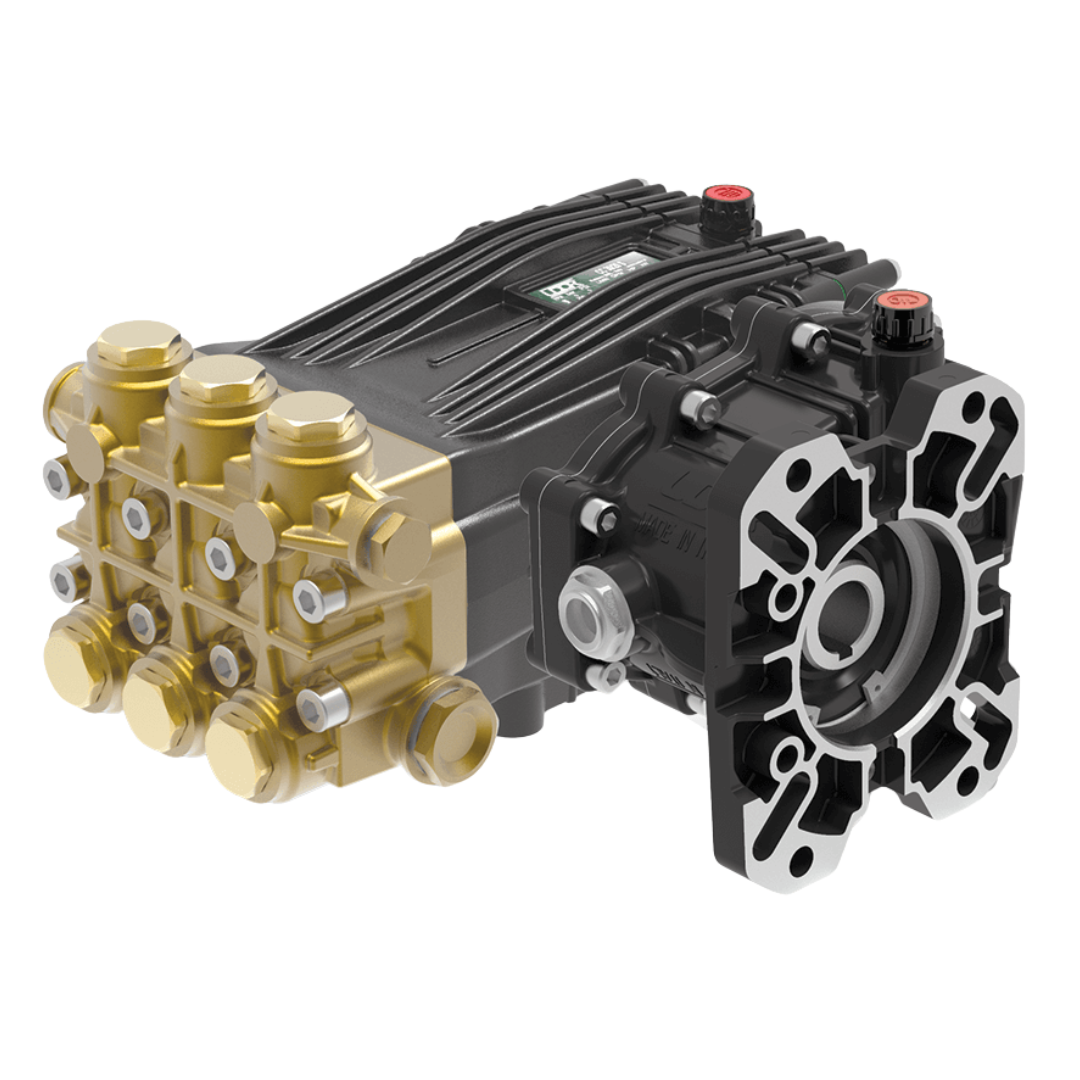

Udor GKC 17/28-GR Plunger Pump

Udor GKC 17/28-GR Plunger Pump

Brand:
Udor
Weight:
50.0 lb
Item #
GKC1728GR
Skip to product information
1 of 1

Udor GKC 17/28-GR Plunger Pump

Udor GKC 17/28-GR Plunger Pump

Brand:
Udor
Weight:
50.0 lb
Item #
GKC1728GR

Regular price $1,191.50
Sale price $1,191.50 Regular price List Price: $2,383.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,575 points with this purchase.

View full details

Collapsible content

Product Overview

Udor GKC 17/28-GR Plunger Pump

4.5 gpm, 4000 psi, 16 HP Gas Engine Power Requirement

1" or 1-1/8" Hollow Shaft 2.2:1 Gear Reduction. Please specify the shaft size you require when ordering.

Features:

-13" L x 9-3/4" x 5-1/2" H (Solid Shaft Models)

-Heavy Duty Bronze Connecting Rod Assemblies with Guide Pins for Perfect Cap Alignment 2 Lbs each.

-Heavy Duty Reinforced Brass Heads with External and Internal Bracing

-Large Diameter Stainless Steel Valve Caps with Increased Thread Depth

-Deeper Back Covers for Increased Oil Capacity. 40oz. Crank Case Capacity

-Reinforcing Ring on Inlet And Discharge Ports Replaceable PTFE Coated Body Guides

-Stainless Steel Piston Guides

-Stainless Steel Check Valves

-Max Fluid Temp 160º

-Heat Treated Crank Shaft

-Heavy Duty Flat Base High Pressure Seals

-Solid Ceramic Plungers

-Industrial Quality Tapered Roller Bearings

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seal
    • Ref No: sku:000738
    • Part No: 000738
    • Qty Req: 1
    Our price: $18.09 List price: $21.80
  • Seal
    • Ref No: sku:000743
    • Part No: 000743
    • Qty Req: 3
    Our price: $16.35 List price: $19.70
  • Plunger Rod
    • Ref No: sku:001419
    • Part No: 001419
    • Qty Req: 3
    Our price: $50.46 List price: $60.80
  • Support Ring
    • Ref No: sku:002323
    • Part No: 002323
    • Qty Req: 3
    Our price: $2.32 List price: $2.80
  • Crankshaft
    • Ref No: sku:002852
    • Part No: 002852
    • Qty Req: 1
    Our price: $358.15 List price: $431.50
  • Rod Guide
    • Ref No: sku:011508
    • Part No: 011508
    • Qty Req: 3
    Our price: $20.34 List price: $24.50
  • Back Cover
    • Ref No: sku:020871
    • Part No: 020871
    • Qty Req: 1
    Our price: $42.16 List price: $50.80
  • Crankcase
    • Ref No: sku:020954
    • Part No: 020954
    • Qty Req: 1
    Our price: $316.89 List price: $381.80
  • Bearing
    • Ref No: sku:024803
    • Part No: 024803
    • Qty Req: 2
    Our price: $107.98 List price: $130.10
  • Slinger Ring
    • Ref No: sku:030141
    • Part No: 030141
    • Qty Req: 3
    Our price: $2.32 List price: $2.80
  • Bearing Cap
    • Ref No: sku:0501C6
    • Part No: 0501C6
    • Qty Req: 1
    Our price: $35.86 List price: $43.20
  • Bearing Cap
    • Ref No: sku:0501C7
    • Part No: 0501C7
    • Qty Req: 1
    Our price: $35.86 List price: $43.20
  • Gasket
    • Ref No: sku:060275
    • Part No: 060275
    • Qty Req: 1
    Our price: $10.04 List price: $12.10
  • Aluminum Gasket
    • Ref No: sku:060509
    • Part No: 060509
    • Qty Req: 3
    Our price: $1.74 List price: $2.10
  • Gasket
    • Ref No: sku:060542
    • Part No: 060542
    • Qty Req: 2
    Our price: $2.41 List price: $2.90
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • Key
    • Ref No: sku:080117
    • Part No: 080117
    • Qty Req: 1
    Our price: $4.57 List price: $5.50
  • O-Ring
    • Ref No: sku:110117
    • Part No: 110117
    • Qty Req: 6
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: sku:110164
    • Part No: 110164
    • Qty Req: 6
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: sku:110173
    • Part No: 110173
    • Qty Req: 2
    Our price: $4.90 List price: $5.90
  • O-Ring
    • Ref No: sku:1101A8
    • Part No: 1101A8
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: sku:1101A9
    • Part No: 1101A9
    • Qty Req: 3
    Our price: $2.49 List price: $3.00
  • Plunger
    • Ref No: sku:120532
    • Part No: 120532
    • Qty Req: 3
    Our price: $74.95 List price: $90.30
  • Washer
    • Ref No: sku:140305
    • Part No: 140305
    • Qty Req: 8
    Our price: $1.00 List price: $1.20
  • Plunger Washer
    • Ref No: sku:140333
    • Part No: 140333
    • Qty Req: 3
    Our price: $3.74 List price: $4.50
  • Lock Washer
    • Ref No: sku:141103
    • Part No: 141103
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: sku:150214
    • Part No: 150214
    • Qty Req: 3
    Our price: $4.90 List price: $5.90
  • Shim
    • Ref No: sku:153403
    • Part No: 153403
    • Qty Req: 1
    Our price: $5.15 List price: $6.20
  • Shim
    • Ref No: sku:153404
    • Part No: 153404
    • Qty Req: 1
    Our price: $4.98 List price: $6.00
  • Oil Plug
    • Ref No: sku:160302
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Plug
    • Ref No: sku:160364
    • Part No: 160364
    • Qty Req: 2
    Our price: $8.47 List price: $10.20
  • Manifold Plug
    • Ref No: sku:160374
    • Part No: 160374
    • Qty Req: 2
    Our price: $13.70 List price: $16.50
  • Valve Cap
    • Ref No: sku:160393
    • Part No: 160393
    • Qty Req: 6
    Our price: $34.45 List price: $41.50
  • Oil Sight Gauge
    • Ref No: sku:1603B8
    • Part No: 1603B8
    • Qty Req: 1
    Our price: $16.85 List price: $20.30
  • Manifold
    • Ref No: sku:160477
    • Part No: 160477
    • Qty Req: 1
    Our price: $573.78 List price: $691.30
  • Bolt
    • Ref No: sku:180425
    • Part No: 180425
    • Qty Req: 8
    Our price: $5.15 List price: $6.20
  • Bolt
    • Ref No: sku:180452
    • Part No: 180452
    • Qty Req: 5
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: sku:180482
    • Part No: 180482
    • Qty Req: 8
    Our price: $2.24 List price: $2.70
  • Bronze Connecting Rod
    • Ref No: sku:600052
    • Part No: 600052
    • Qty Req: 3
    Our price: $227.92 List price: $274.60
  • Oil Dip Stick
    • Ref No: sku:605858
    • Part No: 605858
    • Qty Req: 1
    Our price: $7.47 List price: $9.00
