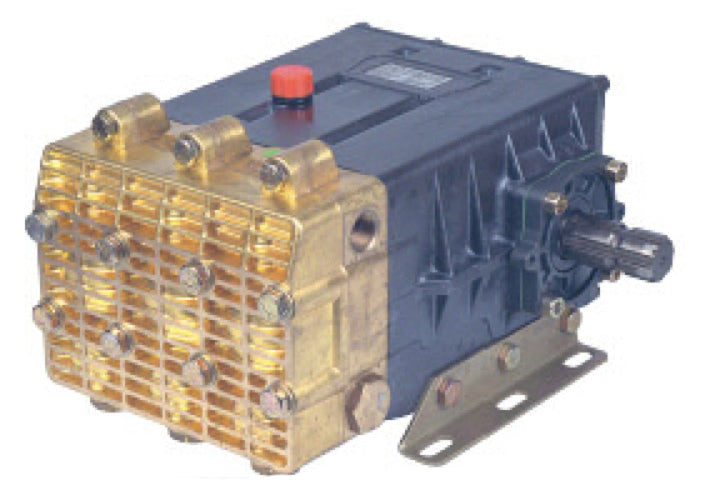

Udor GAMMA-62B/CC Plunger Pump

Udor GAMMA-62B/CC Plunger Pump

Brand:
Udor
Weight:
80.0 lb
Item #
GAMMA62BCC
1 1

Udor GAMMA-62B/CC Plunger Pump

Udor GAMMA-62B/CC Plunger Pump

Brand:
Udor
Weight:
80.0 lb
Item #
GAMMA62BCC

$2,716.30
$2,716.30 List Price: $5,432.60

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 8,149 points with this purchase.

See Details

View full details

Product Overview

Udor GAMMA-62B/CC Plunger Pump

16 GPM, 1500 PSI, 15 HP Electric Power Requirement.

Three Cylinder Plunger Pump of Anodized Aluminum, Brass Manifolds, Construction with Ceramic Plungers and Dual 1-3/8", 6-Spline Male Shaft. Max RPM - 600. On all Thru-Shaft Applications, Shaft Protector #1219.15 is Recommended. Please Order Separately.

Features:

•Large Capacity Vented Oil Bath Crank Case

•Solid Ceramic Plungers

•Heat Treated Crank Shaft

•Stainless Steel Check Valves

•1-1/4" Hose Barb Inlet (3-Cylinder), 2" Hose Barb Inlet (6-Cylinder)

•(2) 3/4" Outlets (3-Cylinder), (4) 3/4" Outlets (6-Cylinder)

•Industrial Quality Tapered Roller Bearings

•Heavy Duty Bronze Connecting Rods

•Max. Fluid Temp. 160° F

•Replaceable PTFE Coated Body Guides

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Crankshaft
    • Ref No: sku:000297
    • Part No: 000297
    • Qty Req: 1
    Our price: $1,210.23 List price: $1,458.10
  • Seal
    • Ref No: sku:000702
    • Part No: 000702
    • Qty Req: 1
    Our price: $27.73 List price: $33.40
  • Seal
    • Ref No: sku:000726
    • Part No: 000726
    • Qty Req: 3
    Our price: $21.91 List price: $26.40
  • High Pressure V-Packing
    • Ref No: sku:002109
    • Part No: 002109
    • Qty Req: 3
    Our price: $37.93 List price: $45.70
  • Plunger Bolt
    • Ref No: sku:010213
    • Part No: 010213
    • Qty Req: 3
    Our price: $31.45 List price: $37.90
  • Plunger Guide Bushing
    • Ref No: sku:011506
    • Part No: 011506
    • Qty Req: 3
    Our price: $57.36 List price: $69.10
  • Suction Elbow - Brass
    • Ref No: sku:020291
    • Part No: 020291
    • Qty Req: 1
    Our price: $64.32 List price: $77.50
  • Crank Cover
    • Ref No: sku:020856
    • Part No: 020856
    • Qty Req: 1
    Our price: $82.41 List price: $99.30
  • Pump Body
    • Ref No: sku:020950
    • Part No: 020950
    • Qty Req: 1
    Our price: $1,291.47 List price: $1,556.00
  • Bearing
    • Ref No: sku:024808
    • Part No: 024808
    • Qty Req: 1
    Our price: $255.72 List price: $308.10
  • Slinger Ring
    • Ref No: sku:030149
    • Part No: 030149
    • Qty Req: 3
    Our price: $7.80 List price: $9.40
  • Spreader Ring
    • Ref No: sku:030716
    • Part No: 030716
    • Qty Req: 3
    Our price: $6.55 List price: $7.90
  • Bearing Cover
    • Ref No: sku:050160
    • Part No: 050160
    • Qty Req: 1
    Our price: $108.23 List price: $130.40
  • Gasket for Udor Gear Reduction
    • Ref No: sku:060205
    • Part No: 060205
    • Qty Req: 1
    Our price: $4.40 List price: $5.30
  • Gasket
    • Ref No: sku:060251
    • Part No: 060251
    • Qty Req: 1
    Our price: $11.21 List price: $13.50
  • Suction Nut - Brass
    • Ref No: sku:060413
    • Part No: 060413
    • Qty Req: 1
    Our price: $29.14 List price: $35.10
  • Aluminum Gasket
    • Ref No: sku:060509
    • Part No: 060509
    • Qty Req: 2
    Our price: $2.08 List price: $2.50
  • Gasket
    • Ref No: sku:060542
    • Part No: 060542
    • Qty Req: 2
    Our price: $2.91 List price: $3.50
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 1
    Our price: $3.32 List price: $4.00
  • Key
    • Ref No: sku:080121
    • Part No: 080121
    • Qty Req: 1
    Our price: $11.21 List price: $13.50
  • O-Ring
    • Ref No: sku:110102
    • Part No: 110102
    • Qty Req: 1
    Our price: $3.16 List price: $3.80
  • Plunger Bolt O-Ring
    • Ref No: sku:110106
    • Part No: 110106
    • Qty Req: 3
    Our price: $2.99 List price: $3.60
  • O-Ring
    • Ref No: sku:110146
    • Part No: 110146
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
  • O-Ring
    • Ref No: sku:110148
    • Part No: 110148
    • Qty Req: 1
    Our price: $7.97 List price: $9.60
  • O-Ring
    • Ref No: sku:110197
    • Part No: 110197
    • Qty Req: 1
    Our price: $7.80 List price: $9.40
  • O-Ring
    • Ref No: sku:110198
    • Part No: 110198
    • Qty Req: 3
    Our price: $6.13 List price: $7.40
  • O-Ring
    • Ref No: sku:1101E2
    • Part No: 1101E2
    • Qty Req: 6
    Our price: $3.07 List price: $3.70
  • Mounting Rail
    • Ref No: sku:120234
    • Part No: 120234
    • Qty Req: 2
    Our price: $24.65 List price: $29.70
  • GAMMA-60 PLUNGER
    • Ref No: sku:120529
    • Part No: 120529
    • Qty Req: 3
    Our price: $193.97 List price: $233.70
  • PTO Safety Shield (Optional)
    • Ref No: sku:121902
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: sku:121915
    • Part No: 121915
    • Qty Req: 1
    Our price: $20.41 List price: $24.60
  • Washer
    • Ref No: sku:140309
    • Part No: 140309
    • Qty Req: 3
    Our price: $1.67 List price: $2.00
  • Washer
    • Ref No: sku:140310
    • Part No: 140310
    • Qty Req: 3
    Our price: $1.67 List price: $2.00
  • Lock Washer
    • Ref No: sku:141103
    • Part No: 141103
    • Qty Req: 4
    Our price: $2.25 List price: $2.70
  • Wrist Pin
    • Ref No: sku:150212
    • Part No: 150212
    • Qty Req: 3
    Our price: $19.25 List price: $23.20
  • Inlet Adapter
    • Ref No: sku:150406
    • Part No: 150406
    • Qty Req: 1
    Our price: $94.53 List price: $113.90
  • Snap Ring
    • Ref No: sku:150611
    • Part No: 150611
    • Qty Req: 3
    Our price: $2.25 List price: $2.70
  • Oil Plug
    • Ref No: sku:160302
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Head Plug
    • Ref No: sku:160316
    • Part No: 160316
    • Qty Req: 1
    Our price: $5.74 List price: $6.90
  • Plug - Inlet
    • Ref No: sku:160330
    • Part No: 160330
    • Qty Req: 1
    Our price: $35.69 List price: $43.00
  • Oil Sight Glass
    • Ref No: sku:160333
    • Part No: 160333
    • Qty Req: 1
    Our price: $15.69 List price: $18.90
  • Plug
    • Ref No: sku:160364
    • Part No: 160364
    • Qty Req: 2
    Our price: $9.79 List price: $11.80
  • Manifold Plug
    • Ref No: sku:160374
    • Part No: 160374
    • Qty Req: 2
    Our price: $15.78 List price: $19.00
  • Head Outer Brass
    • Ref No: sku:1604A2
    • Part No: 1604A2
    • Qty Req: 1
    Our price: $1,507.78 List price: $1,816.60
  • Bolt
    • Ref No: sku:180403
    • Part No: 180403
    • Qty Req: 4
    Our price: $2.74 List price: $3.30
  • Head Bolt (Hex Head)
    • Ref No: sku:180412
    • Part No: 180412
    • Qty Req: 8
    Our price: $5.74 List price: $6.90
  • Bolt
    • Ref No: sku:180441
    • Part No: 180441
    • Qty Req: 3
    Our price: $2.74 List price: $3.30
  • Bolt
    • Ref No: sku:180504
    • Part No: 180504
    • Qty Req: 4
    Our price: $2.99 List price: $3.60
  • Bolt
    • Ref No: sku:180524
    • Part No: 180524
    • Qty Req: 3
    Our price: $2.33 List price: $2.80
  • Connecting Rod
    • Ref No: sku:600073
    • Part No: 600073
    • Qty Req: 3
    Our price: $262.77 List price: $316.60
  • Valve Assembly
    • Ref No: sku:600613
    • Part No: 600613
    • Qty Req: 6
    Our price: $48.47 List price: $58.40
  • Seal Kit - Complete w/Brass
    • Ref No: sku:603023
    • Part No: 603023
    • Qty Req: 3
    Our price: $172.23 List price: $207.50
