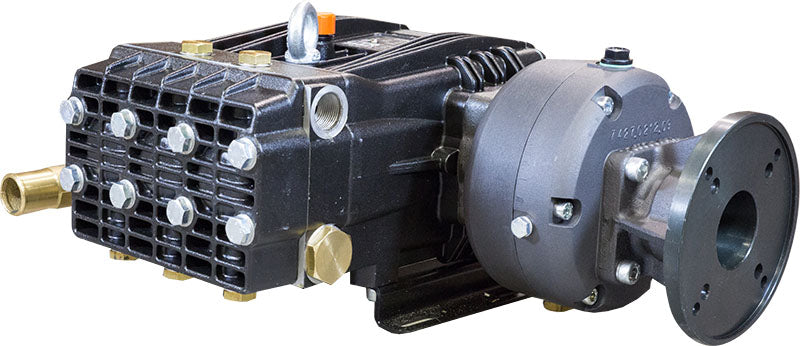

Udor GAMMA-62/GR-18 Plunger Pump

Udor GAMMA-62/GR-18 Plunger Pump

Brand:
Udor
Weight:
70.0 lb
Item #
GAMMA62GR18
1 1

Udor GAMMA-62/GR-18 Plunger Pump

Udor GAMMA-62/GR-18 Plunger Pump

Brand:
Udor
Weight:
70.0 lb
Item #
GAMMA62GR18

$1,835.95
$1,835.95 List Price: $3,671.90

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 5,508 points with this purchase.

See Details

View full details

Product Overview

Udor GAMMA-62/GR-18 Plunger Pump

16 GPM, 1000 PSI, 16-20 HP Gas Engine Power Requirement.

GAMMA-62 Pump with Gear Reduction for 16-20 HP Gasoline Engines with 1" Shafts.

Resources

Download Product Manual

Features

  • Large Capacity Vented Oil Bath Crank Case
  • Solid Ceramic Plungers
  • Heat Treated Crank Shaft
  • Stainless Steel Check Valves
  • 1-1/4" Hose Barb Inlet (3-Cylinder), 2" Hose Barb Inlet (6-Cylinder)
  • (2) 3/4" Outlets (3-Cylinder), (4) 3/4" Outlets (6-Cylinder)
  • Industrial Quality Tapered Roller Bearings
  • High Strength Aluminum Alloy Connecting Rods
  • Max. Fluid Temp. 160° F
  • Replaceable PTFE Coated Body Guides

Parts breakdown

Diagram

Diagram parts

Parts list

  • Plunger Guide
    • Ref No: 127
    • Part No: 001417
    • Qty Req: 3
    Our price: $81.09 List price: $97.70
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 2
    Our price: $27.73 List price: $33.40
  • Seal
    • Ref No: 169
    • Part No: 000726
    • Qty Req: 3
    Our price: $21.91 List price: $26.40
  • High Pressure V-Packing
    • Ref No: 198
    • Part No: 002109
    • Qty Req: 6
    Our price: $37.93 List price: $45.70
  • Plunger Bolt
    • Ref No: 242
    • Part No: 010213
    • Qty Req: 3
    Our price: $31.45 List price: $37.90
  • Plunger Guide Bushing
    • Ref No: 333
    • Part No: 011506
    • Qty Req: 3
    Our price: $57.36 List price: $69.10
  • Suction Elbow - Brass
    • Ref No: 360
    • Part No: 020291
    • Qty Req: 1
    Our price: $64.32 List price: $77.50
  • Crank Cover
    • Ref No: 549
    • Part No: 020856
    • Qty Req: 1
    Our price: $82.41 List price: $99.30
  • Pump Body
    • Ref No: 639
    • Part No: 020950
    • Qty Req: 1
    Our price: $1,291.47 List price: $1,556.00
  • Crank Bearing
    • Ref No: 700
    • Part No: 021404
    • Qty Req: 2
    Our price: $200.02 List price: $241.00
  • Slinger Ring
    • Ref No: 811
    • Part No: 030149
    • Qty Req: 3
    Our price: $7.80 List price: $9.40
  • Spreader Ring
    • Ref No: 879
    • Part No: 030716
    • Qty Req: 6
    Our price: $6.55 List price: $7.90
  • Bearing Cap
    • Ref No: 933
    • Part No: 0501B6
    • Qty Req: 2
    Our price: $127.81 List price: $154.00
  • Gasket for Udor Gear Reduction
    • Ref No: 977
    • Part No: 060205
    • Qty Req: 2
    Our price: $4.40 List price: $5.30
  • Gasket
    • Ref No: 991
    • Part No: 060251
    • Qty Req: 1
    Our price: $11.21 List price: $13.50
  • Suction Nut - Brass
    • Ref No: 1036
    • Part No: 060413
    • Qty Req: 1
    Our price: $29.14 List price: $35.10
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $2.08 List price: $2.50
  • O-Ring
    • Ref No: 1366
    • Part No: 110102
    • Qty Req: 1
    Our price: $3.16 List price: $3.80
  • Plunger Bolt O-Ring
    • Ref No: 1370
    • Part No: 110106
    • Qty Req: 3
    Our price: $2.99 List price: $3.60
  • O-Ring
    • Ref No: 1380
    • Part No: 110125
    • Qty Req: 2
    Our price: $3.07 List price: $3.70
  • O-Ring
    • Ref No: 1393
    • Part No: 110146
    • Qty Req: 2
    Our price: $3.07 List price: $3.70
  • O-Ring
    • Ref No: 1395
    • Part No: 110148
    • Qty Req: 2
    Our price: $7.97 List price: $9.60
  • O-Ring
    • Ref No: 1418
    • Part No: 110155
    • Qty Req: 5
    Our price: $3.32 List price: $4.00
  • Mounting Rail
    • Ref No: 1469
    • Part No: 120234
    • Qty Req: 2
    Our price: $24.65 List price: $29.70
  • Connecting Rod
    • Ref No: 1644
    • Part No: 600028
    • Qty Req: 3
    Our price: $119.78 List price: $144.30
  • Connecting Rod Assembly w/Guide
    • Ref No: 1645
    • Part No: 600029
    • Qty Req: 3
    Our price: $251.99 List price: $303.60
  • Valve Assembly
    • Ref No: 1711
    • Part No: 600613
    • Qty Req: 6
    Our price: $48.47 List price: $58.40
  • Seal Kit - Complete w/Brass
    • Ref No: 1831
    • Part No: 603023
    • Qty Req: 3
    Our price: $172.23 List price: $207.50
  • Washer
    • Ref No: 1844
    • Part No: 140309
    • Qty Req: 2
    Our price: $1.67 List price: $2.00
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 2
    Our price: $1.67 List price: $2.00
  • Washer
    • Ref No: 1885
    • Part No: 141102
    • Qty Req: 6
    Our price: $2.65 List price: $3.20
  • Wrist Pin
    • Ref No: 1970
    • Part No: 150212
    • Qty Req: 3
    Our price: $19.25 List price: $23.20
  • Inlet Adapter
    • Ref No: 2011
    • Part No: 150402
    • Qty Req: 1
    Our price: $62.34 List price: $75.10
  • Snap Ring
    • Ref No: 2049
    • Part No: 150611
    • Qty Req: 6
    Our price: $2.25 List price: $2.70
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Oil Cap - Vented
    • Ref No: 2263
    • Part No: 1603B2
    • Qty Req: 1
    Our price: $12.78 List price: $15.40
  • Plug - Inlet
    • Ref No: 2266
    • Part No: 160330
    • Qty Req: 1
    Our price: $35.69 List price: $43.00
  • Oil Sight Glass
    • Ref No: 2269
    • Part No: 160333
    • Qty Req: 1
    Our price: $15.69 List price: $18.90
  • Plug - Discharge
    • Ref No: 2272
    • Part No: 160340
    • Qty Req: 1
    Our price: $7.50 List price: $8.83
  • Plug
    • Ref No: 2280
    • Part No: 160351
    • Qty Req: 5
    Our price: $8.47 List price: $10.20
  • Head - Front
    • Ref No: 2330
    • Part No: 160485
    • Qty Req: 1
    Our price: $179.21 List price: $215.90
  • Head - Inner
    • Ref No: 2331
    • Part No: 160486
    • Qty Req: 1
    Our price: $282.62 List price: $340.50
  • Bolt
    • Ref No: 2465
    • Part No: 180407
    • Qty Req: 1
    Our price: $2.74 List price: $3.30
  • Head Bolt (Hex Head)
    • Ref No: 2494
    • Part No: 180412
    • Qty Req: 8
    Our price: $5.74 List price: $6.90
  • Bolt
    • Ref No: 2582
    • Part No: 180504
    • Qty Req: 8
    Our price: $2.99 List price: $3.60
  • Bolt
    • Ref No: 2583
    • Part No: 180505
    • Qty Req: 8
    Our price: $2.99 List price: $3.60
  • Bolt
    • Ref No: 2587
    • Part No: 180520
    • Qty Req: 12
    Our price: $2.74 List price: $3.30
  • Bolt
    • Ref No: 2596
    • Part No: 180523
    • Qty Req: 6
    Our price: $3.07 List price: $3.70
  • O-Ring
    • Ref No: 4796
    • Part No: 110197
    • Qty Req: 3
    Our price: $7.80 List price: $9.40
  • O-Ring
    • Ref No: 4797
    • Part No: 110198
    • Qty Req: 3
    Our price: $6.13 List price: $7.40
  • PTO Safety Shield (Optional)
    • Ref No: 7650
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: 7653
    • Part No: 121915
    • Qty Req: 1
    Our price: $20.41 List price: $24.60
