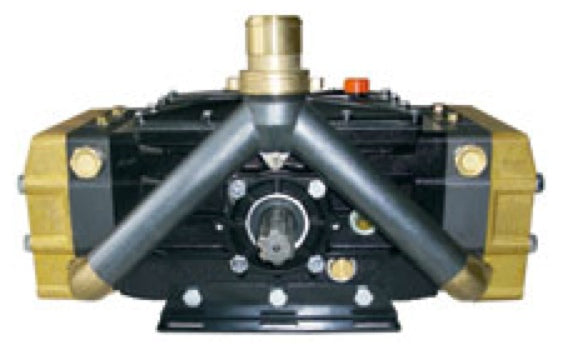

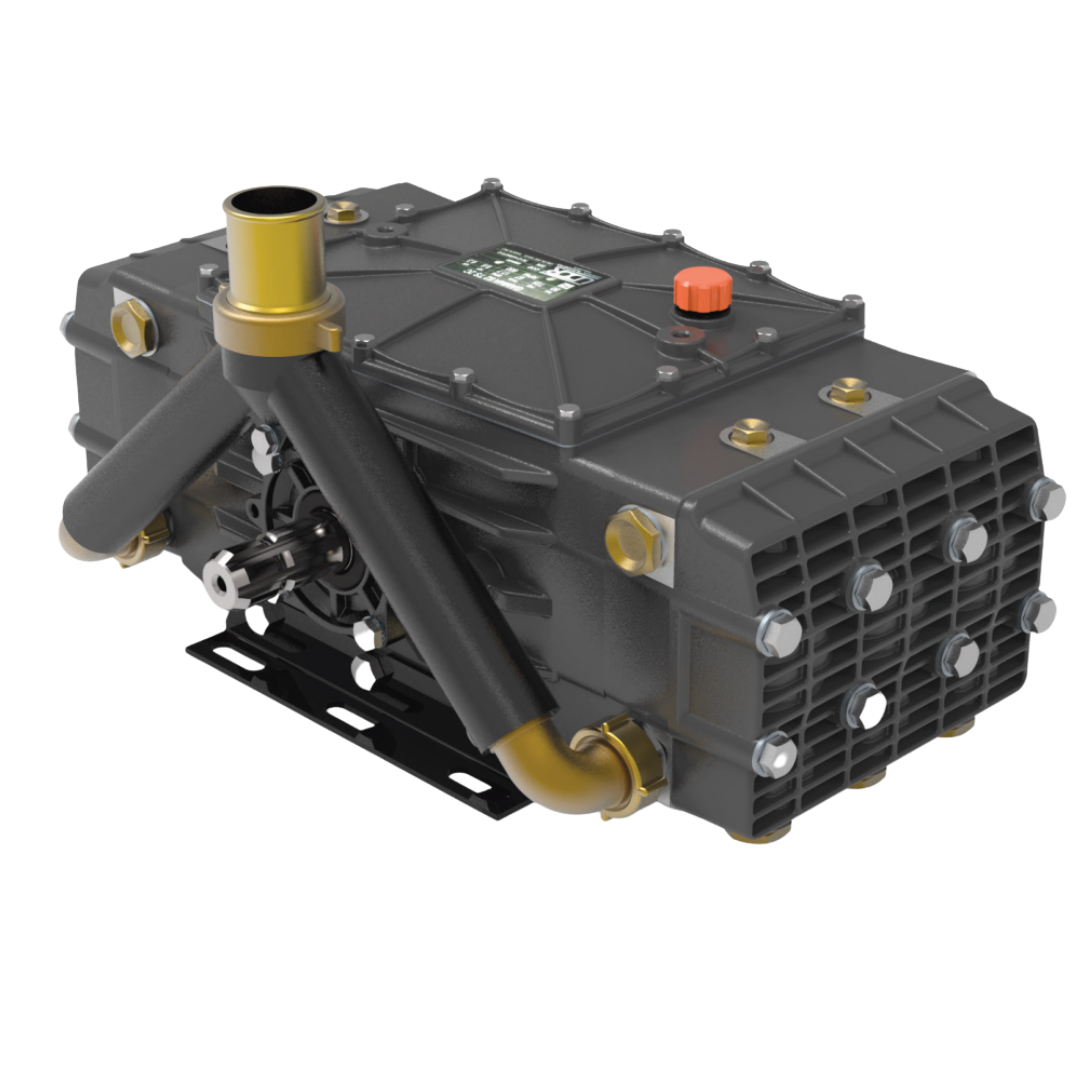

Udor GAMMA 242CC Plunger Pump

Udor GAMMA 242CC Plunger Pump

Item Code:
GAMMA242CC
Weight:
120.0 lb
Manufacturer:
Udor
Our price:
$3,051.38
List price:
$6,102.75
Overview:

The GAMMA 242CC Plunger Pump is one of Udor's finest pieces of equipment. The six cylinder plunger pump is constructed from anodized aluminum, giving it corrosion resistance and higher pressure capabilities. Solid ceramic plungers increase this pump's durability and strength even further. No matter what agricultural or industrial fluids you need to pump, you can count on Udor to help you get the job done.

Manufacturer Description:

Six Cylinder Plunger Pump of Anodized Aluminum Construction with Solid Ceramic Plungers and Dual 1-3/8", 6-Spline Male PTO Shaft. Max. RPM - 600. On all Thru-Shaft applications, shaft protector #1219.15 is recommended. Please Order Separately.

Features:

  • Max flow: 62 gpm
  • Max pressure: 700 psi
  • Max speed: 600 rpm
  • Power requirement: 35 hp electric
  • Shaft: Dual 1-3/8" male 6-spline PTO
  • Large Capacity Vented Oil Bath Crank Case
  • Plunger: Solid ceramic
  • Port size: 2" hose barb inlet
  • Industrial quality tapered roller bearings
  • High strength aluminum alloy connecting rods
  • Replaceable Teflon® coated body guides
  • Recommended control unit: 6005.14
  • Max fluid temperature: 160°F
  • Weight: 120 lbs

Parts breakdown

Parts list

  • Ref No: 5
  • Part No: 000107
  • Qty Req: 6
Our price: $42.15 List price: $50.78
  • Ref No: 123
  • Part No: 0002A1
  • Qty Req: 1
Our price: $876.36 List price: $1,055.85
  • Ref No: 145
  • Part No: 001428
  • Qty Req: 6
Our price: $182.18 List price: $219.49
  • Ref No: 156
  • Part No: 000702
  • Qty Req: 2
Our price: $17.44 List price: $21.01
  • Ref No: 167
  • Part No: 000724a
  • Qty Req: 6
Our price: $14.36 List price: $17.30
  • Ref No: 196
  • Part No: 000905
  • Qty Req: 6
Our price: $7.27 List price: $8.76
  • Ref No: 200
  • Part No: 002101
  • Qty Req: 12
Our price: $32.40 List price: $39.04
  • Ref No: 262
  • Part No: 010321
  • Qty Req: 6
Our price: $138.07 List price: $166.35
  • Ref No: 328
  • Part No: 011310
  • Qty Req: 2
Our price: $30.26 List price: $36.46
  • Ref No: 335
  • Part No: 011510
  • Qty Req: 6
Our price: $46.51 List price: $56.03
  • Ref No: 368
  • Part No: 020270
  • Qty Req: 1
Our price: $61.89 List price: $74.57
  • Ref No: 566
  • Part No: 020832
  • Qty Req: 1
Our price: $144.65 List price: $174.28
  • Ref No: 617
  • Part No: 020924
  • Qty Req: 1
Our price: $1,839.23 List price: $2,215.94
  • Ref No: 768
  • Part No: 022902
  • Qty Req: 2
Our price: $75.23 List price: $90.64
  • Ref No: 770
  • Part No: 024801
  • Qty Req: 2
Our price: $215.43 List price: $259.56
  • Ref No: 810
  • Part No: 030145
  • Qty Req: 6
Our price: $5.90 List price: $7.11
  • Ref No: 880
  • Part No: 030701
  • Qty Req: 12
Our price: $4.96 List price: $5.97
  • Ref No: 915
  • Part No: 050160
  • Qty Req: 2
Our price: $88.23 List price: $106.30
  • Ref No: 977
  • Part No: 060205
  • Qty Req: 2
Our price: $2.82 List price: $3.40
  • Ref No: 987
  • Part No: 060235
  • Qty Req: 1
Our price: $22.91 List price: $27.60
  • Ref No: 1036
  • Part No: 060413
  • Qty Req: 2
Our price: $20.00 List price: $24.10
  • Ref No: 1043
  • Part No: 060431
  • Qty Req: 1
Our price: $53.69 List price: $64.68
  • Ref No: 1075
  • Part No: 060543
  • Qty Req: 1
Our price: $2.14 List price: $2.58
  • Ref No: 1078
  • Part No: 060548
  • Qty Req: 6
Our price: $1.71 List price: $2.06
  • Ref No: 1234
  • Part No: 090133
  • Qty Req: 6
Our price: $36.42 List price: $43.88
  • Ref No: 1365
  • Part No: 110101
  • Qty Req: 1
Our price: $3.16 List price: $3.81
  • Ref No: 1366
  • Part No: 110102
  • Qty Req: 2
Our price: $2.05 List price: $2.47
  • Ref No: 1389
  • Part No: 110141
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No: 1392
  • Part No: 110145
  • Qty Req: 12
Our price: $3.68 List price: $4.43
  • Ref No: 1393
  • Part No: 110146
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No: 1394
  • Part No: 110147
  • Qty Req: 12
Our price: $1.62 List price: $1.96
  • Ref No: 1395
  • Part No: 110148
  • Qty Req: 2
Our price: $5.30 List price: $6.39
  • Ref No: 1396
  • Part No: 110154
  • Qty Req: 6
Our price: $1.88 List price: $2.27
  • Ref No: 1577
  • Part No: 120517
  • Qty Req: 6
Our price: $179.96 List price: $216.82
  • Ref No: 1707
  • Part No: 600606
  • Qty Req: 12
Our price: $47.87 List price: $57.68
  • Ref No: 1827
  • Part No: 603000
  • Qty Req: 6
Our price: $225.95 List price: $272.23
  • Ref No: 1844
  • Part No: 140309
  • Qty Req: 2
Our price: $0.94 List price: $1.13
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 2
Our price: $0.94 List price: $1.13
  • Ref No: 1854
  • Part No: 140308
  • Qty Req: 16
Our price: $1.71 List price: $2.06
  • Ref No: 1886
  • Part No: 141103
  • Qty Req: 8
Our price: $1.37 List price: $1.65
  • Ref No: 1968
  • Part No: 150206
  • Qty Req: 6
Our price: $14.02 List price: $16.89
  • Ref No: 2011
  • Part No: 150402
  • Qty Req: 2
Our price: $42.92 List price: $51.71
  • Ref No: 2051
  • Part No: 150615
  • Qty Req: 12
Our price: $1.37 List price: $1.65
  • Ref No: 2223
  • Part No: 160219
  • Qty Req: 1
Our price: $161.66 List price: $194.77
  • Ref No: 2241
  • Part No: 1603B2
  • Qty Req: 1
Our price: $85.66 List price: $103.20
  • Ref No: 2245
  • Part No: 160316
  • Qty Req: 4
Our price: $3.76 List price: $4.53
  • Ref No: 2247
  • Part No: 160374
  • Qty Req: 2
Our price: $10.69 List price: $12.88
  • Ref No: 2251
  • Part No: 160302
  • Qty Req: 1
Our price: $3.82 List price: $4.60
  • Ref No: 2254
  • Part No: 160306
  • Qty Req: 1
Our price: $11.80 List price: $14.21
  • Ref No: 2266
  • Part No: 160330
  • Qty Req: 2
Our price: $24.54 List price: $29.56
  • Ref No: 2291
  • Part No: 1603A3
  • Qty Req: 6
Our price: $6.16 List price: $7.42
  • Ref No: 2294
  • Part No: 160487
  • Qty Req: 2
Our price: $363.08 List price: $437.44
  • Ref No: 2296
  • Part No: 160489
  • Qty Req: 1
Our price: $472.42 List price: $569.18
  • Ref No: 2297
  • Part No: 160490
  • Qty Req: 1
Our price: $458.48 List price: $552.39
  • Ref No: 2355
  • Part No: 160514
  • Qty Req: 1
Our price: $43.00 List price: $51.81
  • Ref No: 2467
  • Part No: 180410
  • Qty Req: 1
Our price: $1.71 List price: $2.06
  • Ref No: 2493
  • Part No: 180446
  • Qty Req: 16
Our price: $6.16 List price: $7.42
  • Ref No: 2582
  • Part No: 180504
  • Qty Req: 4
Our price: $1.88 List price: $2.27
  • Ref No: 2583
  • Part No: 180505
  • Qty Req: 8
Our price: $1.88 List price: $2.27
  • Ref No: 2595
  • Part No: 180519
  • Qty Req: 14
Our price: $1.62 List price: $1.96
