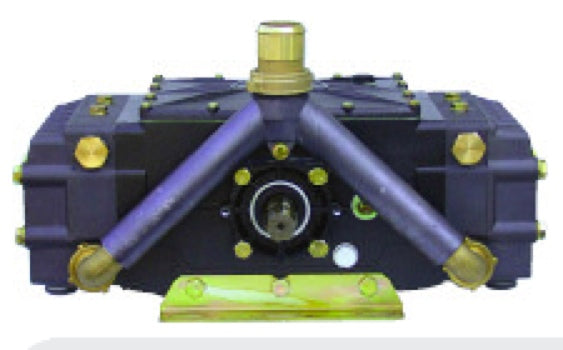

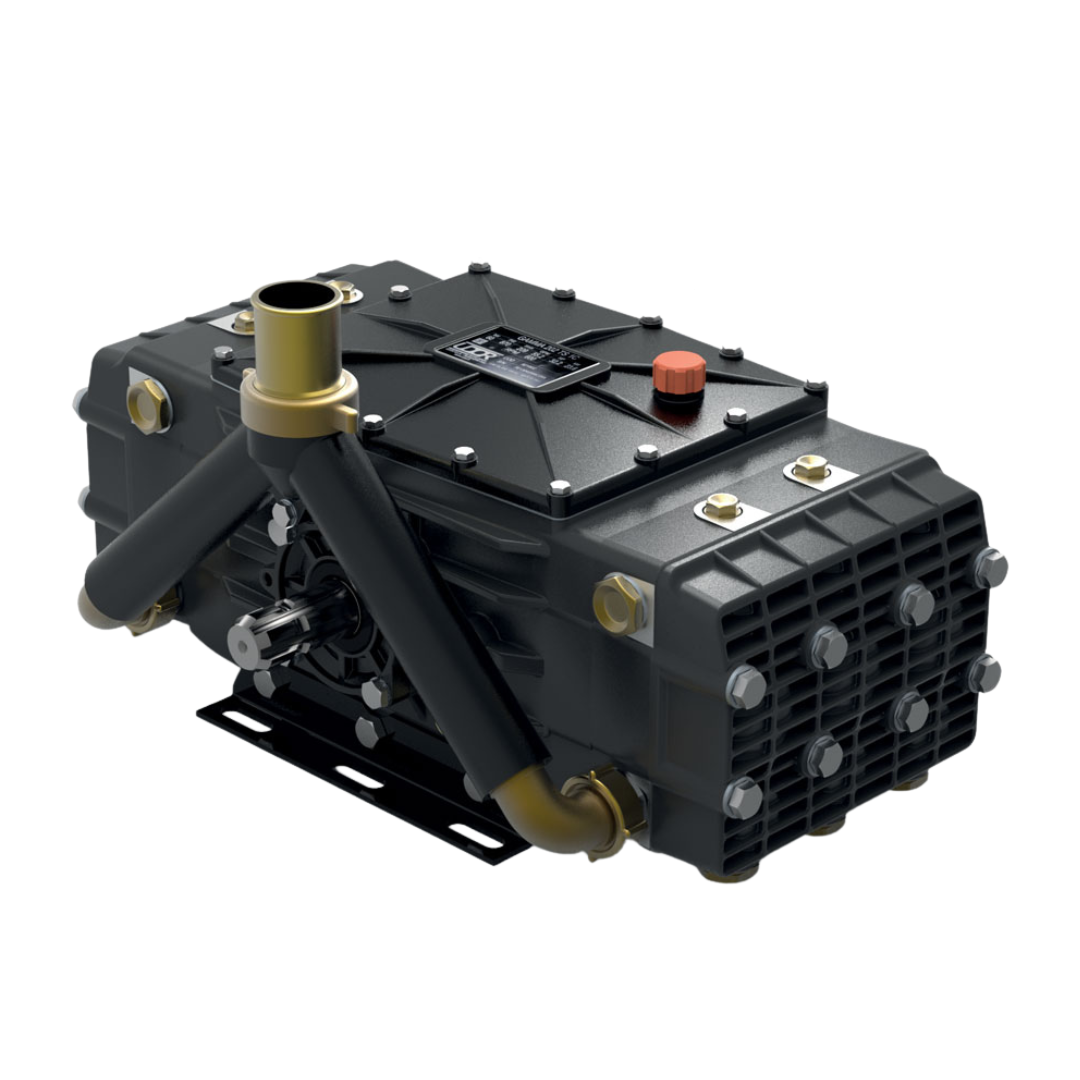

Udor GAMMA 202CC Plunger Pump

Udor GAMMA 202CC Plunger Pump

Item Code:
GAMMA202CC
Weight:
120.0 lb
Manufacturer:
Udor
Our price:
$2,963.83
List price:
$5,927.65
Overview:

The Udor Gamma 202/CC Plunger Pumps is constructed with anodized aluminum and features solid ceramic plungers with dual, six-spline male PTO shafts. Worn, cracked, and broken seals can create serious issues and should be replaced promptly. This unit is ideal for industrial and agricultural applications, including pressure washing, dust suppression, concrete rinsing, misting and cooling, low height tree spraying, and hydrostatic testing.

Manufacturer Description:

Six Cylinder Plunger Pump of Anodized Aluminum Construction with Solid Ceramic Plungers and Dual 1-3/8", 6-Spline Male PTO Shaft. Max. RPM - 600. On all Thru-Shaft applications, shaft protector #1219.15 is recommended. Please Order Separately.

Features:

  • Max flow: 52 gpm
  • Max pressure: 850 psi
  • Max speed: 600 rpm
  • Power requirement: 30 hp electric
  • Shaft: Dual 1-3/8" male 6-spline PTO
  • Large Capacity Vented Oil Bath Crank Case
  • Plunger: Solid ceramic
  • Port size: 2" hose barb inlet
  • Industrial quality tapered roller bearings
  • High strength aluminum alloy connecting rods
  • Replaceable Teflon® coated body guides
  • Recommended control unit: 6005.14
  • Max fluid temperature: 160°F
  • Weight: 120 lbs

Parts breakdown

Parts list

  • Ref No: 5
  • Part No: 000107
  • Qty Req: 6
Our price: $42.15 List price: $50.78
  • Ref No: 52
  • Part No: 000240
  • Qty Req: 1
Our price: $701.45 List price: $845.12
  • Ref No: 145
  • Part No: 001428
  • Qty Req: 6
Our price: $182.18 List price: $219.49
  • Ref No: 156
  • Part No: 000702
  • Qty Req: 2
Our price: $17.44 List price: $21.01
  • Ref No: 167
  • Part No: 000724a
  • Qty Req: 6
Our price: $14.36 List price: $17.30
  • Ref No: 196
  • Part No: 000905
  • Qty Req: 6
Our price: $7.27 List price: $8.76
  • Ref No: 200
  • Part No: 002101
  • Qty Req: 12
Our price: $32.40 List price: $39.04
  • Ref No: 262
  • Part No: 010321
  • Qty Req: 6
Our price: $138.07 List price: $166.35
  • Ref No: 328
  • Part No: 011310
  • Qty Req: 2
Our price: $30.26 List price: $36.46
  • Ref No: 335
  • Part No: 011510
  • Qty Req: 6
Our price: $46.51 List price: $56.03
  • Ref No: 368
  • Part No: 020270
  • Qty Req: 1
Our price: $61.89 List price: $74.57
  • Ref No: 566
  • Part No: 020832
  • Qty Req: 1
Our price: $144.65 List price: $174.28
  • Ref No: 617
  • Part No: 020924
  • Qty Req: 1
Our price: $1,839.23 List price: $2,215.94
  • Ref No: 768
  • Part No: 022902
  • Qty Req: 2
Our price: $75.23 List price: $90.64
  • Ref No: 770
  • Part No: 024801
  • Qty Req: 2
Our price: $215.43 List price: $259.56
  • Ref No: 810
  • Part No: 030145
  • Qty Req: 6
Our price: $5.90 List price: $7.11
  • Ref No: 880
  • Part No: 030701
  • Qty Req: 12
Our price: $4.96 List price: $5.97
  • Ref No: 915
  • Part No: 050160
  • Qty Req: 2
Our price: $88.23 List price: $106.30
  • Ref No: 977
  • Part No: 060205
  • Qty Req: 2
Our price: $2.82 List price: $3.40
  • Ref No: 987
  • Part No: 060235
  • Qty Req: 1
Our price: $22.91 List price: $27.60
  • Ref No: 1036
  • Part No: 060413
  • Qty Req: 2
Our price: $20.00 List price: $24.10
  • Ref No: 1043
  • Part No: 060431
  • Qty Req: 1
Our price: $53.69 List price: $64.68
  • Ref No: 1075
  • Part No: 060543
  • Qty Req: 1
Our price: $2.14 List price: $2.58
  • Ref No: 1078
  • Part No: 060548
  • Qty Req: 6
Our price: $1.71 List price: $2.06
  • Ref No: 1234
  • Part No: 090133
  • Qty Req: 6
Our price: $36.42 List price: $43.88
  • Ref No: 1365
  • Part No: 110101
  • Qty Req: 1
Our price: $3.16 List price: $3.81
  • Ref No: 1366
  • Part No: 110102
  • Qty Req: 2
Our price: $2.05 List price: $2.47
  • Ref No: 1389
  • Part No: 110141
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No: 1392
  • Part No: 110145
  • Qty Req: 12
Our price: $3.68 List price: $4.43
  • Ref No: 1393
  • Part No: 110146
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No: 1394
  • Part No: 110147
  • Qty Req: 12
Our price: $1.62 List price: $1.96
  • Ref No: 1395
  • Part No: 110148
  • Qty Req: 2
Our price: $5.30 List price: $6.39
  • Ref No: 1396
  • Part No: 110154
  • Qty Req: 6
Our price: $1.88 List price: $2.27
  • Ref No: 1577
  • Part No: 120517
  • Qty Req: 6
Our price: $179.96 List price: $216.82
  • Ref No: 1707
  • Part No: 600606
  • Qty Req: 12
Our price: $47.87 List price: $57.68
  • Ref No: 1827
  • Part No: 603000
  • Qty Req: 6
Our price: $225.95 List price: $272.23
  • Ref No: 1844
  • Part No: 140309
  • Qty Req: 2
Our price: $0.94 List price: $1.13
  • Ref No: 1845
  • Part No: 140310
  • Qty Req: 2
Our price: $0.94 List price: $1.13
  • Ref No: 1854
  • Part No: 140308
  • Qty Req: 16
Our price: $1.71 List price: $2.06
  • Ref No: 1886
  • Part No: 141103
  • Qty Req: 8
Our price: $1.37 List price: $1.65
  • Ref No: 1968
  • Part No: 150206
  • Qty Req: 6
Our price: $14.02 List price: $16.89
  • Ref No: 2011
  • Part No: 150402
  • Qty Req: 2
Our price: $42.92 List price: $51.71
  • Ref No: 2051
  • Part No: 150615
  • Qty Req: 12
Our price: $1.37 List price: $1.65
  • Ref No: 2223
  • Part No: 160219
  • Qty Req: 1
Our price: $161.66 List price: $194.77
  • Ref No: 2241
  • Part No: 1603B2
  • Qty Req: 1
Our price: $85.66 List price: $103.20
  • Ref No: 2245
  • Part No: 160316
  • Qty Req: 4
Our price: $3.76 List price: $4.53
  • Ref No: 2247
  • Part No: 160374
  • Qty Req: 2
Our price: $10.69 List price: $12.88
  • Ref No: 2251
  • Part No: 160302
  • Qty Req: 1
Our price: $3.82 List price: $4.60
  • Ref No: 2254
  • Part No: 160306
  • Qty Req: 1
Our price: $11.80 List price: $14.21
  • Ref No: 2266
  • Part No: 160330
  • Qty Req: 2
Our price: $24.54 List price: $29.56
  • Ref No: 2291
  • Part No: 1603A3
  • Qty Req: 6
Our price: $6.16 List price: $7.42
  • Ref No: 2294
  • Part No: 160487
  • Qty Req: 2
Our price: $363.08 List price: $437.44
  • Ref No: 2296
  • Part No: 160489
  • Qty Req: 1
Our price: $472.42 List price: $569.18
  • Ref No: 2297
  • Part No: 160490
  • Qty Req: 1
Our price: $458.48 List price: $552.39
  • Ref No: 2355
  • Part No: 160514
  • Qty Req: 1
Our price: $43.00 List price: $51.81
  • Ref No: 2467
  • Part No: 180410
  • Qty Req: 1
Our price: $1.71 List price: $2.06
  • Ref No: 2493
  • Part No: 180446
  • Qty Req: 16
Our price: $6.16 List price: $7.42
  • Ref No: 2582
  • Part No: 180504
  • Qty Req: 4
Our price: $1.88 List price: $2.27
  • Ref No: 2583
  • Part No: 180505
  • Qty Req: 8
Our price: $1.88 List price: $2.27
  • Ref No: 2595
  • Part No: 180519
  • Qty Req: 14
Our price: $1.62 List price: $1.96
