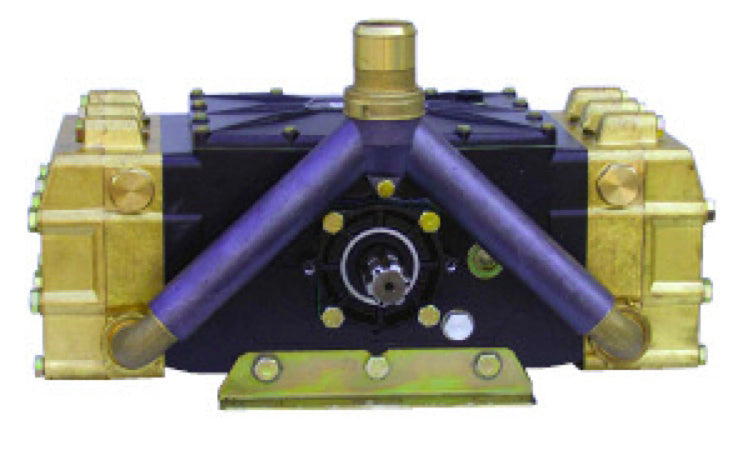

Udor GAMMA-200B/CC Plunger Pump

Udor GAMMA-200B/CC Plunger Pump

Item Code:
GAMMA200BCC
Weight:
190.0 lb
Manufacturer:
Udor
Our price:
$4,696.80
List price:
$9,393.60
Overview:

The GAMMA Plunger Pump from Udor is designed around the concept of resilience. Its industrial quality tapered roller bearings and stainless steel check valves give it the durability to help you get the job done for years to come. The Teflon® Coated Body Guides are fully replaceable, making it possible to renew your pump once it begins to wear. With a max fluid temperature of 160° F, Udor's Plunger Pump gets the job done.

Manufacturer Description:

Six Cylinder Plunger Pump of Anodized Aluminum, Brass Manifolds, Construction with Ceramic Plungers and Dual 1-3/8", 6-Spline Male Shaft. Max RPM - 600. On all Thru-Shaft Applications, Shaft Protector #1219.15 is Recommended. Please Order Separately.

Features:

  • Max flow: 52 gpm
  • Max pressure: 1200 psi
  • Max speed: 600 rpm
  • Power requirement: 45 hp electric
  • Shaft: Dual 1-3/8" male 6-spline PTO
  • Brass manifolds
  • Large Capacity Vented Oil Bath Crank Case
  • Plunger: Solid ceramic
  • Port size: 2" hose barb inlet
  • Industrial quality tapered roller bearings
  • High strength aluminum alloy connecting rods
  • Replaceable Teflon® coated body guides
  • Recommended control unit: 6005.14
  • Max fluid temperature: 160°F
  • Weight: 190 lbs

Parts breakdown

Parts list

  • Ref No:
  • Part No: 000107
  • Qty Req: 1
Our price: $42.15 List price: $50.78
  • Ref No:
  • Part No: 0002A2
  • Qty Req: 1
Our price: $701.45 List price: $845.12
  • Ref No:
  • Part No: 000702
  • Qty Req: 2
Our price: $17.44 List price: $21.01
  • Ref No:
  • Part No: 000724a
  • Qty Req: 6
Our price: $14.36 List price: $17.30
  • Ref No:
  • Part No: 000905
  • Qty Req: 1
Our price: $7.27 List price: $8.76
  • Ref No:
  • Part No: 001415
  • Qty Req: 6
Our price: $182.18 List price: $219.49
  • Ref No:
  • Part No: 002101
  • Qty Req: 6
Our price: $32.40 List price: $39.04
  • Ref No:
  • Part No: 002101
  • Qty Req: 6
Our price: $32.40 List price: $39.04
  • Ref No:
  • Part No: 011310
  • Qty Req: 1
Our price: $30.26 List price: $36.46
  • Ref No:
  • Part No: 011510
  • Qty Req: 6
Our price: $46.51 List price: $56.03
  • Ref No:
  • Part No: 020270
  • Qty Req: 1
Our price: $61.89 List price: $74.57
  • Ref No:
  • Part No: 020832
  • Qty Req: 1
Our price: $144.65 List price: $174.28
  • Ref No:
  • Part No: 020924
  • Qty Req: 1
Our price: $1,839.23 List price: $2,215.94
  • Ref No:
  • Part No: 022902
  • Qty Req: 1
Our price: $75.23 List price: $90.64
  • Ref No:
  • Part No: 024801
  • Qty Req: 2
Our price: $215.43 List price: $259.56
  • Ref No:
  • Part No: 030145
  • Qty Req: 6
Our price: $5.90 List price: $7.11
  • Ref No:
  • Part No: 030245
  • Qty Req: 2
Our price: $2.82 List price: $3.40
  • Ref No:
  • Part No: 030701
  • Qty Req: 6
Our price: $4.96 List price: $5.97
  • Ref No:
  • Part No: 030701
  • Qty Req: 6
Our price: $4.96 List price: $5.97
  • Ref No:
  • Part No: 030904
  • Qty Req: 6
Our price: $17.01 List price: $20.50
  • Ref No:
  • Part No: 050160
  • Qty Req: 2
Our price: $88.23 List price: $106.30
  • Ref No:
  • Part No: 060205
  • Qty Req: 2
Our price: $2.82 List price: $3.40
  • Ref No:
  • Part No: 060235
  • Qty Req: 1
Our price: $22.91 List price: $27.60
  • Ref No:
  • Part No: 060413
  • Qty Req: 1
Our price: $20.00 List price: $24.10
  • Ref No:
  • Part No: 060431
  • Qty Req: 1
Our price: $53.69 List price: $64.68
  • Ref No:
  • Part No: 060540
  • Qty Req: 4
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 060542
  • Qty Req: 4
Our price: $1.66 List price: $2.00
  • Ref No:
  • Part No: 060542
  • Qty Req: 1
Our price: $1.66 List price: $2.00
  • Ref No:
  • Part No: 060543
  • Qty Req: 6
Our price: $2.14 List price: $2.58
  • Ref No:
  • Part No: 090133
  • Qty Req: 1
Our price: $36.42 List price: $43.88
  • Ref No:
  • Part No: 110102
  • Qty Req: 1
Our price: $2.05 List price: $2.47
  • Ref No:
  • Part No: 110141
  • Qty Req: 2
Our price: $1.97 List price: $2.37
  • Ref No:
  • Part No: 110145
  • Qty Req: 6
Our price: $3.68 List price: $4.43
  • Ref No:
  • Part No: 110146
  • Qty Req: 1
Our price: $1.97 List price: $2.37
  • Ref No:
  • Part No: 110146
  • Qty Req: 4
Our price: $1.97 List price: $2.37
  • Ref No:
  • Part No: 110147
  • Qty Req: 6
Our price: $1.62 List price: $1.96
  • Ref No:
  • Part No: 110148
  • Qty Req: 2
Our price: $5.30 List price: $6.39
  • Ref No:
  • Part No: 110149
  • Qty Req: 6
Our price: $1.97 List price: $2.37
  • Ref No:
  • Part No: 110154
  • Qty Req: 6
Our price: $1.88 List price: $2.27
  • Ref No:
  • Part No: 110168
  • Qty Req: 6
Our price: $4.45 List price: $5.36
  • Ref No:
  • Part No: 1101B1
  • Qty Req: 2
Our price: $2.14 List price: $2.58
  • Ref No:
  • Part No: 120257
  • Qty Req: 2
Our price: $47.53 List price: $57.27
  • Ref No:
  • Part No: 120517
  • Qty Req: 6
Our price: $179.96 List price: $216.82
  • Ref No:
  • Part No: 140308
  • Qty Req: 16
Our price: $1.71 List price: $2.06
  • Ref No:
  • Part No: 140309
  • Qty Req: 3
Our price: $0.94 List price: $1.13
  • Ref No:
  • Part No: 140310
  • Qty Req: 1
Our price: $0.94 List price: $1.13
  • Ref No:
  • Part No: 140310
  • Qty Req: 3
Our price: $0.94 List price: $1.13
  • Ref No:
  • Part No: 141103
  • Qty Req: 12
Our price: $1.37 List price: $1.65
  • Ref No:
  • Part No: 141103
  • Qty Req: 8
Our price: $1.37 List price: $1.65
  • Ref No:
  • Part No: 150206
  • Qty Req: 6
Our price: $14.02 List price: $16.89
  • Ref No:
  • Part No: 150406
  • Qty Req: 1
Our price: $65.31 List price: $78.69
  • Ref No:
  • Part No: 150615
  • Qty Req: 6
Our price: $1.37 List price: $1.65
  • Ref No:
  • Part No: 151923
  • Qty Req: 6
Our price: $225.69 List price: $271.92
  • Ref No:
  • Part No: 160219
  • Qty Req: 1
Our price: $161.66 List price: $194.77
  • Ref No:
  • Part No: 160302
  • Qty Req: 6
Our price: $3.82 List price: $4.60
  • Ref No:
  • Part No: 160306
  • Qty Req: 1
Our price: $11.80 List price: $14.21
  • Ref No:
  • Part No: 160330
  • Qty Req: 4
Our price: $24.54 List price: $29.56
  • Ref No:
  • Part No: 160362
  • Qty Req: 4
Our price: $9.23 List price: $11.12
  • Ref No:
  • Part No: 160374
  • Qty Req: 4
Our price: $10.69 List price: $12.88
  • Ref No:
  • Part No: 160374
  • Qty Req: 1
Our price: $10.69 List price: $12.88
  • Ref No:
  • Part No: 1603B2
  • Qty Req: 1
Our price: $85.66 List price: $103.20
  • Ref No:
  • Part No: 160410
  • Qty Req: 1
Our price: $206.49
  • Ref No:
  • Part No: 160433
  • Qty Req: 1
Our price: $1,480.26 List price: $1,783.45
  • Ref No:
  • Part No: 160437
  • Qty Req: 1
Our price: $1,480.26 List price: $1,783.45
