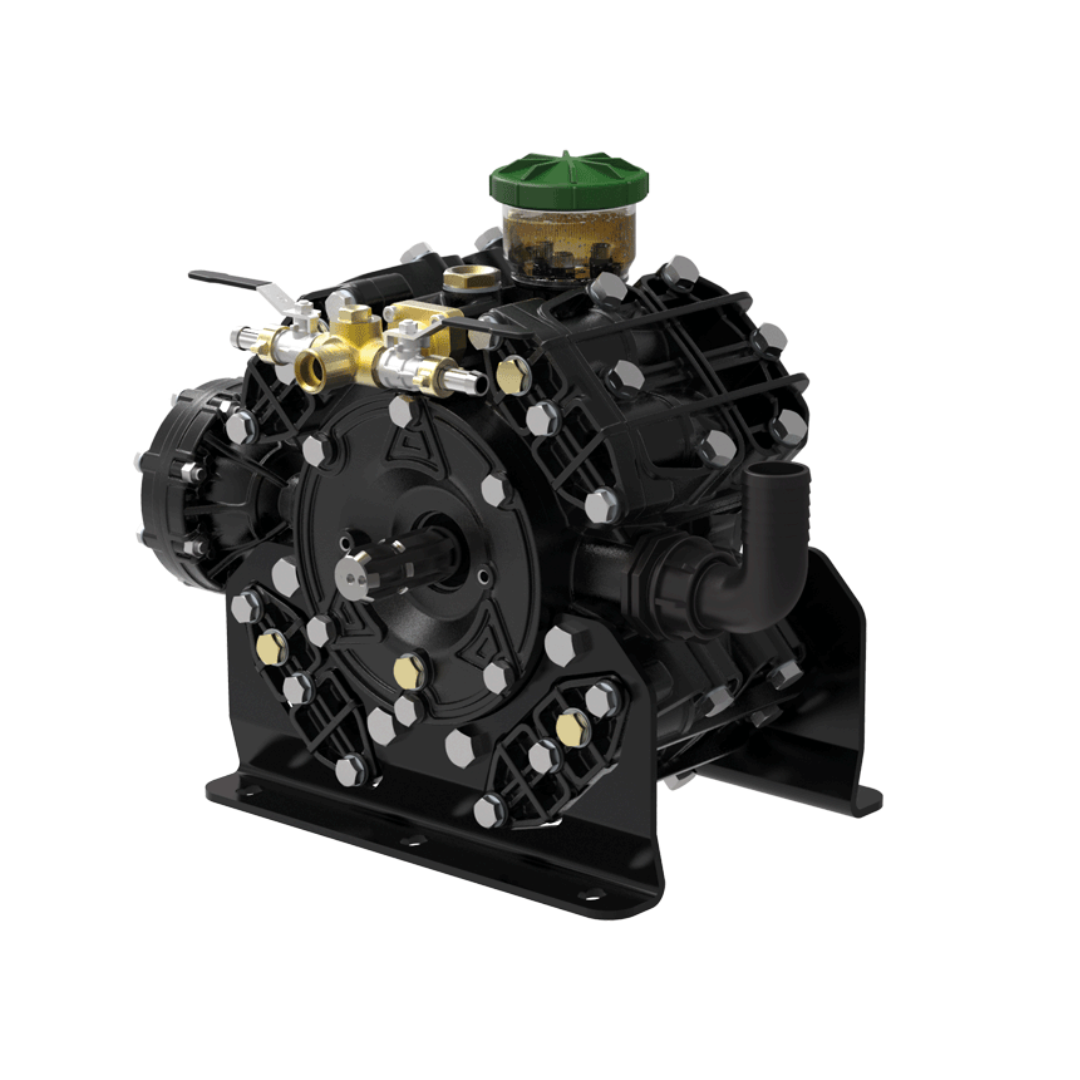

Udor DELTA 170 TS2C Diaphragm Pump with VRG 160 Regulator

(Replaced KAPPA-150CC)

DELTA 170 4-cylinder, high pressure diaphragm pumps are internally manifolded with anodized aluminum construction and anodized aluminum and stainless steel liquid handling parts. Includes mounting rails and 4900.09 control unit with pressure gauge.

DELTA 170 pumps are excellent choices for various horticultural, agricultural, lawn care, nursery, pest control, and turf spraying applications. They are also effectively used for aircraft de-icing, hydrostatic testing, and cleaning applications.

Download Product Manual

• Max flow: 47.3 gpm
• Max pressure: 725 psi
• Max RPM: 550
• Drive configuration: 1-3/8" 6-spline PTO thru-shaft
• Includes mounting rails and 4900.09 VRG 160 regulator
• Port sizes: 1-1/2" HB inlet, (2) ½" HB outlet, 1" HB bypass
• Pump shaft rotation: CW and CCW
• Diaphragms: 4 GREENTECH
• Housing: Anodized aluminum
• Max fluid temperature: 140°F
• Dimensions: 15.5"L x 21.5" W 16.5"H
• Weight: 110 lbs
