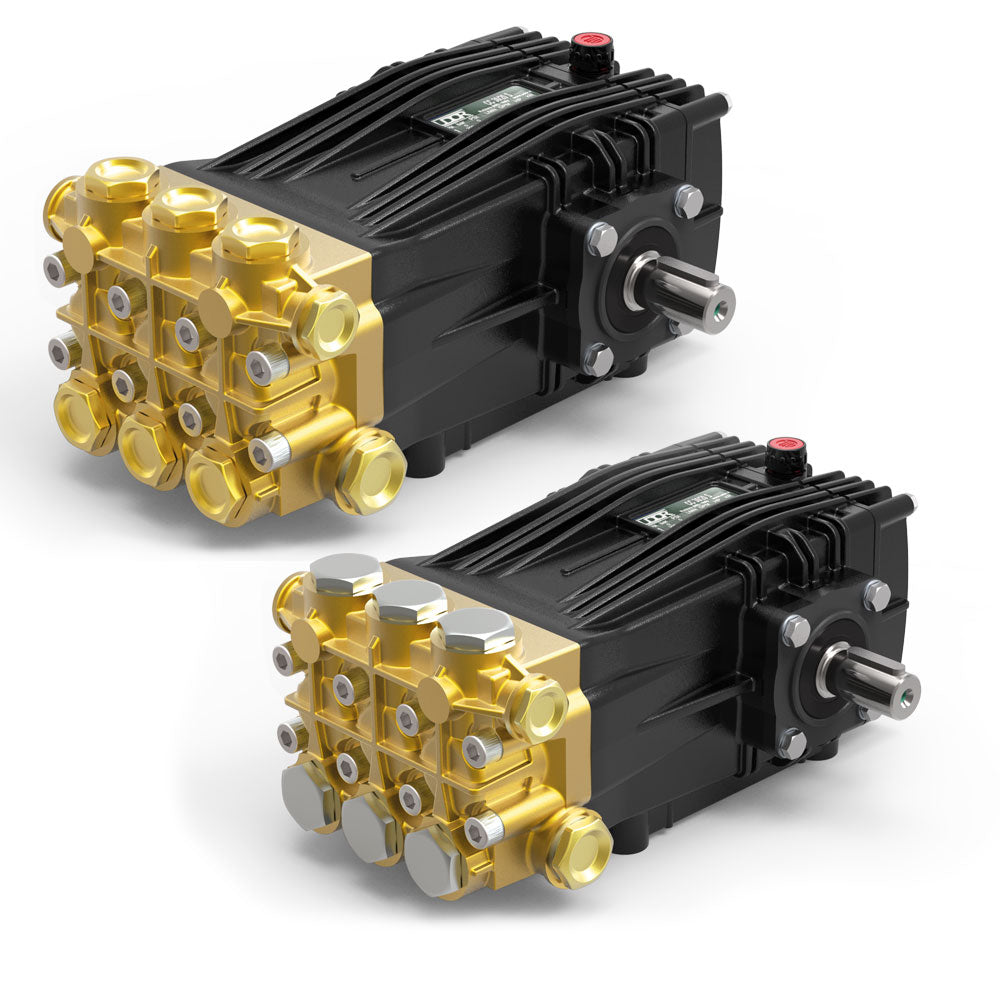

Udor CKC-50/20-SL Plunger Pump with 24mm Solid Shaft, Left-Handed Drive , 13.2 GPM, 2900 PSI

Udor CKC-50/20-SL Plunger Pump with 24mm Solid Shaft, Left-Handed Drive , 13.2 GPM, 2900 PSI

Brand:
Udor
Weight:
38.0 lb
Item #
CKC5020SL
Skip to product information
1 of 1

Udor CKC-50/20-SL Plunger Pump with 24mm Solid Shaft, Left-Handed Drive , 13.2 GPM, 2900 PSI

Udor CKC-50/20-SL Plunger Pump with 24mm Solid Shaft, Left-Handed Drive , 13.2 GPM, 2900 PSI

Brand:
Udor
Weight:
38.0 lb
Item #
CKC5020SL

Regular price $1,281.40
Sale price $1,281.40 Regular price List Price: $2,562.80

Earn 3,844 points with this purchase.

View full details

Collapsible content

Product Overview

Udor CKC 24mm Keyed Soil Shaft Plunger Pump

 Left-Handed Drive, 13.2 GPM, 2900 PSI

Manufacturer description

CKC Series super-duty plunger pumps include a wide range of models, with flow rates from 4.5 to 13.2 GPM and pressures up to 5,075 PSI. Drive options include gas engine gear reduction and hydraulic motor flange.

Applications include general pressure cleaning, sewer jetting, vehicle wash equipment, street cleaning, construction, hydro-excavation, and ultra-high-pressure firefighting.

Features

  • Left Side Shaft Orientation
  • Max Flow: 13.2 GPM
  • Max Pressure: 2900 PSI
  • Power Requirement: 25.6 HP Electric Power
  • Heavy Duty Brass Manifold with External and Internal Bracing
  • Heavy Duty Bronze or Aluminum Connecting Rods
  • Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
  • Reinforcing Ring on Inlet and Discharge Ports
  • Stainless Steel Piston Guides and Check Valves
  • Heat Treated Crank Shaft
  • Industrial Quality Tapered Roller Bearings
  • Deeper Back Cover for Increased Oil Capacity
  • 35 oz. Capacity Vented Oil Bath Crank Case
  • 3/4″ BSP-F Inlet. 3/8″ BSP-F Outlet
  • 3/4″ BSP-F Inlet. 1/2″ BSP-F Outlet: 10.0 GPM & Above
  • Max Fluid Temp, 160°F

Parts breakdown

Diagram

Diagram parts
