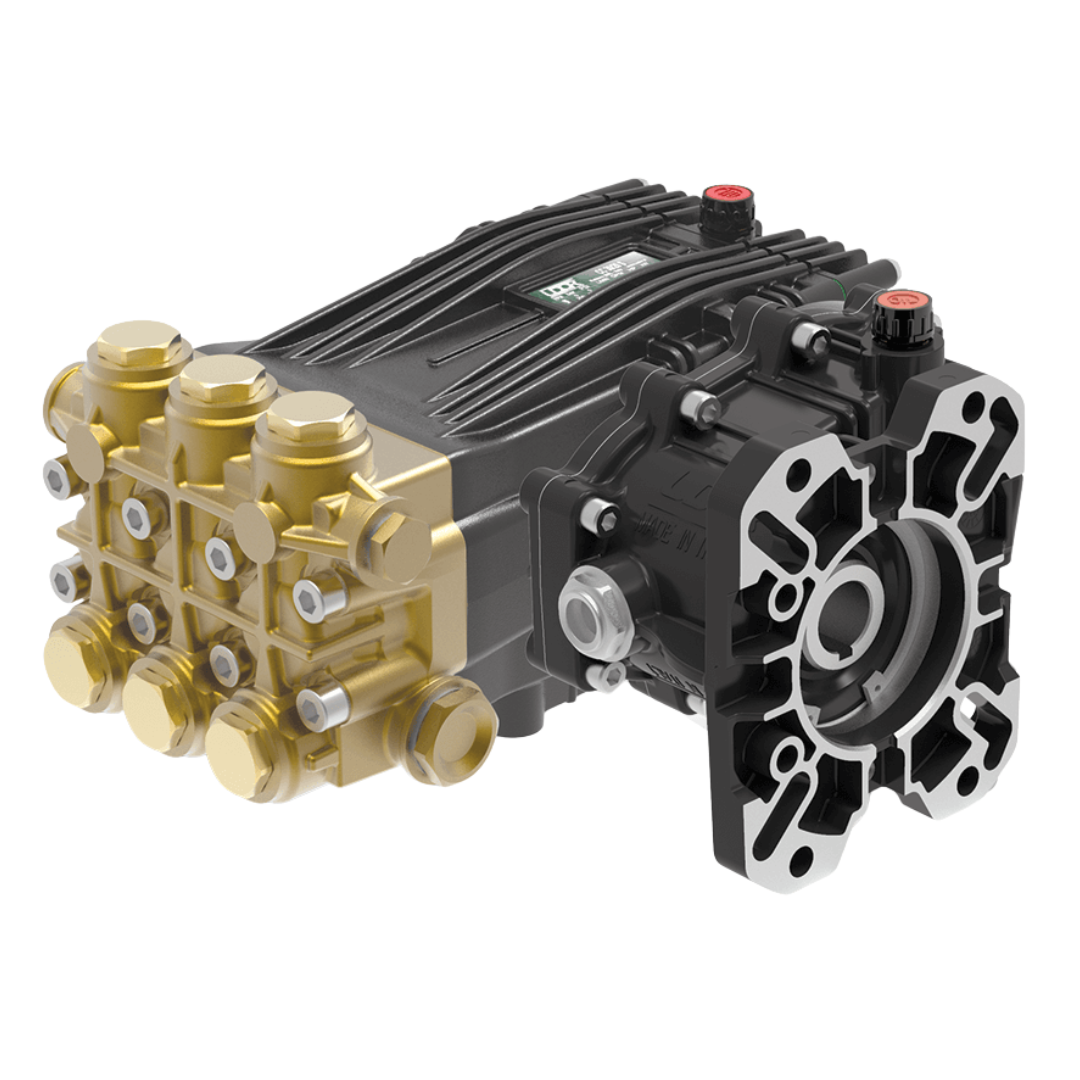

Udor CKC 30/24-GR1-1/8" Plunger Pump with 1-1/8" Shaft

(Replaced GKC 30/24 GR 1-1/8)

7.9 gpm, 3480 psi, 26 HP Gas Engine Power Requirement

**IMPORTANT PRODUCT INFORMATION**

This pump is equipped with a 1-1/8" hollow shaft. For a 1" hollow shaft configuration, please select model CKC3024GR. If you are unsure which configuration you need, please contact a customer service representative for assistance.

Download Product Manual

• Shaft: 1-1/8" Hollow
• Max Flow: 7.9 gpm
• Max Pressure: 3480 psi
• Heavy Duty Brass Manifold with External and Internal Bracing
• Heavy Duty Bronze or Aluminum Connecting Rods
• Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
• Reinforcing Ring on Inlet and Discharge Ports
• Stainless Steel Piston Guides and Check Valves
• Heat Treated Crank Shaft
• Industrial Quality Tapered Roller Bearings
• Deeper Back Cover for Increased Oil Capacity
• 34.5 oz. Capacity Vented Oil Bath Crank Case
• 3/4” BSP-F Inlet, 3/8” BSP-F Outlet – Less Than 10 GPM
• 3/4” BSP-F Inlet, 1/2” BSP-F Outlet – 10 GPM and Above
• Max Fluid Temp 160°F
